10330 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) GEAR CASE ASSEMBLY NO. 92-7735 Parts Diagram

Silver Series Walk-Behind Mower

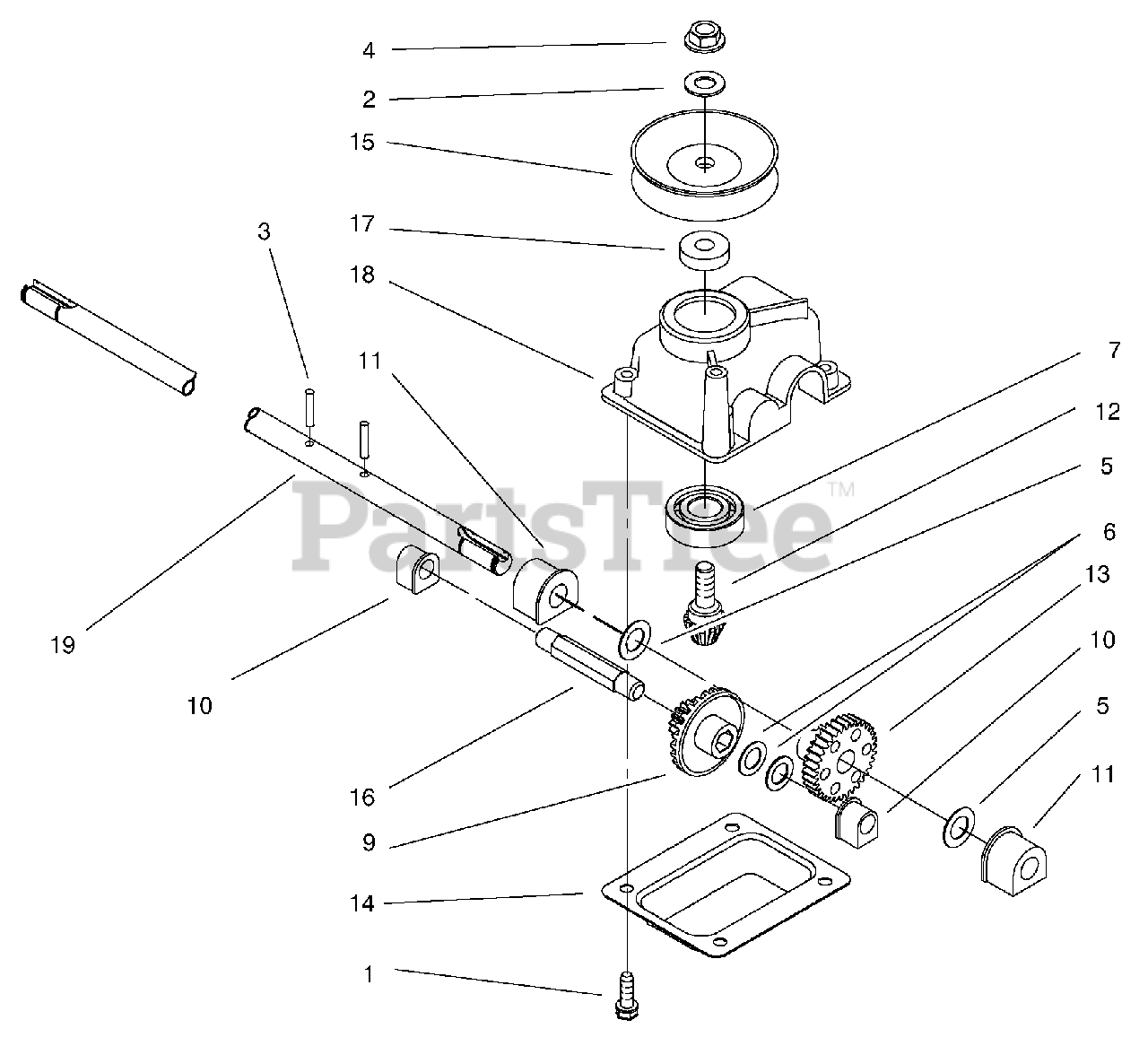

GEAR CASE ASSEMBLY NO. 92-7735 Parts Diagram

  • Title
1

Lawn-Boy 32144-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 3285-19

Pin-Groove

$2.99

$

In Stock, Qty 7

0

4

Lawn-Boy 3296-5

Nut-Lock, NI

$3.49

$

In Stock, Qty 8

0

5

$7.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 36-4791

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 38-7820

Bearing-Ball

$13.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 55-3760

Gear-Bevel
(Superseded to 104-7668)

$30.99

$

In Stock, only 1 left!

0

10

$5.99

$

In Stock, Qty 10

0

11

Lawn-Boy 60-8850

Bushing-Output

$7.49

$

In Stock, Qty 17

0

12

Lawn-Boy 60-8890

Gear-Bevel, Pinion
(Superseded to 104-7667)

$15.99

$

In Stock, only 1 left!

0

13

$46.99

$

In Stock, Qty 5

0

14

Lawn-Boy 614668-03

Cover-Gear Case

$7.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 614669

Half-Pulley

$21.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 614696

Shaft-Intermediate

$94.99

$

Usually ships in 3-6 days

0

17

$1.49

$

In Stock, only 3 left!

0

18

Lawn-Boy 92-7727

Gearcase
(Superseded to 104-7619)

$38.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 93-0239

Shaft-Output
(Superseded to 104-7670)

$122.99

$

Usually ships in 3-6 days

0
