10324 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) SHORT BLOCK ASSEMBLY NO. 95-7636 Parts Diagram

SilverPro Series Walk-Behind Mower

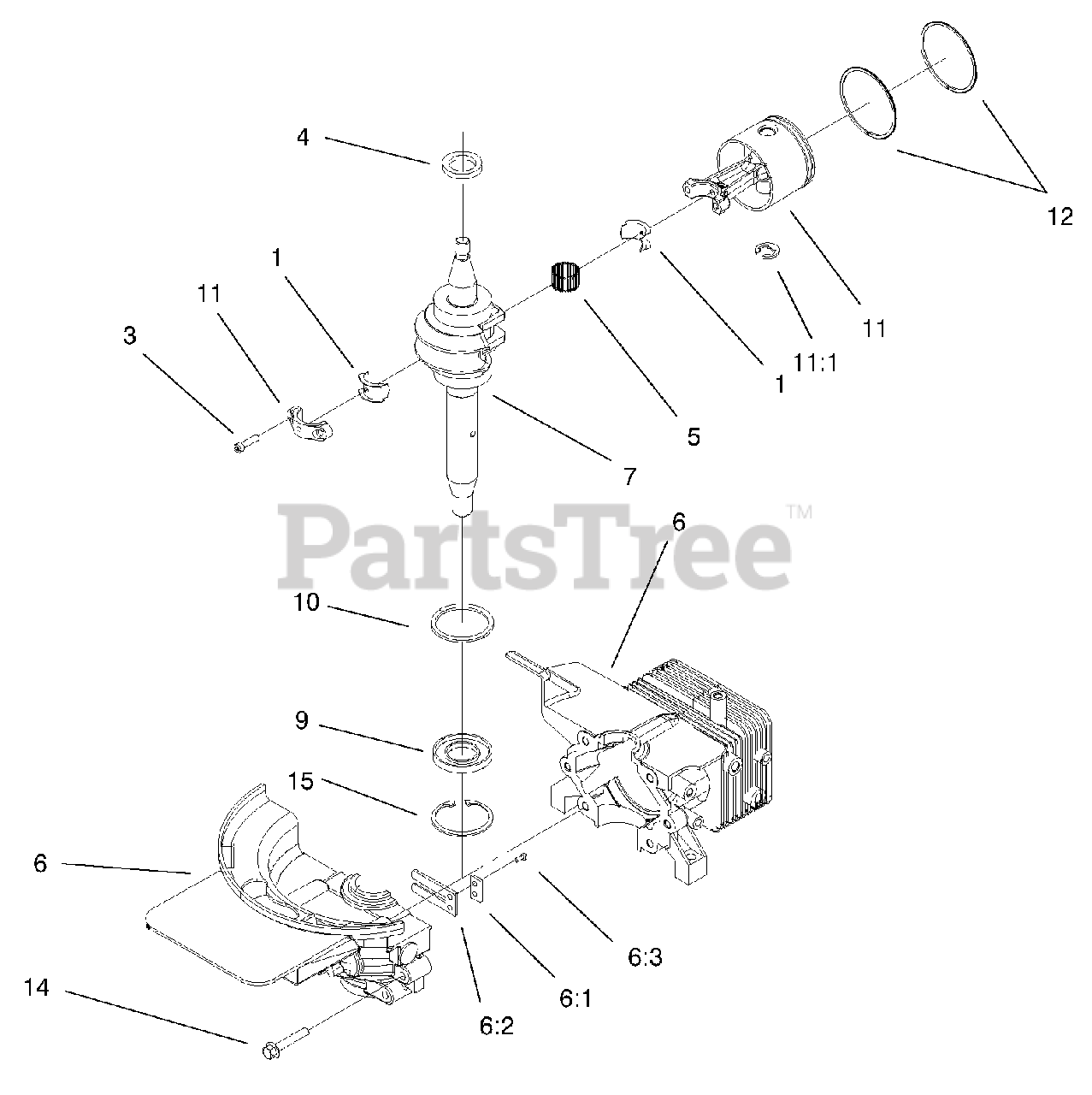

SHORT BLOCK ASSEMBLY NO. 95-7636 Parts Diagram

  • Title

1

Lawn-Boy 677982

Liner ASM

$46.99

$

In Stock, only 4 left!

0

2

Lawn-Boy 609790

Sealer-Loctite 50cc

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 610372

Sealer-Loctite 6cc

Note: Not illustrated

$27.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 611393

Screw-HSH

$22.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611396

Seal-Oil

$6.99

$

In Stock, Qty 19

0

5

Lawn-Boy 683911

Bearing-Needle

$23.99

$

In Stock, Qty 5

0

6

Lawn-Boy 95-7631

Cylinder And Crankcase ASM

$

$

Not available

6:1

Lawn-Boy 602587

Plate-Backup, Reed

$3.49

$

Usually ships in 3-6 days

0

6:2

Lawn-Boy 602588

Reed-Carburetor

$

$

Not available

6:3

Lawn-Boy 612872

Screw-HH

$2.49

$

In Stock, Qty 5

0

7

Lawn-Boy 99-2920

Crankshaft And Bearing ASM

$312.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 94-5764

Seal-Oil

$12.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 94-5765

Ring-Retaining

$

$

Not available

11

Lawn-Boy 95-7629

Connecting Rod ASM

$152.99

$

Usually ships in 3-6 days

0

11:1

Lawn-Boy 303712

Ring-Retaining

$3.49

$

In Stock, Qty 11

0

11:5

Lawn-Boy 100-2916

Piston And Rings ASM

Note: Not illustrated

$

$

Not available

12

Lawn-Boy 100-2917

Ring Set

$107.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 94-5781

Screw

$6.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 98-7046

Ring-Retaining
(Superseded to 32151-75)

$3.49

$

In Stock, Qty 19

0
