10324 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) GRASS BAGGING ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

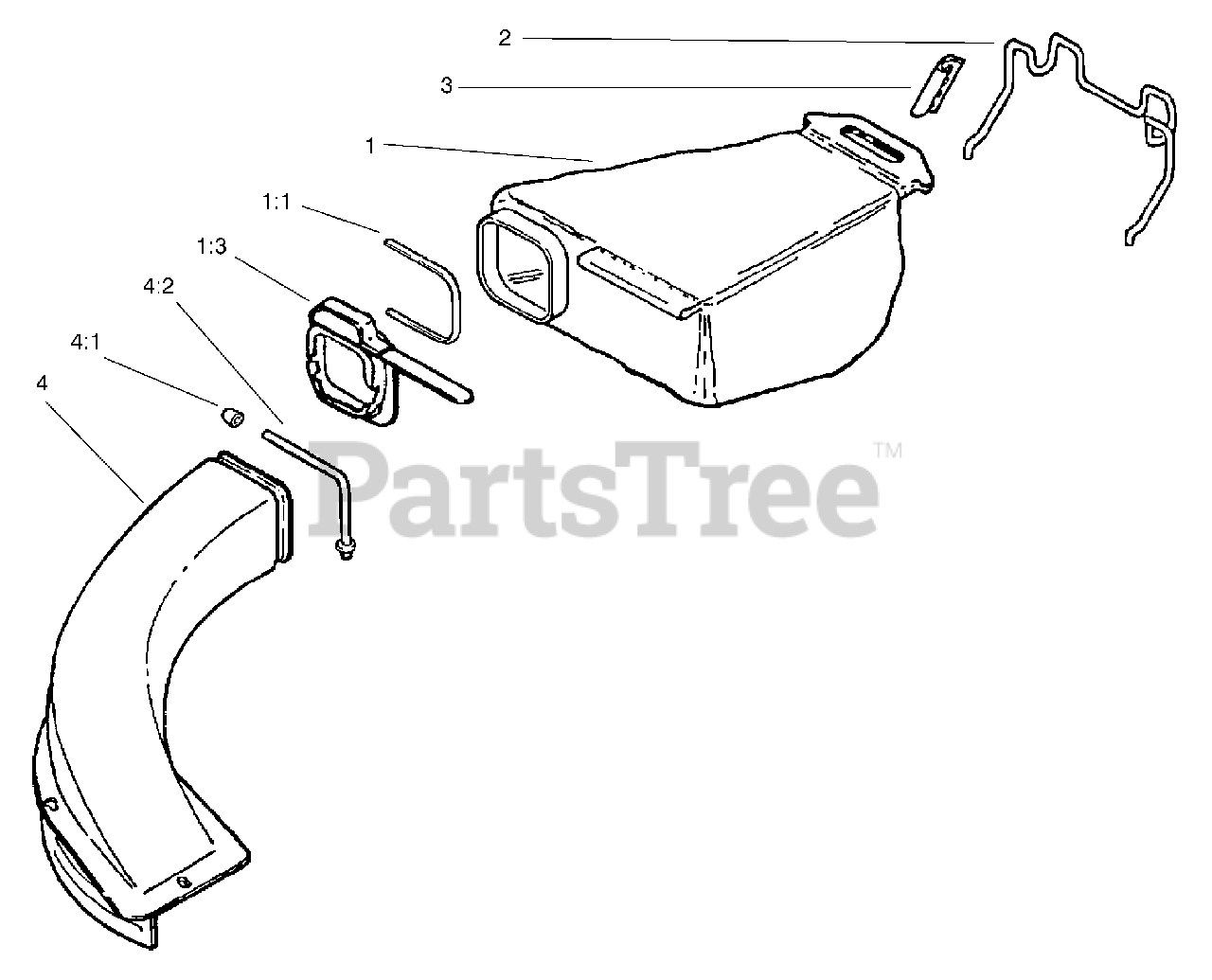

GRASS BAGGING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 100-6361

Bag & Adapter ASM

$240.99

$

Usually ships in 3-6 days

0

1:1

Lawn-Boy 614700

Tie Strap

$6.49

$

Usually ships in 3-6 days

0

1:3

$131.99

$

Usually ships in 3-6 days

0

1:2

Lawn-Boy 100-6362

Replacement Bag ASM

Note: Not illustrated

$159.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 613455

Wire Hanger,

$62.99

$

In Stock, only 4 left!

0

3

Lawn-Boy 613462-03

Clamp-Hanger

$

$

Not available

4

Lawn-Boy 684729

Chute & Support

$

$

Not available

4:1

Lawn-Boy 614589

Nut-Cap

$

$

Not available

4:2

Lawn-Boy 614591

Support-Chute

$15.99

$

Usually ships in 3-6 days

0
