10324 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) ENGINE ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

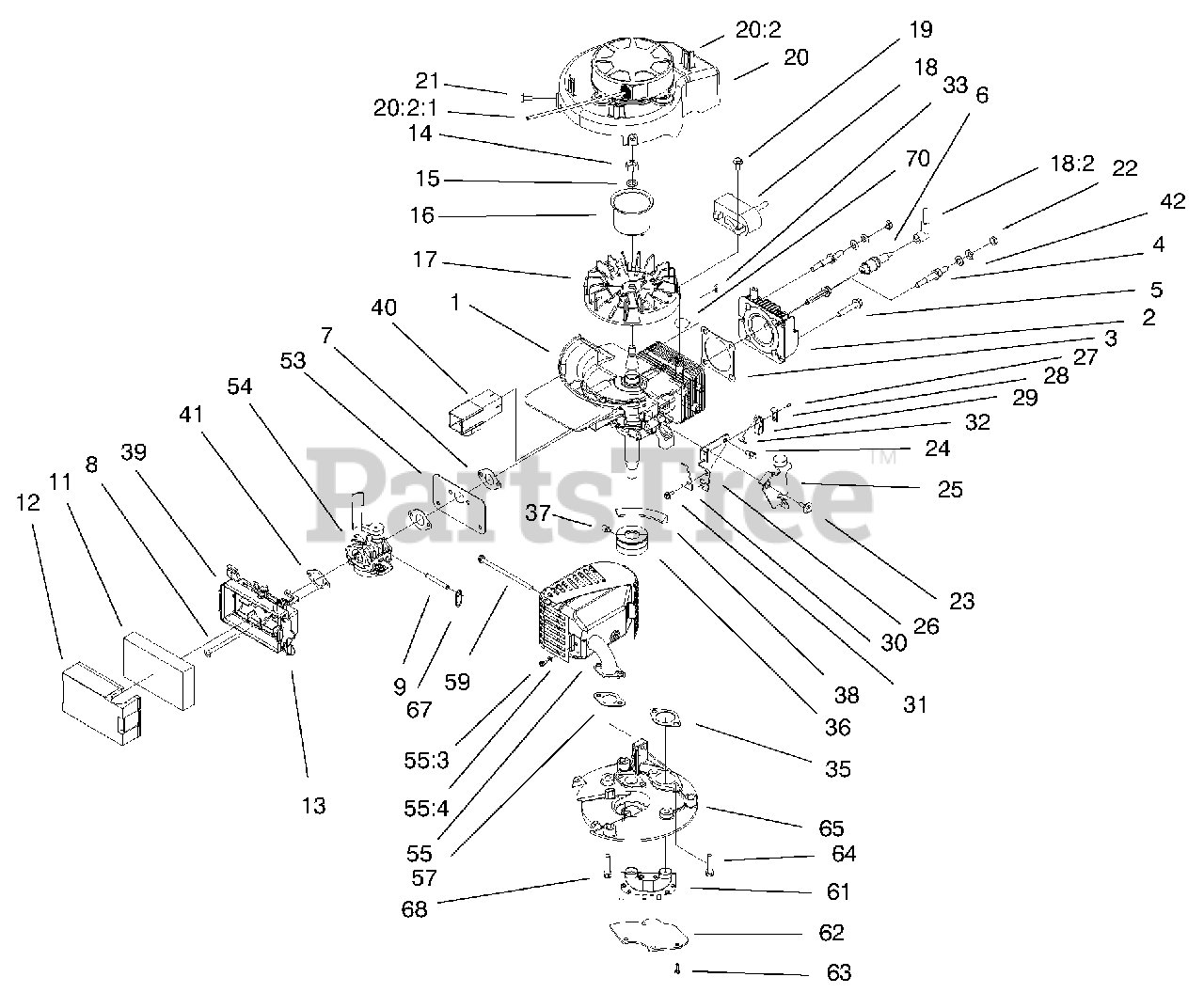

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 95-7636

Short Block Ay

$

$

Not available

2

Lawn-Boy 94-5776

Head-(Mach)

$69.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 94-5778

Gasket-Head

$11.99

$

In Stock, only 1 left!

0

$10.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 94-5780

Bolt-Head

$8.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 50-1170

Plug-Spark

$3.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-5795

Gasket-Intake

$2.99

$

In Stock, Qty 16

0

8

$5.49

$

In Stock, only 4 left!

0

9

Lawn-Boy 95-1861

Hose-Primer

$11.99

$

In Stock, Qty 6

0

11

Lawn-Boy 95-5574

Filter-Air
(Superseded to 107-4622)

$9.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 95-5577

Cover-Air Filter

$15.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 610383

Retainer-Fil.

$9.49

$

In Stock, Qty 20+

0

$3.49

$

In Stock, Qty 6

0

15

Lawn-Boy 316959

Washer-Lock
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 95-1786

Cup-Starter

$19.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-1866

Flywheel Machined

$164.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 92-1152

Ignition-Cd
(Superseded to 99-2916)

$90.99

$

In Stock, only 3 left!

0

18:2

Lawn-Boy 681678

Ht Lead&cover

$24.99

$

Usually ships in 3-6 days

0

18:2

Lawn-Boy 684698

Cover & Term. Ay

$7.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 613208

Screw-Cd Mtg

$2.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 95-1868

Shroud-Recoil

$

$

Not available

20:2

Lawn-Boy 99-6713

Recoil And Decal ASM

$

$

Not available

20:2:1

$34.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 700094

Screw-HH
(Superseded to 112-0167)

$6.49

$

In Stock, only 4 left!

0

$1.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 95-1870

Screw-Shoulder

$

$

Not available

24

Lawn-Boy 95-1871

Screw-HWH

$

$

Not available

25

Lawn-Boy 93-4312

Brake Plate Ay

$74.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 84-7820

Plate-Brake Mtg

$

$

Not available

27

Lawn-Boy 3290-459

Rivet-Plastic

$2.49

$

In Stock, only 1 left!

0

28

Lawn-Boy 92-2925

Strap-Insulation

$2.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 60-9010

Strap-Ground

$14.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 53-4690

Stop-Gr Strap

$4.49

$

In Stock, only 1 left!

0

31

Lawn-Boy 12-5450

Screw-Special

$9.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 98-7037

Wire-Lead

$

$

Not available

$5.49

$

In Stock, Qty 9

0

35

Lawn-Boy 95-1778

Gasket-Exhaust

$5.49

$

In Stock, Qty 9

0

36

$63.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 613227

Screw-Set
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

38

$18.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 95-5588

Base Ay-(Air Filter)

$29.99

$

In Stock, only 1 left!

0

40

$5.49

$

In Stock, only 1 left!

0

41

Lawn-Boy 95-7613

Gasket-Filter

$4.49

$

In Stock, Qty 20+

0

42

Lawn-Boy 3290-456

Washer-Belleville

$2.99

$

In Stock, Qty 19

0

53

Lawn-Boy 98-1388

Shield-Carb.

$9.49

$

Usually ships in 3-6 days

0

54

Lawn-Boy 98-7042

Carb. ASM
(Superseded to 107-4607)

$

$

Not available

55

Lawn-Boy 98-7048

Muffler And Guard ASM
(Superseded to 100-9514)

$279.99

$

Usually ships in 3-6 days

0

55:3

Lawn-Boy 98-1394

Screw-HWH

$4.49

$

In Stock, only 1 left!

0

55:4

Lawn-Boy 3254-1

Washer-Lock/Int

$0.99

$

Usually ships in 3-6 days

0

57

Lawn-Boy 98-1392

Gasket E

$6.49

$

In Stock, only 1 left!

0

59

Lawn-Boy 611228

Bolt-Console

$16.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 98-1557

Pipe-Transfer

$

$

Not available

62

Lawn-Boy 98-1591

Cover-Muffler

$12.99

$

In Stock, only 3 left!

0

63

Lawn-Boy 700822

Screw-HH

$1.99

$

In Stock, Qty 10

0

64

Lawn-Boy 322-17

Screw-HH

$3.99

$

In Stock, only 2 left!

0

65

Lawn-Boy 98-1384

Plate-Muffler

$

$

Not available

67

Lawn-Boy 95-7615

Hose-Retainer

$3.49

$

In Stock, only 4 left!

0

68

Lawn-Boy 322-7

Screw-HH

$1.49

$

In Stock, Qty 20+

0

70

Lawn-Boy 317893

Strap-Tie

$

$

Not available
