10324 C - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 230000001 - 230999999) (2003) ENGINE ASSEMBLY NO. 98-1393 Parts Diagram

SilverPro Series Walk-Behind Mower

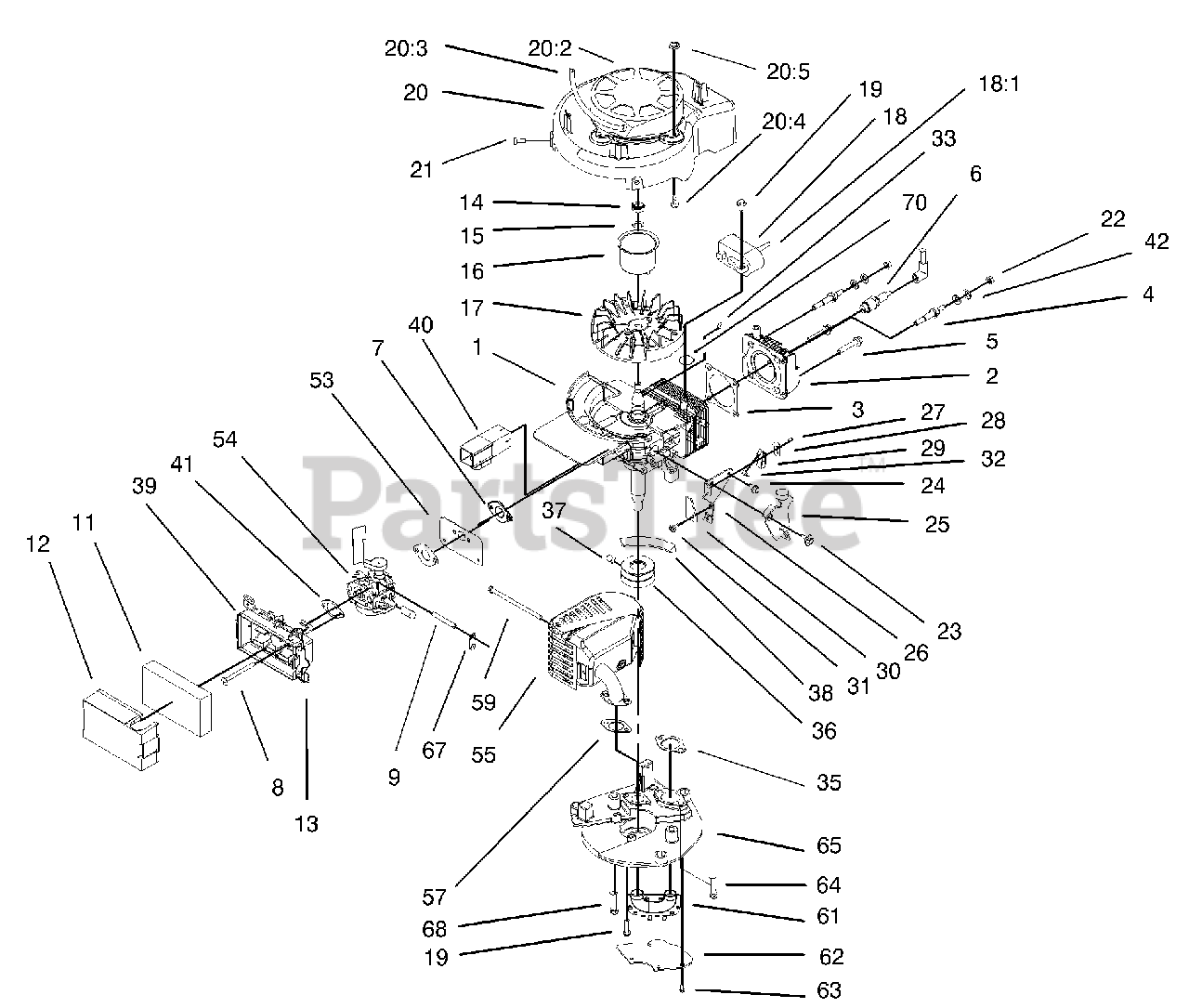

ENGINE ASSEMBLY NO. 98-1393 Parts Diagram

  • Title
1

Lawn-Boy 95-7636

SHORT BLOCK ASM

$

$

Not available

2

Lawn-Boy 94-5776

HEAD-CYLINDER

$69.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 94-5778

GASKET-HEAD

$11.99

$

In Stock, only 1 left!

0

$10.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 94-5780

SCREW-HWH

$8.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 50-1170

SPARK PLUG

$3.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-5795

GASKET-INTAKE

$2.99

$

In Stock, Qty 18

0

8

$5.49

$

In Stock, only 4 left!

0

9

Lawn-Boy 95-1861

HOSE-PRIMER

$11.99

$

In Stock, Qty 6

0

11

Lawn-Boy 95-5574

FILTER-AIR
(Superseded to 107-4622)

$9.49

$

In Stock, only 2 left!

0

12

Lawn-Boy 95-5577

COVER-FILTER, AIR

$15.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 610383

RETAINER-COVER, FILTER

$9.49

$

In Stock, Qty 20+

0

$3.49

$

In Stock, Qty 6

0

15

Lawn-Boy 316959

WASHER-LOCK
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 95-1786

CUP-STARTER

$19.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-1866

FLYWHEEL

$164.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 99-2911

MODULE-IGNITION

$95.99

$

In Stock, only 3 left!

0

18:2

Lawn-Boy 99-6719

LEAD-TENSION, HIGH

$64.99

$

Usually ships in 3-6 days

0

19

$2.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 95-1868

SHROUD-RECOIL

$

$

Not available

20:2

Lawn-Boy 99-6713

RECOIL ASM

$

$

Not available

20:3

Lawn-Boy 613773

ROPE-RECOIL

$34.99

$

Usually ships in 3-6 days

0

20:4

Lawn-Boy 3290-321

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

20:5

Lawn-Boy 3296-2

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 700094

SCREW-HH
(Superseded to 112-0167)

$6.49

$

In Stock, only 4 left!

0

$1.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 95-1870

SCREW-SHOULDER

$

$

Not available

24

Lawn-Boy 95-1871

SCREW-HWH

$

$

Not available

25

Lawn-Boy 93-4312

PLATE-BRAKE

$74.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 84-7820

PLATE-BRAKE

$

$

Not available

27

Lawn-Boy 3290-459

RIVET-PLASTIC

$2.49

$

In Stock, only 1 left!

0

28

Lawn-Boy 92-2925

STRAP-INSULATION

$2.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 60-9010

STRAP-GROUND

$14.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 100-2929

STOP-STRAP, GROUND

$

$

Not available

31

$9.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 98-7037

LEAD WIRE-SWITCH, BRAKE

$

$

Not available

$5.49

$

In Stock, Qty 9

0

35

Lawn-Boy 95-1778

GASKET-EXHAUST

$5.49

$

In Stock, Qty 9

0

36

$63.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 104-0214

SCREW-SET
(Superseded to 105-8875)

$11.99

$

Usually ships in 3-6 days

0

38

$18.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 95-5588

AIR BASE ASM

$29.99

$

In Stock, only 1 left!

0

40

Lawn-Boy 95-5578

TUNNEL-INLET

$5.49

$

In Stock, only 1 left!

0

41

Lawn-Boy 95-7613

GASKET-FILTER

$4.49

$

In Stock, Qty 20+

0

42

Lawn-Boy 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

51

Lawn-Boy 609790

SEALER-LOCTITE 50CC

Note: Not illustrated

$62.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 98-1388

SHIELD-CARB

$9.49

$

Usually ships in 3-6 days

0

54

Lawn-Boy 98-7042

CARBURETOR ASM
(Superseded to 107-4607)

$

$

Not available

54

Carburetor Asm

$

$

Not available

55

Lawn-Boy 100-9514

MUFFLER AND GUARD

$279.99

$

Usually ships in 3-6 days

0

57

$6.49

$

In Stock, only 1 left!

0

59

Lawn-Boy 611228

BOLT-CONSOLE

$16.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 98-1557

PIPE-TRANSFER

$

$

Not available

62

Lawn-Boy 98-1591

COVER-MUFFLER

$12.99

$

In Stock, only 3 left!

0

63

Lawn-Boy 700822

SCREW-HH

$1.99

$

In Stock, Qty 10

0

64

Lawn-Boy 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

65

Lawn-Boy 98-1384

PLATE-MUFFLER

$

$

Not available

67

Lawn-Boy 95-7615

HOSE-RETAINER

$3.49

$

In Stock, only 4 left!

0

68

Lawn-Boy 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

70

Lawn-Boy 317893

STRAP-TIE

$

$

Not available
