10324 C - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 220000001 - 220999999) (2002) GRASS BAGGING ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

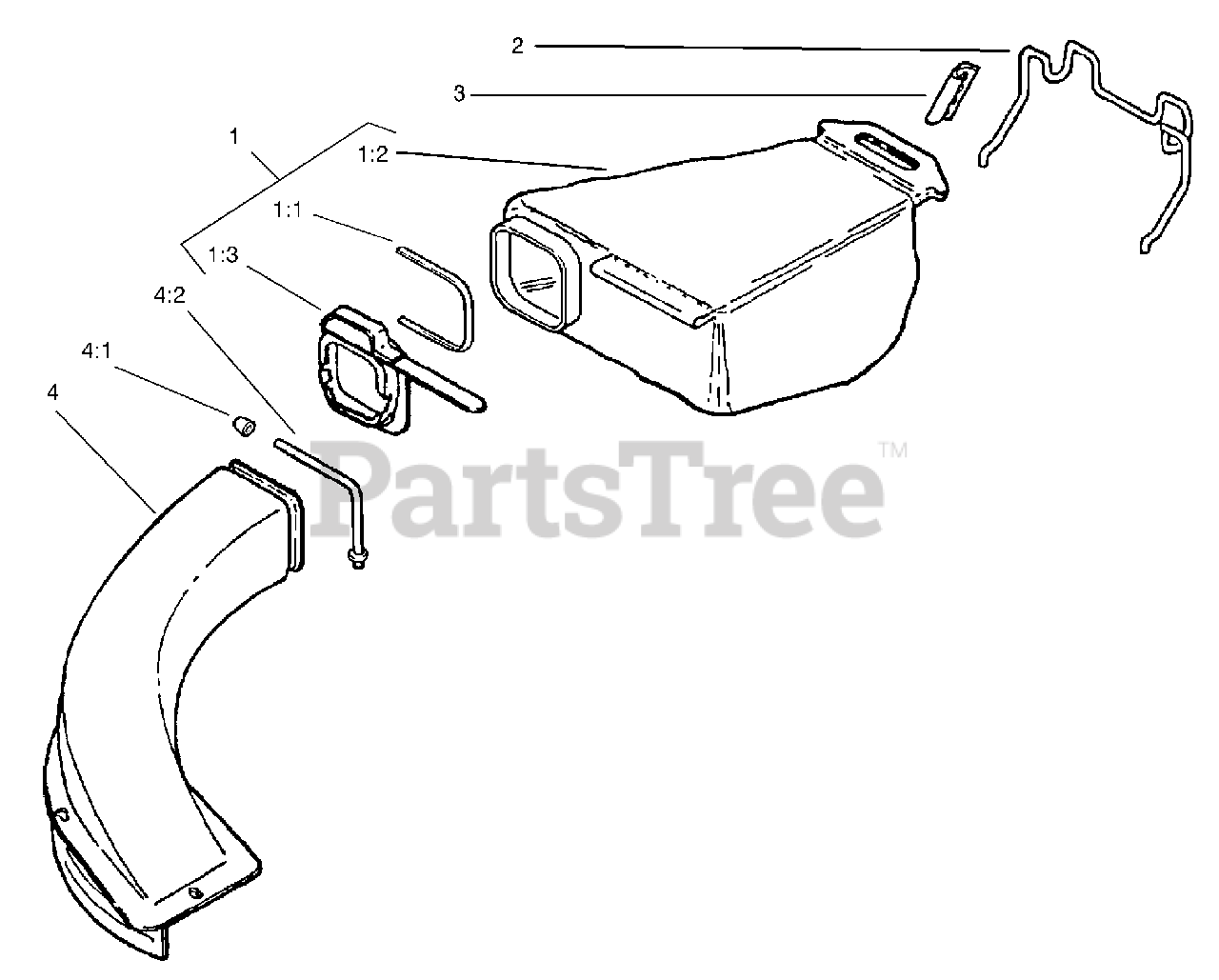

GRASS BAGGING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 100-6361

Bag & Adapter ASM. (only on: 10324, 10324c)

$

$

Not available

1:1

Lawn-Boy 614700

Strap-Tie (only on: 10324, 10324c)

$7.49

$

Usually ships in 3-6 days

0

1:2

Lawn-Boy 100-6362

Replacement Bag ASM. (only on: 10324, 10324c)

$164.99

$

Usually ships in 3-6 days

0

1:3

Lawn-Boy 684727-03

Adapter (only on: 10324, 10324c)

$153.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 613455

Hanger-Wire (only on: 10324, 10324c)

$73.99

$

In Stock, only 4 left!

0

3

Lawn-Boy 613462-03

Clamp-Hanger (only on: 10324, 10324c)

$

$

Not available

4

Lawn-Boy 684729

Chute & Support ASM (only on: 10324, 10324c)

$

$

Not available

4:1

Lawn-Boy 614589

Nut-Cap (only on: 10324, 10324c)

$

$

Not available

4:2

Lawn-Boy 614591

Support-Chute (only on: 10324, 10324c)

$

$

Not available
