10323 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HOUSING ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

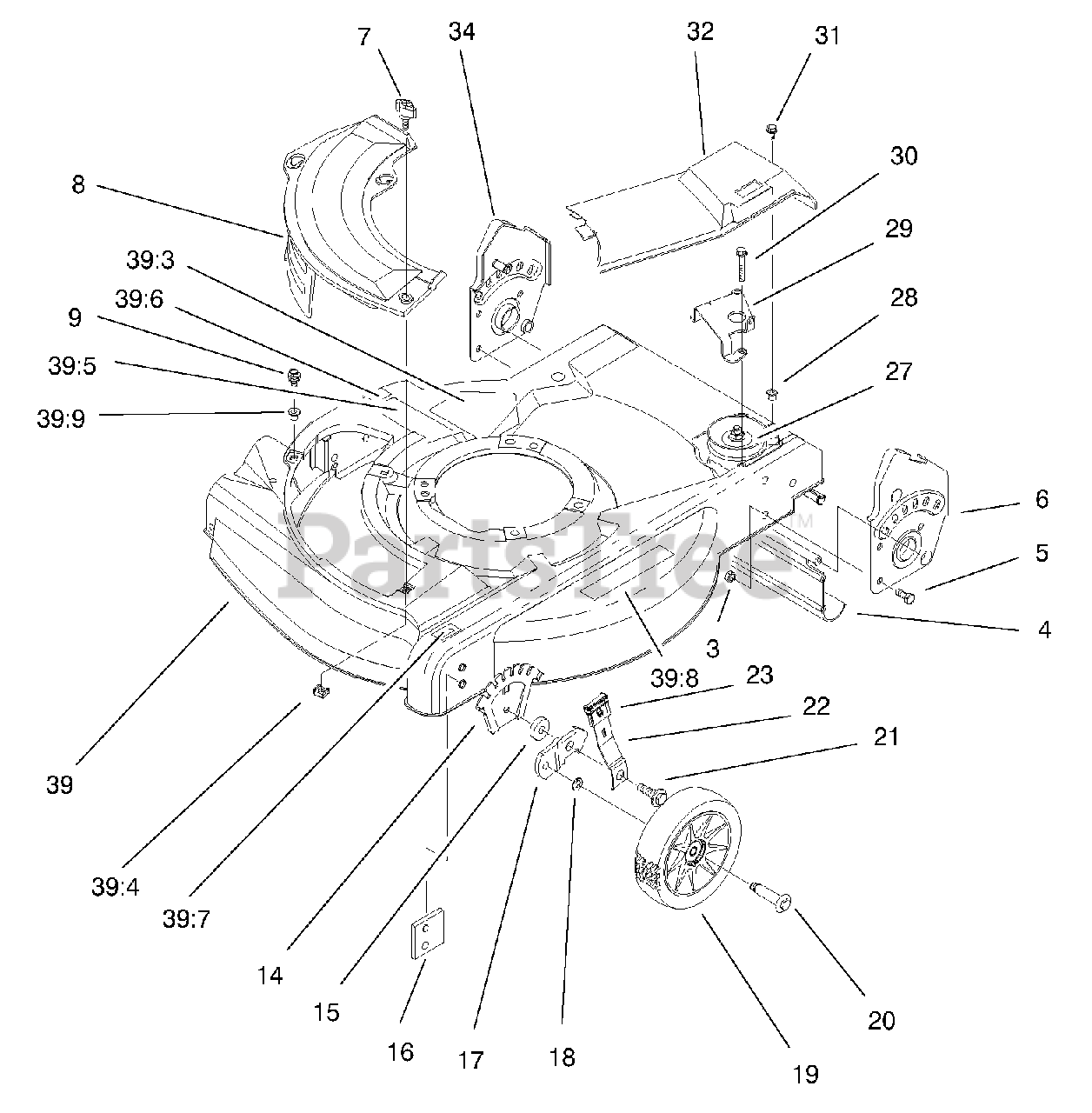

HOUSING ASSEMBLY Parts Diagram

  • Title
3

Lawn-Boy 3296-29

Nut-Lock NI

$2.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 92-8647

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 322-3

Screw-HH

$0.99

$

In Stock, Qty 13

0

6

Lawn-Boy 92-7724

LH Handle Brkt ASM
(Superseded to 105-8604)

$

$

Not available

$5.49

$

In Stock, Qty 15

0

8

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

9

Lawn-Boy 614677

Screw-Sems

$4.49

$

In Stock, Qty 12

0

14

Lawn-Boy 92-4881-03

Plate-Hght Adj

$29.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 92-4890

Washer-Wheel

$8.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 92-7731

Plate-Baffle

$10.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 95-7403-03

Bracket-Wheel Ht Adj

$

$

Not available

18

Lawn-Boy 40-1940

Washer-Wheel Bolt

$2.99

$

In Stock, Qty 18

0

19

Lawn-Boy 684776

6" Wheel & Tire ASM

$37.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 92-1099

Bolt-Shoulder 6" Wheel

$8.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 6

0

22

Lawn-Boy 614687

Arm-Front Spring

$21.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 92-1008

Knob-Height Adj Lever

$14.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 95-7412

Assembly-Gear Case
(Superseded to 104-7672)

$342.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 605120

Grommet

$4.49

$

In Stock, Qty 9

0

29

Lawn-Boy 95-1732-03

Guide-Transmission

$11.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 65-5221

Screw-Thread Forming

$2.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 92-9665

Screw-Pth

$6.99

$

In Stock, Qty 20+

0

32

Lawn-Boy 95-7413

Cover-Drive

$27.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 92-7723

RH Handle Brkt ASM
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 98-4472

ASM-Housing/Baffle Sp

$

$

Not available

39:3

Lawn-Boy 43-8480

Decal-Danger

$6.99

$

In Stock, Qty 6

0

39:4

Lawn-Boy 613765

Nut-Cage

$9.99

$

In Stock, Qty 9

0

39:5

Lawn-Boy 99-6018

Decal-Warning

$2.99

$

Usually ships in 3-6 days

0

39:6

Lawn-Boy 92-2914

Decal-HOC R

$

$

Not available

39:7

Lawn-Boy 92-2915

Decal-HOC L

$6.49

$

Usually ships in 3-6 days

0

39:8

Lawn-Boy 93-7250

Decal-Instruction

$15.99

$

In Stock, only 2 left!

0

39:9

Lawn-Boy 94-1610

Grommet-Plastic

$1.49

$

In Stock, Qty 7

0

Lawn-Boy 95-7052

Plate-Chute Opening

$36.99

$

In Stock, only 1 left!

0
