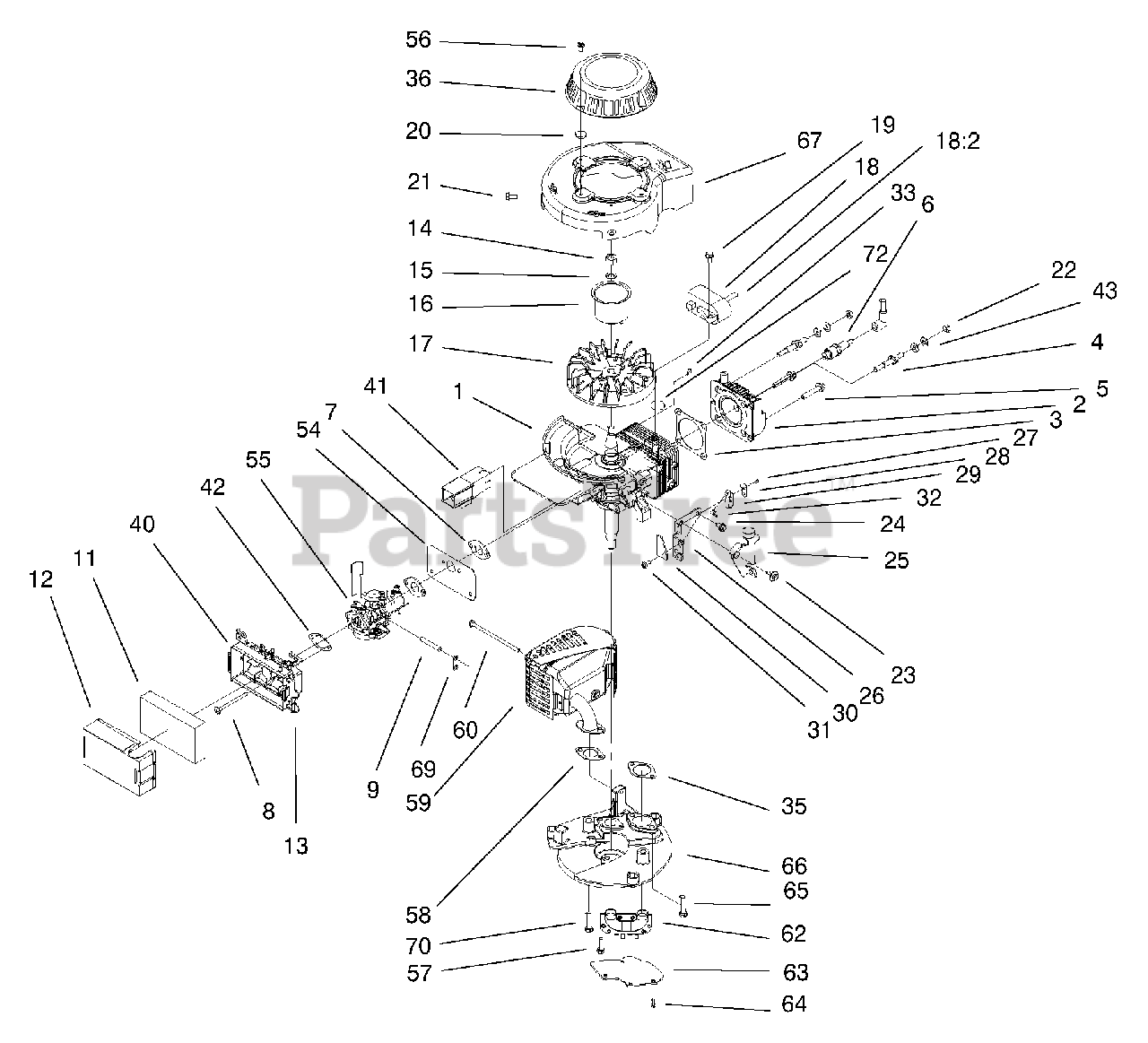

10323 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 95-7636

E-S/Block Ser.

$

$

Not available

2

Lawn-Boy 94-5776

Head-(Mach)

$60.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 94-5778

Gasket-Head

$10.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 94-5779

Stud

$9.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 94-5780

Bolt-Head

$8.49

$

In Stock, only 1 left!

0

6

Lawn-Boy 50-1170

Plug-Spark

$3.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-5795

Gasket-Intake

$2.99

$

In Stock, Qty 18

0

8

Lawn-Boy 612507

Screw

$4.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 44-3170

Primer Hose

$9.49

$

In Stock, only 1 left!

0

11

Lawn-Boy 95-5574

Filter-Air
(Superseded to 107-4622)

$7.99

$

In Stock, Qty 6

0

12

Lawn-Boy 95-5577

Cover-Air Filter

$15.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 610383

Retainer-Fil.

$7.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 130743

Nut

$2.99

$

In Stock, Qty 6

0

15

Lawn-Boy 316959

Washer-Lock
(Superseded to 325-36)

$8.49

$

In Stock, Qty 16

0

16

Lawn-Boy 612949

Hub Starter

$42.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 95-1866

Flywheel-Machined

$143.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 99-2916

Ignition-Cd

$78.99

$

In Stock, only 3 left!

0

18:2

Lawn-Boy 681678

Ht Lead&cover

$23.99

$

Usually ships in 3-6 days

0

18:2

Lawn-Boy 684698

Cover & Term. Ay

$6.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 613208

Screw-Cd Mtg

$1.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 98-4478

Spacer

$11.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 321-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 146501

Nut

$1.99

$

In Stock, only 3 left!

0

23

Lawn-Boy 95-1870

Screw-Shoulder

$9.49

$

Usually ships in 3-6 days

0

24

Lawn-Boy 95-1871

Screw-HWH

$0.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 93-4312

Brake Plate Ay

$64.99

$

In Stock, only 2 left!

0

26

Lawn-Boy 84-7820

Plate-Brake Mtg

$12.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 3290-459

Rivet-Plastic

$1.99

$

In Stock, only 1 left!

0

28

Lawn-Boy 92-2925

Strap-Insulation

$1.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 60-9010

Strap-Ground

$11.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 100-2929

Stop-Gr Strap

$

$

Not available

31

Lawn-Boy 12-5450

Screw-Special

$8.99

$

In Stock, only 2 left!

0

32

Lawn-Boy 98-7037

Wire-Lead

$

$

Not available

33

Lawn-Boy 607199

Key

$4.99

$

In Stock, Qty 9

0

35

Lawn-Boy 95-1778

Gasket-Exhaust

$4.99

$

In Stock, Qty 9

0

36

Lawn-Boy 100-2908

Starter Assy Sm
(Superseded to 99-6713)

$

$

Not available

40

Lawn-Boy 95-5588

Base Ay-(Air Filter)

$25.99

$

In Stock, only 1 left!

0

41

Lawn-Boy 95-5578

Tunnel

$4.99

$

In Stock, only 1 left!

0

42

Lawn-Boy 95-7613

Gasket-Filter

$3.99

$

In Stock, Qty 20+

0

43

Lawn-Boy 3290-456

Washer-Belleville

$2.99

$

In Stock, Qty 19

0

54

Lawn-Boy 98-1388

Shield-Carb.

$7.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 98-7042

Carburetor ASM With Gaskets
(Superseded to 107-4607)

$

$

Not available

56

Lawn-Boy 98-4484

Screw Sems

$7.49

$

In Stock, Qty 5

0

57

Lawn-Boy 613208

Screw-Cd Mtg

$1.99

$

In Stock, only 2 left!

0

58

Lawn-Boy 98-1392

Gasket

$5.49

$

In Stock, only 1 left!

0

59

Lawn-Boy 100-9514

Muffler And Guard ASM

$242.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 611228

Bolt-Console

$16.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 98-1557

Pipe-Transfer

$

$

Not available

63

Lawn-Boy 98-1591

Cover-Muffler

$10.99

$

In Stock, only 3 left!

0

64

Lawn-Boy 700822

Screw-HH

$1.99

$

In Stock, Qty 10

0

65

Lawn-Boy 322-17

Screw-HH

$3.99

$

In Stock, only 2 left!

0

66

Lawn-Boy 98-1383

Mtg. Plate

$108.99

$

In Stock, only 2 left!

0

67

Lawn-Boy 98-4467

Assembly-Shroud

$194.99

$

Usually ships in 3-6 days

0

69

Lawn-Boy 95-7615

Hose-Retainer

$2.99

$

In Stock, only 4 left!

0

70

Lawn-Boy 613233

Screw H.hd.wash

$3.99

$

Usually ships in 3-6 days

0

72

Lawn-Boy 317893

Strap-Tie

$

$

Not available
