10323 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) REAR AXLE ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

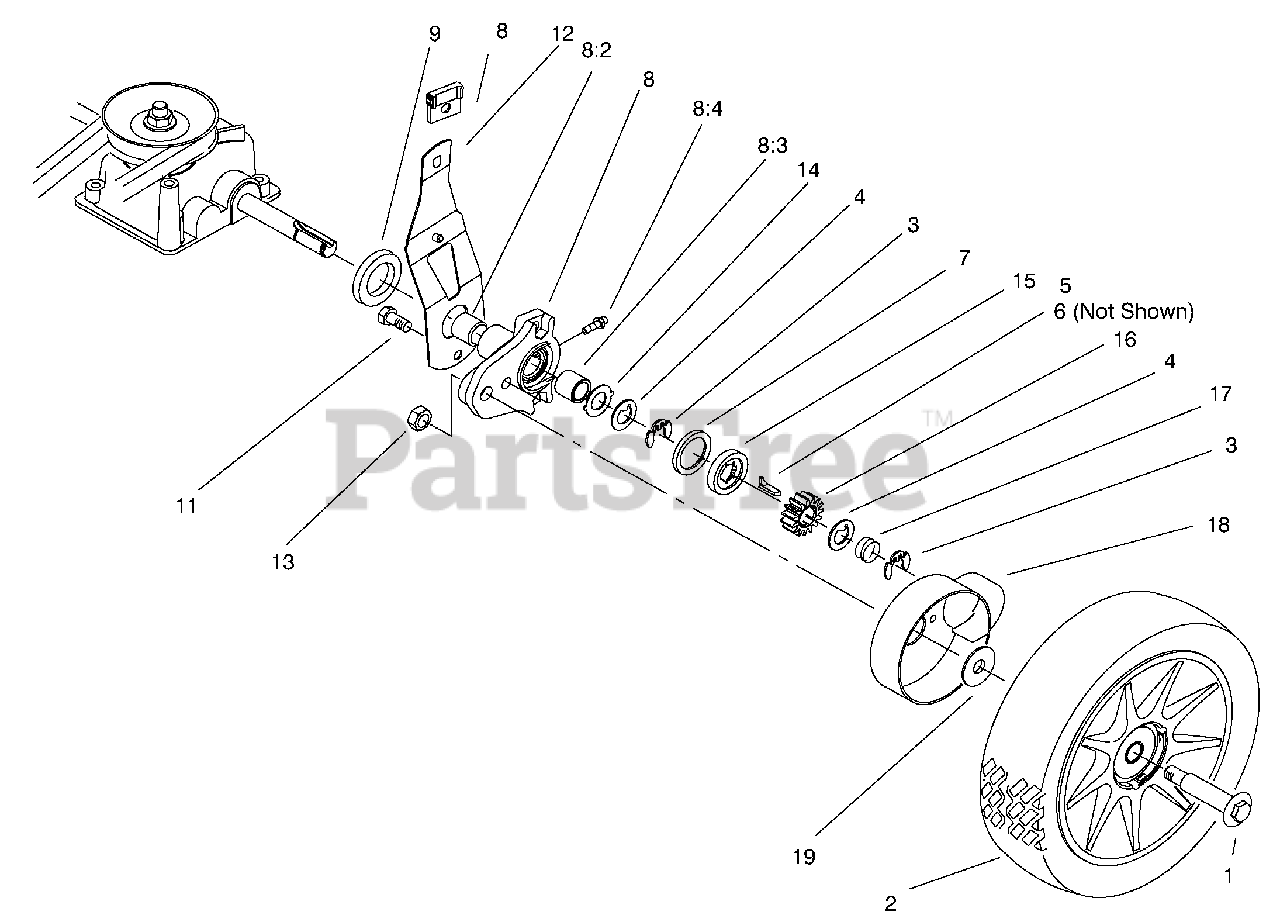

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 7

0

2

Lawn-Boy 92-1042

8" Wheel & Tire ASM.

$55.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 65-2720

Klip Ring-Special

$1.49

$

In Stock, Qty 6

0

4

Lawn-Boy 65-4740

Washer-Keyed Thrust

$2.49

$

In Stock, only 2 left!

0

5

Lawn-Boy 66-6050

Key-Rocking LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

6

Lawn-Boy 66-6040

Key-Rocking
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 12

0

7

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 5

0

8

Lawn-Boy 92-7746

ASM-Hgt Adj Arm, Rear

$50.99

$

In Stock, only 2 left!

0

8:2

$6.49

$

In Stock, only 4 left!

0

8:3

$4.99

$

In Stock, Qty 6

0

8:1

Lawn-Boy 302-56

Fitting-Zerk

$5.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 614447

Spacer-Axle Shaft

$3.49

$

In Stock, Qty 20+

0

11

$1.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 92-1004

Spring Arm ASM-Rear

$

$

Not available

13

Lawn-Boy 610358

Nut-Jam, Locking

$2.99

$

In Stock, only 2 left!

0

14

Lawn-Boy 65-4730

Washer-Pivot Arm

$2.49

$

In Stock, only 3 left!

0

15

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 65-4750

Pinion-Gear, 15t

$11.99

$

In Stock, Qty 18

0

17

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 94-1609

Cover-Wheel

$10.99

$

In Stock, Qty 5

0

19

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 20+

0
