10323 - Lawn-Boy SilverPro Series Walk-Behind Mower (SN: 009900001 - 009999999) (1999) GEAR CASE ASSEMBLY Parts Diagram

SilverPro Series Walk-Behind Mower

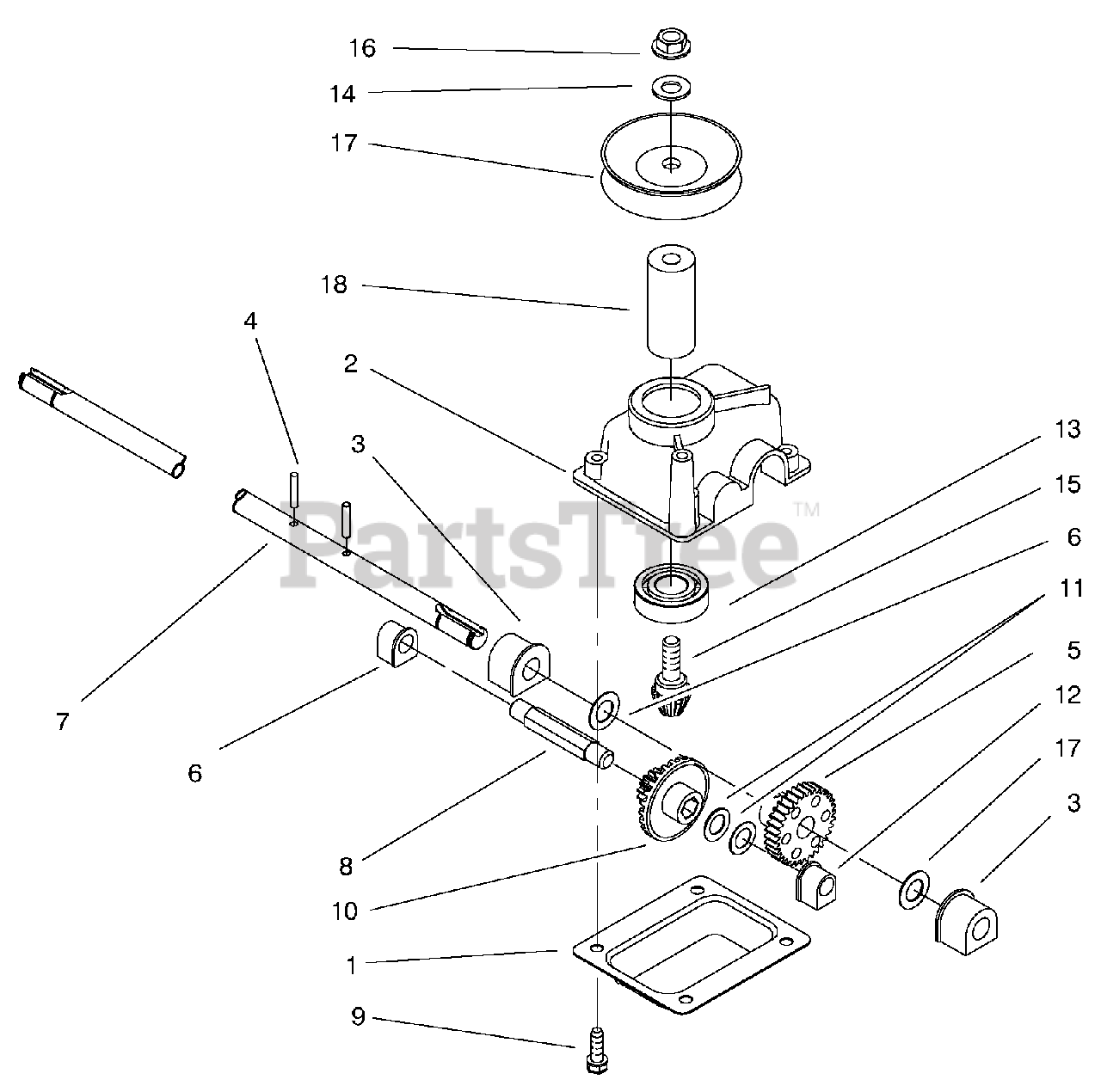

GEAR CASE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614668

Cover-Gear Case
(Superseded to 614668-03)

$9.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-7727

Gearcase-Upper Ss
(Superseded to 104-7619)

$47.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 60-8850

Bushing-Output

$8.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 3285-19

Pin-Spirol

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 614596

Gear-34t

$58.99

$

In Stock, Qty 5

0

6

Lawn-Boy 36-4780

Washer-Thrust

$7.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 93-0239

Shaft-Output
(Superseded to 104-7670)

$147.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 614696

Shaft-Intermediate

$115.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 32144-4

Screw-TAP

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 55-3760

15 T Pinion
(Superseded to 104-7668)

$37.99

$

In Stock, Qty 14

0

11

Lawn-Boy 36-4791

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 60-8750

Bushing

$7.49

$

In Stock, Qty 8

0

13

Lawn-Boy 38-7820

Bearing-Ball

$14.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 3256-24

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 95-1731

Gear-Pinnion
(Superseded to 104-7669)

$46.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 3296-5

Nut-Lock

$3.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 614669

Pulley-Half

$24.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 95-5550

Spacer-pulley

$

$

Not available
