10321 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

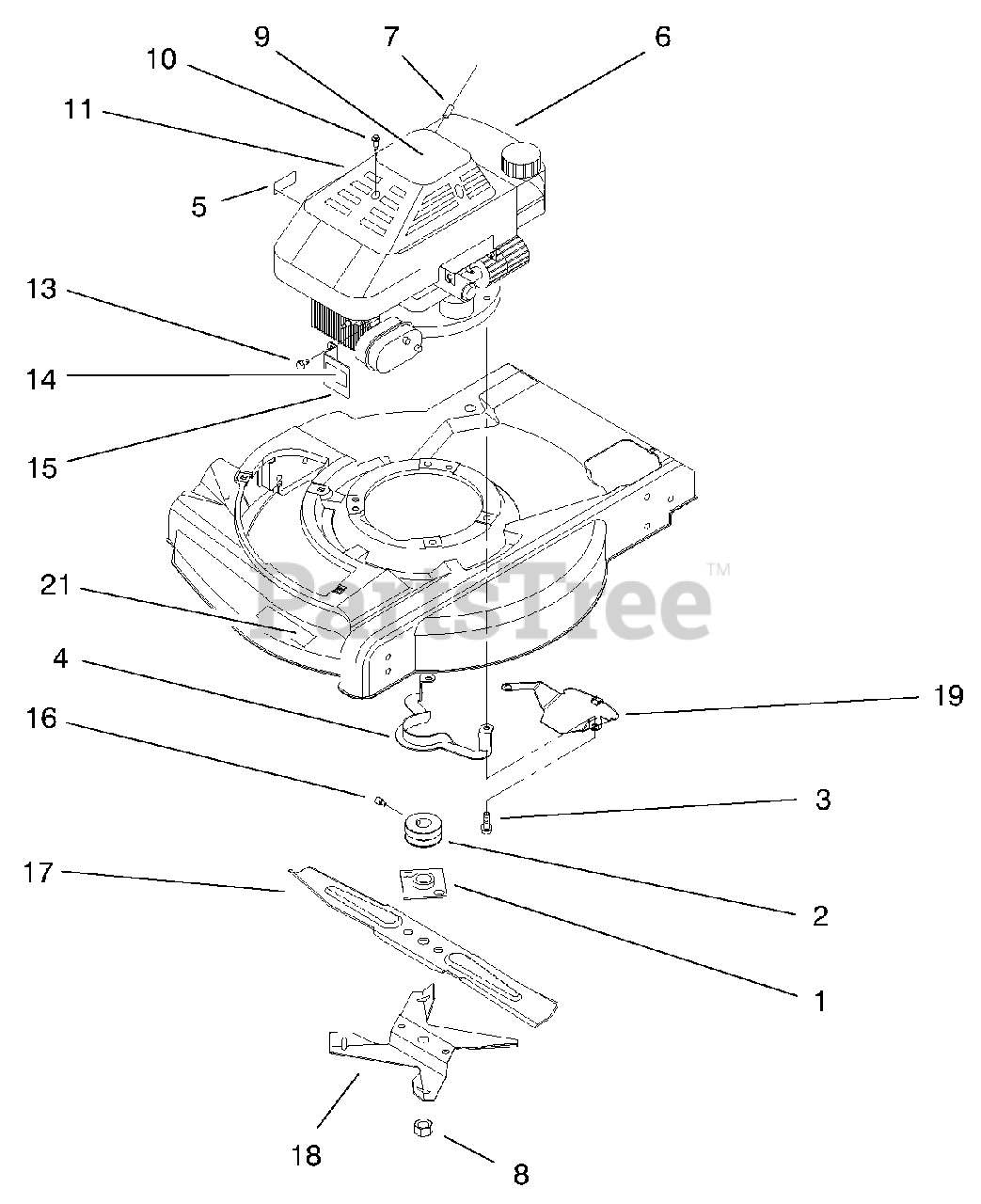

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677525

ASM-Plate & Collar

$23.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 92-9575

Pulley-Engine

$93.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 95-1726

Screw-Engine Mount

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 92-1024

Guide-Belt
(Superseded to 92-1024-03)

$

$

Not available

5

Lawn-Boy 92-4851

Decal-Oil Instruction

$1.99

$

In Stock, only 1 left!

0

6

ASM-Engine

$

$

Not available

7

Lawn-Boy 92-1701

Rope-Stop
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 95-7449

Decal-Shroud

$

$

Not available

10

Lawn-Boy 92-4852

Screw-Recoil Cover

$

$

Not available

11

Lawn-Boy 92-4854

Cover-Starter

$26.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 32144-85

Screw-HH

$1.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 65-2690

Decal-Hot Surface

$5.49

$

In Stock, only 4 left!

0

15

Lawn-Boy 94-6066

Guard-Muffler
(Superseded to 94-6066-03)

$

$

Not available

16

Lawn-Boy 613227

Screw-Set
(Superseded to 105-8875)

$10.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

18

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$32.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 93-4196

Shield-Grass
(Superseded to 93-4196-03)

$13.99

$

In Stock, only 3 left!

0

21

Lawn-Boy 98-1567

Decal-Deck

$11.99

$

Usually ships in 3-6 days

0
