10321 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) REAR AXLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

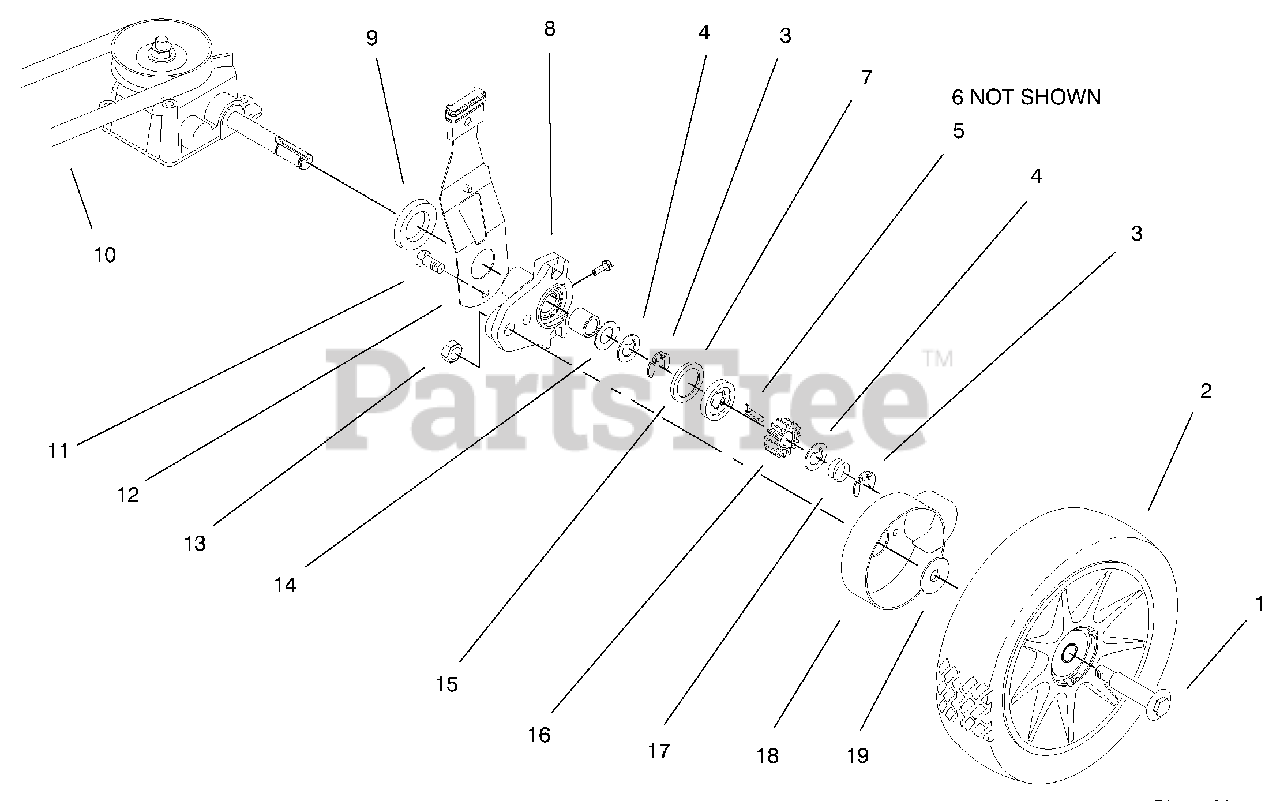

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-1057

Bolt-Shoulder

$3.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 92-1042

ASM-Whl

$52.99

$

In Stock, Qty 15

0

3

Lawn-Boy 65-2720

Ring-Retaining

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 65-4740

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 66-6050

Key-Rocking LH
(Superseded to 139-6644)

$7.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 66-6040

Key-Rocking RH
(Superseded to 139-6643)

$7.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 92-7746

ASM-Hgt Adj Arm

$53.99

$

In Stock, Qty 5

0

9

Lawn-Boy 614447

Spacer-Axle Shaft

$3.99

$

In Stock, Qty 18

0

10

Lawn-Boy 93-7381

V-Belt

$19.99

$

In Stock, Qty 7

0

11

Lawn-Boy 32144-85

Screw-HH

$1.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 92-1004

ASM-Spring Arm

$

$

Not available

13

Lawn-Boy 610358

Nut-Lock

$2.99

$

In Stock, Qty 12

0

14

Lawn-Boy 65-4730

Washer-Thrust

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 65-4760

Washer

$1.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 65-4750

Gear-Pinion

$12.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 94-1609

Cover-Wheel

$10.99

$

In Stock, Qty 12

0

19

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 20+

0
