10321 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE TVS120-66004A Parts Diagram

Silver Series Walk-Behind Mower

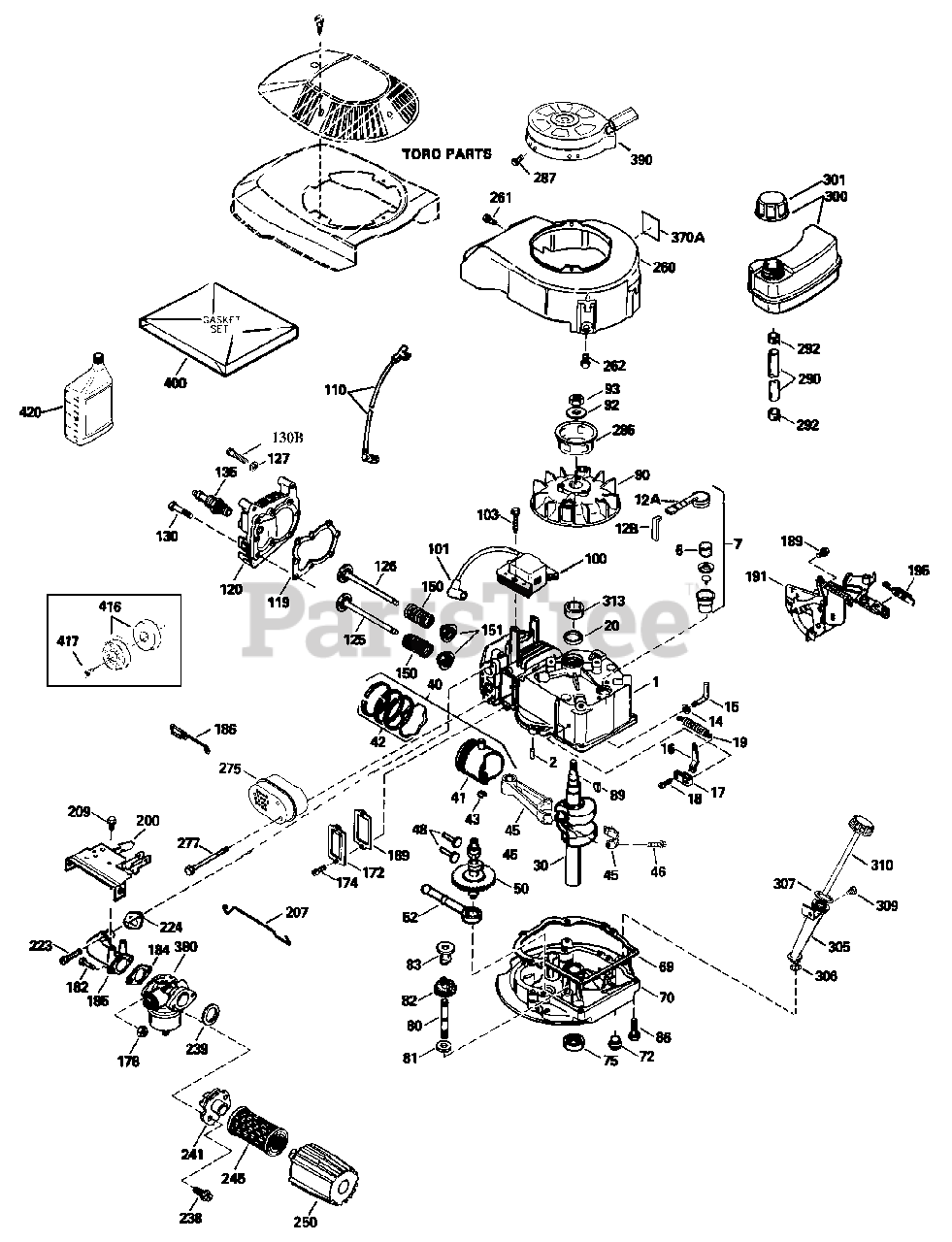

ENGINE TVS120-66004A Parts Diagram

  • Title

1

Lawn-Boy 36478A

Cylinder (Incl. 2, 7, 20 & 125)

$

$

Currently unavailable

2

Lawn-Boy 26727

Dowel Pin

$

$

Currently unavailable

6

Lawn-Boy 33734

Breather Element

$

$

Currently unavailable

7

Lawn-Boy 36557

Breather Body Ass'y. (Incl. 6 & 12A)

$

$

Currently unavailable

12A

Lawn-Boy 36558

Breather Cover & Tube (Incl. 12B)

$

$

Currently unavailable

12B

Lawn-Boy 34695

Breather Tube Elbow

$

$

Currently unavailable

14

Lawn-Boy 28277

Washer

$

$

Currently unavailable

15

Lawn-Boy 30589

Governor Rod (Incl. 14)

$

$

Currently unavailable

16

Lawn-Boy 32651

Governor Lever

$

$

Currently unavailable

17

Lawn-Boy 31335

Governor Lever Clamp

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw

$

$

Currently unavailable

19

Lawn-Boy 35998

Extension Spring

$

$

Currently unavailable

20

Lawn-Boy 32600

Oil Seal

$

$

Currently unavailable

30

Lawn-Boy 36597

Crankshaft

$

$

Currently unavailable

40

Lawn-Boy 36073

Piston, Pin & Ring Set (Std.)

$

$

Currently unavailable

40

Lawn-Boy 36074

Piston, Pin & Ring Set (.010" OS)

$

$

Currently unavailable

40

Lawn-Boy 36075

Piston, Pin & Ring Set (.020" OS)

$

$

Currently unavailable

41

Lawn-Boy 36070

Piston & Pin Ass'y. (Std.)(Incl. 43)

$

$

Currently unavailable

41

Lawn-Boy 36071

Piston & Pin Ass'y. (.010" OS)(Incl. 43)

$

$

Currently unavailable

41

Lawn-Boy 36072

Piston & Pin Ass'y. (.020" OS)(Incl. 43)

$

$

Currently unavailable

42

Lawn-Boy 36076

Ring Set (Std.)

$

$

Currently unavailable

42

Lawn-Boy 36077

Ring Set (.010" OS)

$3.23

$

Usually ships in 3-6 days

0

42

Lawn-Boy 36078

Ring Set (.020" OS)

$

$

Currently unavailable

43

Lawn-Boy 20381

Piston Pin Retaining Ring

$

$

Currently unavailable

45

Lawn-Boy 32875A

Connecting Rod Ass'y. (Incl. 46)

$

$

Currently unavailable

46

Lawn-Boy 32610A

Connecting Rod Bolt

$

$

Currently unavailable

48

Lawn-Boy 27241

Valve Lifter

$

$

Currently unavailable

50

Lawn-Boy 35992

Camshaft (MCR)

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump Ass'y.

$

$

Currently unavailable

69

Lawn-Boy 35261

Mounting Flange Gasket

$

$

Currently unavailable

70

Lawn-Boy 34311D

Mounting Flange (Incl. 72 thru 83)

$

$

Currently unavailable

72

Lawn-Boy 36083

Oil Drain Plug

$

$

Currently unavailable

75

Lawn-Boy 27897

Oil Seal

$

$

Currently unavailable

80

Lawn-Boy 30574A

Governor Shaft

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear Ass'y. (Incl. 81)

$

$

Currently unavailable

83

Lawn-Boy 30588A

Governor Spool

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw

$

$

Currently unavailable

89

Lawn-Boy 611004

Flywheel Key

$

$

Not available

90

Lawn-Boy 611112

Flywheel
(Superseded to 611113)

$

$

Not available

92

Lawn-Boy 650815

Belleville Washer

$

$

Currently unavailable

93

Lawn-Boy 650816

Flywheel Nut

$

$

Currently unavailable

100

Lawn-Boy 34443A

Solid State Ignition

$

$

Currently unavailable

101

Lawn-Boy 610118

Spark Plug Cover

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, Torx T-15,

$

$

Currently unavailable

110

Lawn-Boy 34961

Ground Wire

$

$

Currently unavailable

119

Lawn-Boy 36477

Cylinder Head Gasket

$

$

Currently unavailable

120

Lawn-Boy 36476

Cylinder Head

$

$

Currently unavailable

125

Lawn-Boy 36471

Exhaust Valve (Std.)(Incl. 151)

$

$

Not available

125

Lawn-Boy 36472

Exhaust Valve (1/32" OS)(Incl. 151)
(Superseded to 742719)

$

$

Not available

126

Lawn-Boy 29314B

Intake Valve (Std.)(Incl. 151)

$

$

Currently unavailable

126

Lawn-Boy 29315C

Intake Valve (1/32" OS)(Incl. 151)

$

$

Currently unavailable

127

Lawn-Boy 650691

Washer

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw

$

$

Currently unavailable

130B

Lawn-Boy 650818

Screw

$

$

Currently unavailable

135

Lawn-Boy 35395

Resistor Spark Plug (RJ19LM)

$

$

Currently unavailable

150

Lawn-Boy 35991

Valve Spring

$

$

Currently unavailable

151

Lawn-Boy 31673

Valve Spring Cap
(Superseded to 742357)

$

$

Not available

169

Lawn-Boy 27234A

Valve Cover Gasket

$

$

Currently unavailable

172

Lawn-Boy 32755

Valve Cover
(Superseded to 740513)

$

$

Not available

174

Lawn-Boy 30200

Screw

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lock Washer

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw
(Superseded to 111-1250)

$

$

Not available

184

Lawn-Boy 26756

Carburetor To Intake Pipe Gasket

$

$

Currently unavailable

185

Lawn-Boy 36544

Intake Pipe

$

$

Currently unavailable

186

Lawn-Boy 36255

Governor Link

$

$

Currently unavailable

189

Lawn-Boy 650839

Screw

$

$

Currently unavailable

191

Lawn-Boy 36559

S.E. Brake Bracket (Incl. 195)
(Superseded to 704849)

$

$

Not available

195

Lawn-Boy 610973

Terminal

$

$

Currently unavailable

200

Lawn-Boy 35999

Control Bracket

$

$

Currently unavailable

207

Lawn-Boy 36200

Throttle Link

$

$

Currently unavailable

209

Lawn-Boy 30200

Screw

$

$

Currently unavailable

223

Lawn-Boy 650451

Screw

$

$

Currently unavailable

224

Lawn-Boy 34690A

Intake Pipe Gasket

$

$

Currently unavailable

238

Lawn-Boy 650932

Screw

$

$

Currently unavailable

239

Lawn-Boy 34338

Air Cleaner Gasket

$

$

Currently unavailable

241

Lawn-Boy 35797

Air Cleaner Collar

$

$

Currently unavailable

245

Lawn-Boy 35066

Air Cleaner Filter

$

$

Currently unavailable

250

Lawn-Boy 35986

Air Cleaner Cover

$

$

Currently unavailable

260

Lawn-Boy 35826

Blower Housing

$

$

Currently unavailable

261

Lawn-Boy 30200

Screw

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw

$

$

Currently unavailable

275

Lawn-Boy 36473

Muffler (Incl. 277)

$

$

Currently unavailable

277

Lawn-Boy 650988

Screw

$

$

Currently unavailable

285

Lawn-Boy 35000A

Starter Cup

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw

$

$

Currently unavailable

290

Lawn-Boy 34357

Fuel Line

$

$

Currently unavailable

292

Lawn-Boy 26460

Fuel Line Clamp

$

$

Currently unavailable

300

Lawn-Boy 35586

Fuel Tank (Incl. 292 & 301)
(Superseded to 704776)

$

$

Not available

301

Lawn-Boy 35355

Fuel Cap

$

$

Currently unavailable

305

Lawn-Boy 35819A

Oil Fill Tube

$

$

Currently unavailable

306

Lawn-Boy 36832

"O"-Ring

$

$

Currently unavailable

307

Lawn-Boy 35499

"O"-Ring

$

$

Currently unavailable

309

Lawn-Boy 651014

Screw

$

$

Currently unavailable

310

Lawn-Boy 36259

Dipstick

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer

$

$

Currently unavailable

370A

Lawn-Boy 36261

Lubrication Decal

$

$

Currently unavailable

380

Lawn-Boy 632733

Carburetor (Incl. 184)

$

$

Currently unavailable
