10320 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

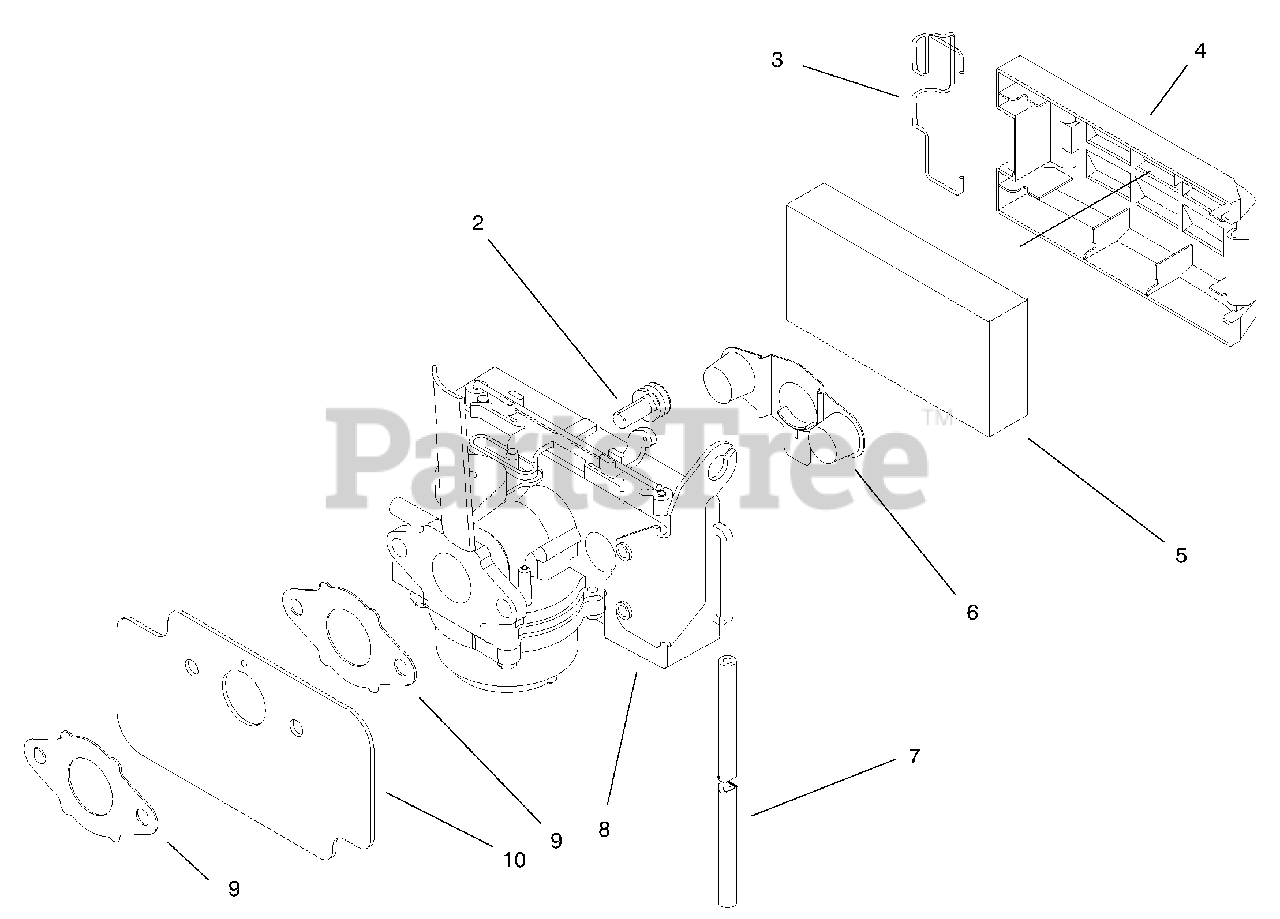

ENGINE ASSEMBLY Parts Diagram

  • Title
2

$2.99

$

In Stock, Qty 8

0

3

Lawn-Boy 610383

Retainer-Filter

$9.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 93-1231

Cover-Air Cleaner

$

$

Not available

5

Lawn-Boy 609493

Element-Filter Air
(Superseded to 107-4621)

$5.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 93-4320

Shield-Fuel

$

$

Not available

7

Lawn-Boy 44-3174

Hose-Primer

$5.99

$

In Stock, Qty 15

0

8

Lawn-Boy 93-4331

Carburetor Assembly (Incl. Ref. #9)

$278.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 92-4948

Gasket-Carburetor

$1.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 93-1221

Shield-Carburetor

$

$

Not available
