10319 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) Gear Case Assembly Parts Diagram

Silver Series Walk-Behind Mower

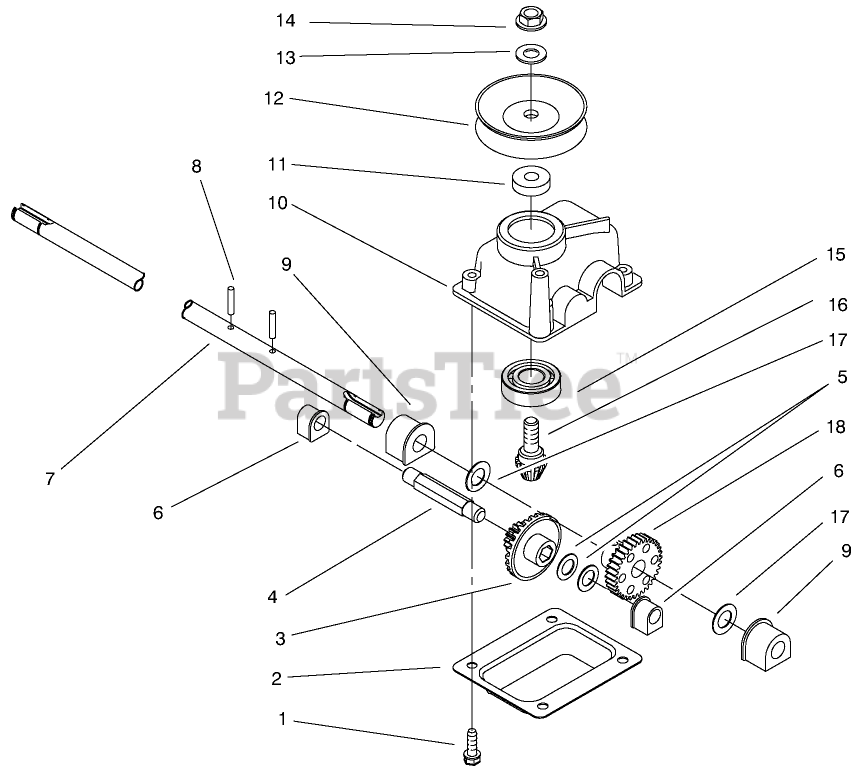

Gear Case Assembly Parts Diagram

  • Title

1

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 614668

See Supercession: 614668-03
(Superseded to 614668-03)

$9.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 55-3760

See Supercession: 104-7668
(Superseded to 104-7668)

$34.99

$

In Stock, only 1 left!

0

4

Lawn-Boy 614696

SHAFT-INTERMEDIATE

$108.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 60-8750

BUSHING

$6.99

$

In Stock, Qty 10

0

7

Lawn-Boy 93-0239

See Supercession: 104-7670
(Superseded to 104-7670)

$139.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 7

0

9

Lawn-Boy 60-8850

BUSHING

$8.49

$

In Stock, Qty 17

0

10

Lawn-Boy 92-7727

See Supercession: 104-7619
(Superseded to 104-7619)

$45.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 62-6660

SPACER

$1.49

$

In Stock, only 3 left!

0

12

Lawn-Boy 614669

HALF-PULLEY

$23.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

14

Lawn-Boy 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

15

Lawn-Boy 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 17

0

16

Lawn-Boy 60-8890

See Supercession: 104-7667
(Superseded to 104-7667)

$18.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 3 left!

0

18

Lawn-Boy 614596

GEAR

$54.99

$

In Stock, Qty 5

0
