10319 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) Engine Briggs Stratton Model 12v802-1741-A1 7 Parts Diagram

Silver Series Walk-Behind Mower

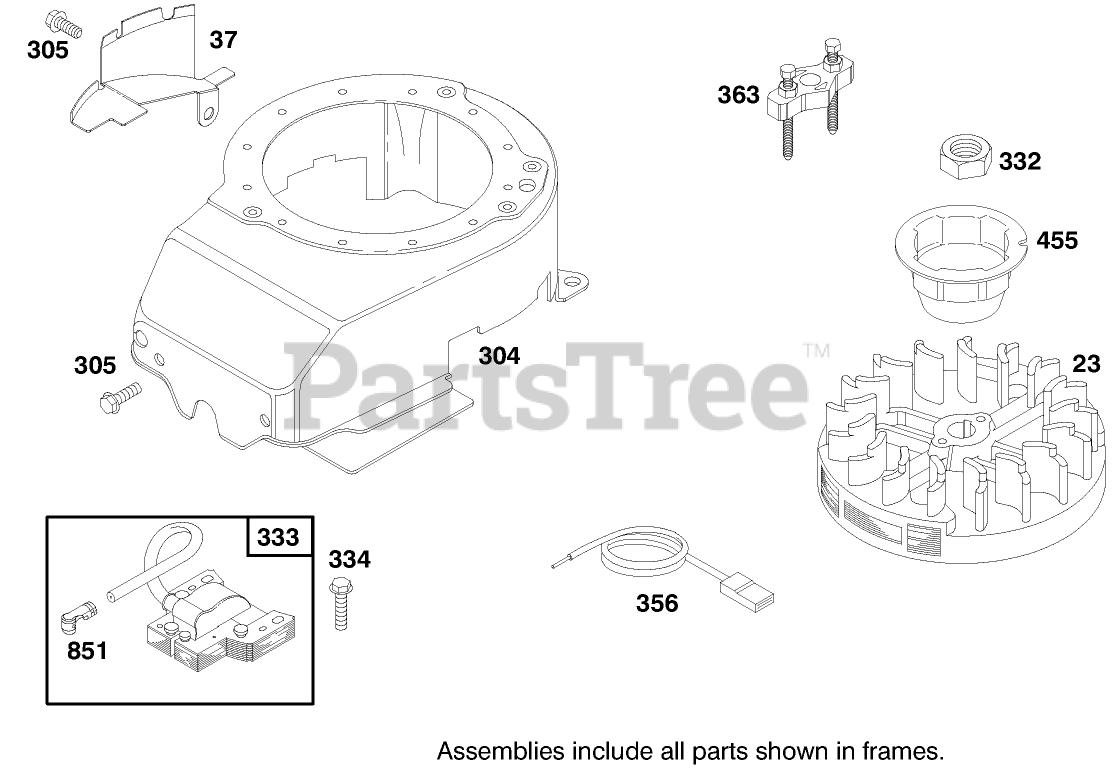

Engine Briggs Stratton Model 12v802-1741-A1 7 Parts Diagram

  • Title
23

Lawn-Boy 492177

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

37

Lawn-Boy 224511

Flywheel Guard

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

304

Lawn-Boy 493293

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

305

Lawn-Boy 94744

Screw-Hex

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

332

Lawn-Boy 92284

Nut

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

333

Lawn-Boy 802574

Armature-Magneto

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

334

Lawn-Boy 94731

Screw-Sem

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

356

Lawn-Boy 398808

Wire Stop

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

363

Lawn-Boy 19069

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

455

Lawn-Boy 225121

DISCONTINUED

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

851

Lawn-Boy 493880

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
