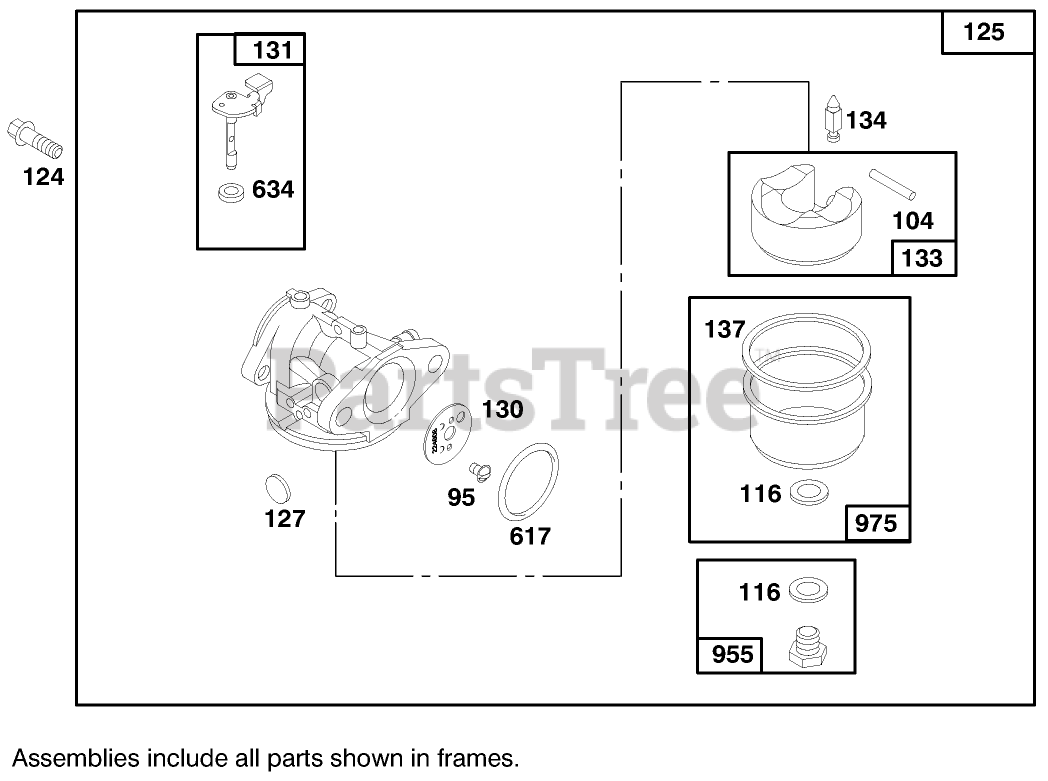

10319 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) Engine Briggs Stratton Model 12v802-1741-A1 3 Parts Diagram

Silver Series Walk-Behind Mower

Engine Briggs Stratton Model 12v802-1741-A1 3 Parts Diagram

  • Title
95

Lawn-Boy 94098

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

104

Pin-Float Hinge

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

104

Pin-Float Hinge

Note: Included in Carburetor Kit-Part No. 498260

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

116

Gasket-Sealing (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Not available

124

Lawn-Boy 94525

Screw-Hex

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

125

Lawn-Boy 498966

Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

127

Plug-Welch (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Not available

127

Plug-Welch (Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

130

Lawn-Boy 224908

Throttle Valve

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

131

Lawn-Boy 493267

Shaft and Lever

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

133

Lawn-Boy 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

134

Lawn-Boy 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Currently unavailable

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

137

Gasket-Bowl (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Not available

617

Lawn-Boy 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-O Ring

Note: Included in Carburetor Kit-Part No. 498260

$

$

Currently unavailable

617

Lawn-Boy 270344

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

634

Washer-Shaft (Sold in Kit Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

634

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Kit-Part No. 498260

$

$

Not available

634

Washer-Shaft (Sold in Kit Only)

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Not available

955

Lawn-Boy 498975

Jet?Main

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

975

Lawn-Boy 493640

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
