10319 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) Engine Briggs Stratton Model 12v802-1741-A1 2 Parts Diagram

Silver Series Walk-Behind Mower

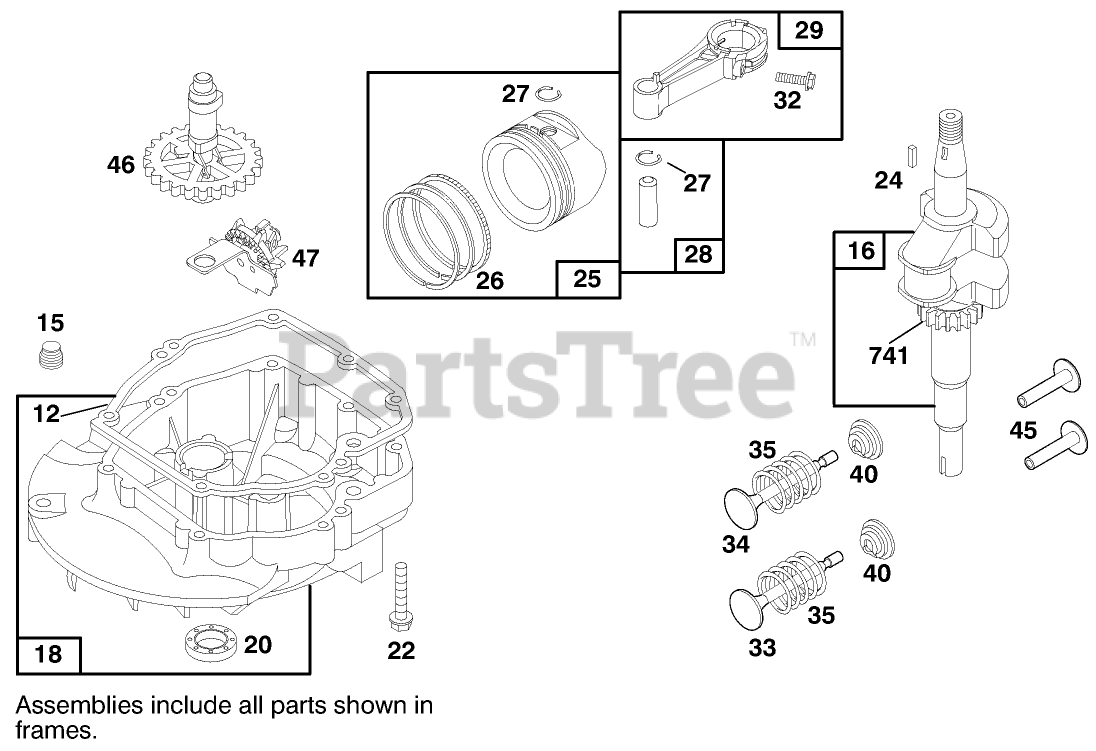

Engine Briggs Stratton Model 12v802-1741-A1 2 Parts Diagram

  • Title
12

Lawn-Boy 272198

Gasket

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

12

Lawn-Boy 272198

Gasket

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

15

Lawn-Boy 94720

Plug-Pipe

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

16

Lawn-Boy 498878

Crankshaft Note: Order 94388 For Timing Gear Key.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

18

Lawn-Boy 493279

Sump-Engine

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

20

Lawn-Boy 399781

Seal-Oil

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

22

Lawn-Boy 94220

Screw-Hex. Head

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

24

Lawn-Boy 222698

Key

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Lawn-Boy 493262

Piston Assy. (Std.)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Lawn-Boy 493385

Piston Ass-y-.010" O.S.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Lawn-Boy 493386

Piston Ass-y-.020" O.S.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Lawn-Boy 493387

Piston Ass-y-.030" O.S.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

26

Lawn-Boy 493261

Ring Set (Std.)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Lawn-Boy 493388

Ring-.010" O. S.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Lawn-Boy 493389

Ring Set-.020" O.S.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Lawn-Boy 493390

Ring Set-.030" O.S.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

27

Lawn-Boy 26026

Iock-Piston Pin

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

28

Lawn-Boy 298909

Pin Ass-y-Piston

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Lawn-Boy 298908

Pin-Piston (.005 Undersize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

29

Lawn-Boy 490566

Rod Ass-y-Con.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

32

Lawn-Boy 94699

Screw-Hex

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

33

Lawn-Boy 262651

Valve-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

34

Lawn-Boy 262652

Valve-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

35

Lawn-Boy 262224

Spring-Value

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

40

Lawn-Boy 93312

Gear-Cam

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

45

Lawn-Boy 262204

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

46

Lawn-Boy 498275

Camshaft

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

47

Lawn-Boy 493737

Oil Slinger

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

741

Lawn-Boy 262598

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
