10318 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

Silver Series Walk-Behind Mower

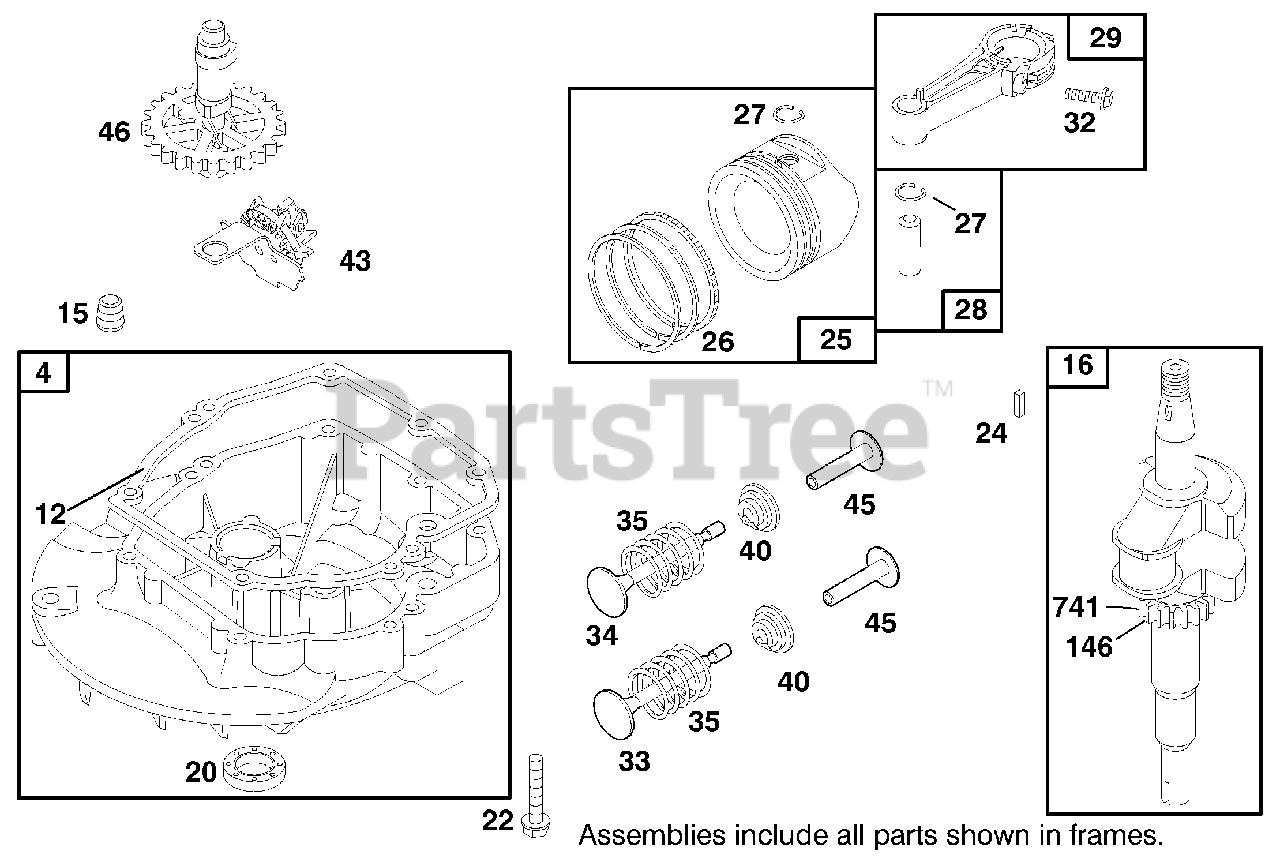

ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

  • Title
4

Lawn-Boy 493279

Sump-Engine

$

$

Currently unavailable

12

Lawn-Boy 272198

Gasket-Crankcase

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

15

Lawn-Boy 94880

Plug-Oil Drain (1/16 27 NPTF)

$

$

Currently unavailable

16

Crankshaft

$

$

Not available

20

Lawn-Boy 399781

Seal-Oil

Note: Included in Gasket Set-Part Number 497316.

$

$

Currently unavailable

22

Lawn-Boy 94220

Screw-Hex. Head Note: 94612 Screw-Hex. (One Used in Hole Nearest Breather)

$

$

Currently unavailable

24

Lawn-Boy 222698

Key-Flywheel

$

$

Currently unavailable

25

Lawn-Boy 499429

Piston Assy. (Standard)

$

$

Currently unavailable

Lawn-Boy 493385

Piston Assy. (.010" O.S.)

$

$

Currently unavailable

Lawn-Boy 493386

Piston Assy. (.020" O.S.)

$

$

Currently unavailable

Lawn-Boy 493387

Piston Assy. (.030" O.S.)

$

$

Currently unavailable

26

Lawn-Boy 499425

Ring Set (Standard)

$

$

Currently unavailable

Lawn-Boy 499426

Ring Set (.010" O.S.)

$

$

Currently unavailable

Lawn-Boy 499427

Ring Set (.020" O.S.)

$

$

Currently unavailable

Lawn-Boy 494428

Ring Set (.030" O.S.)

$

$

Currently unavailable

27

Lawn-Boy 263190

Lock-Piston Pin

$

$

Currently unavailable

28

Lawn-Boy 499423

Pin-Piston (Standard)

$

$

Currently unavailable

Lawn-Boy 298908

Pin-Piston (.005" O.S.)

$

$

Currently unavailable

29

Lawn-Boy 499424

Rod Assembly-Connecting

$

$

Currently unavailable

Lawn-Boy 490743

Rod-Connecting (.020" Undersize)

$

$

Currently unavailable

32

Lawn-Boy 94699

Screw-Hex

$

$

Currently unavailable

33

Lawn-Boy 262651

Valve-Exhaust

$

$

Currently unavailable

34

Lawn-Boy 262652

Valve-Intake

$

$

Currently unavailable

35

Lawn-Boy 262224

Spring-Valve

$

$

Currently unavailable

40

Lawn-Boy 93312

Retainer-Valve

$

$

Currently unavailable

45

Lawn-Boy 262204

Tappet-Valve

$

$

Currently unavailable

43

Lawn-Boy 493737

Governor/Oil Slinger

$

$

Currently unavailable

46

Lawn-Boy 498275

Gear-Cam

$

$

Currently unavailable

146

Lawn-Boy 94388

Key-Timing
(Superseded to 690979)

$3.49

$

In Stock, Qty 7

0

741

Lawn-Boy 262598

Gear-Timing

$

$

Currently unavailable
