10318 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

Silver Series Walk-Behind Mower

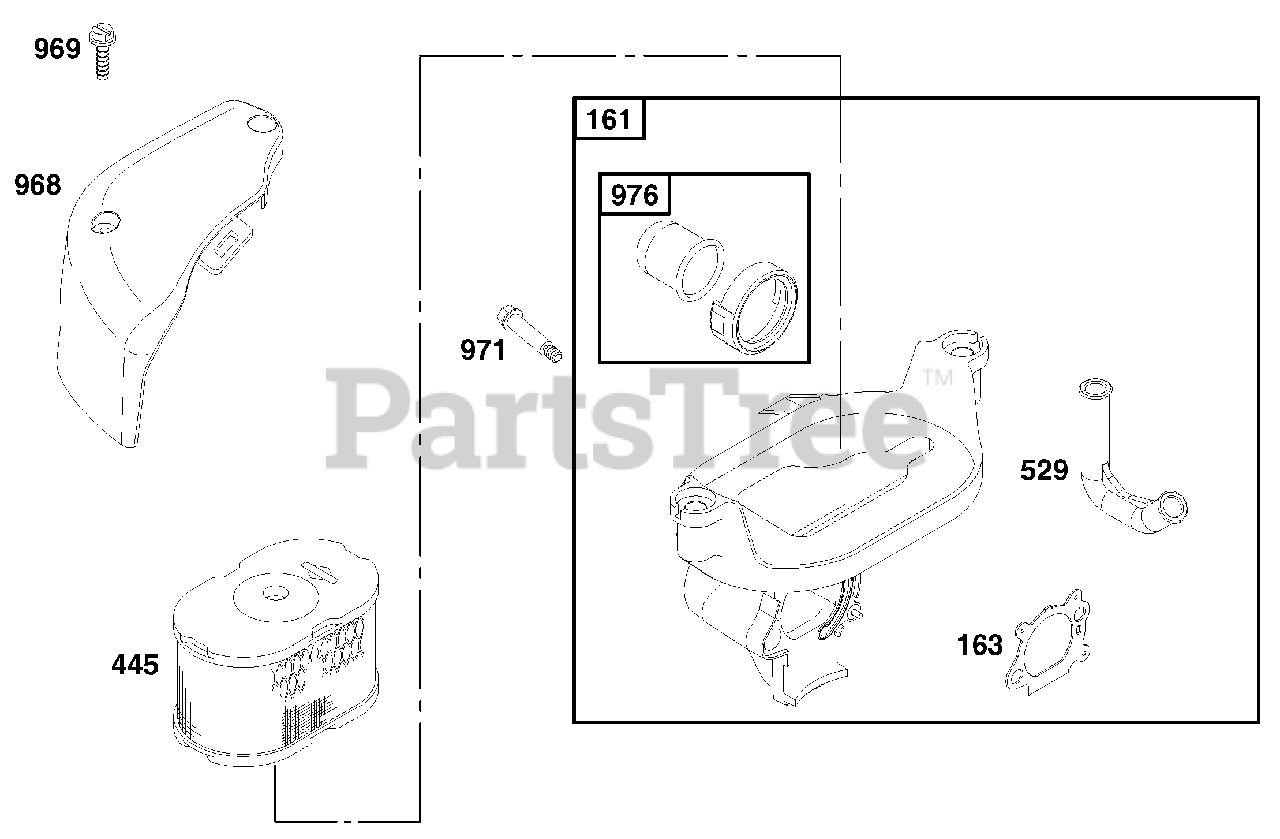

ENGINE BRIGGS & STRATTON MODEL 12V802-3118-E1 Parts Diagram

  • Title
161

Lawn-Boy 497915

Base-A/C Primer

$

$

Currently unavailable

163

Lawn-Boy 272653

Gasket-Air Cleaner

Note: Included in Gasket Set-Part Number 497316. Included in Carburetor Kit-Part Number 498260. Included in Carburetor Gasket Set-Part Number 498261.

$

$

Currently unavailable

445

Lawn-Boy 497725

Filter-A/C Cartridge

$

$

Currently unavailable

529

Lawn-Boy 281556

Tube-Breather

$

$

Currently unavailable

968

Lawn-Boy 693198

Cover-Air Cleaner

$

$

Currently unavailable

969

Lawn-Boy 94777

Screw-Slotted Hex.

$

$

Currently unavailable

971

Lawn-Boy 94655

Screw-Shoulder

$

$

Currently unavailable

976

Lawn-Boy 496115

Primer-Carburetor

$

$

Currently unavailable
