10318 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 008900001 - 008999999) (1998) ENGINE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

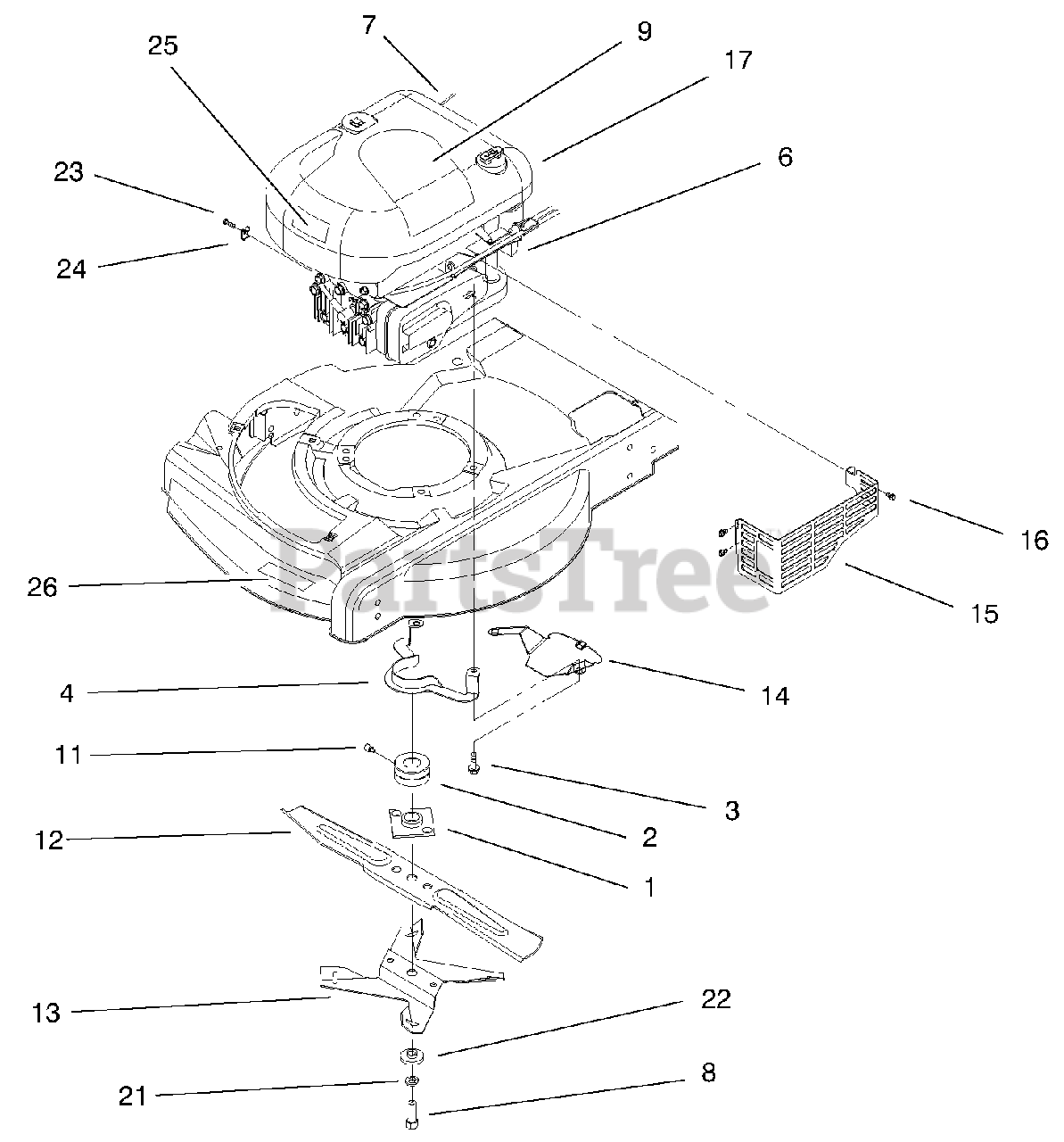

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 677525

ASM-Plate & Collar

$23.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 92-6542

Pulley-Engine

$77.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 95-1726

Screw-Engine Mount

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 92-1024

Guide-Belt
(Superseded to 92-1024-03)

$

$

Not available

6

ASM-Engine

$

$

Not available

7

Lawn-Boy 2210-316

Rope-Stop

$7.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 95-1748

Bolt-Blade
(Superseded to 105-8629)

$20.99

$

In Stock, Qty 5

0

9

Lawn-Boy 98-1568

Decal-Recoil

$

$

Not available

11

Lawn-Boy 613227

Screw-Set
(Superseded to 105-8875)

$10.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 612543

Blade-21" Whirl
(Superseded to 612543-03)

$29.99

$

In Stock, only 4 left!

0

13

Lawn-Boy 92-1630

Fan-Mulching
(Superseded to 99-6351-03)

$32.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 93-4196

Shield-Grass
(Superseded to 93-4196-03)

$13.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 82-8550

Shield-Muffler
(Superseded to 104-7577-03)

$25.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 32144-73

Screw-HWHTF
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 95-1704

Shroud-Engine
(Superseded to 95-1704-03)

$131.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 3253-22

Washer-Lock

$2.99

$

In Stock, only 3 left!

0

22

Lawn-Boy 95-1712

Spacer-Blade

$

$

Not available

23

Lawn-Boy 93-8470

Screw-Clamp

$7.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 2210-249

Clamp-Casing

$3.49

$

Usually ships in 3-6 days

0

25

Lawn-Boy 98-1592

Applique-Shroud

$

$

Not available

26

Lawn-Boy 98-1567

Decal-Deck

$11.99

$

Usually ships in 3-6 days

0
