10317 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12V802-1741-A1 Parts Diagram

Silver Series Walk-Behind Mower

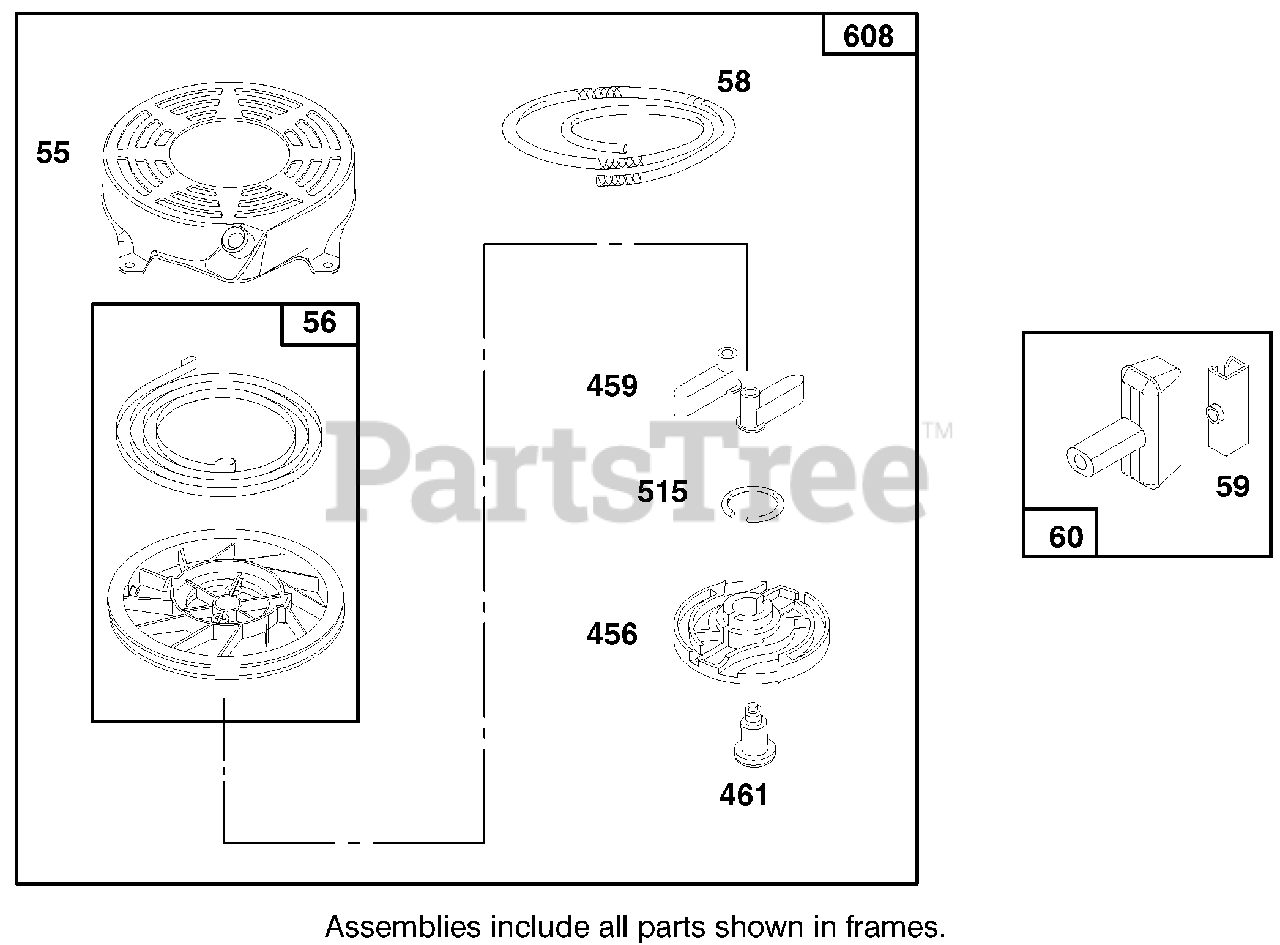

ENGINE BRIGGS & STRATTON MODEL 12V802-1741-A1 Parts Diagram

  • Title

55

Lawn-Boy 497440

Housing-Rewind Starter

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

56

Lawn-Boy 498144

Pulley-Rewind Starter

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

58

Lawn-Boy 280399

Rope-Rewind Starter (Cut to Required Length)

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

59

Lawn-Boy 224467

Insert-Starter Grip

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

60

Lawn-Boy 493926

Handle-Rewind Starter

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

456

Lawn-Boy 281503

Retainer-Rewind Starter

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

459

Lawn-Boy 281505

Pawl-Starter

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

461

Lawn-Boy 94943

Pin-Starter

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

515

Lawn-Boy 263073

Spring-Torsion

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

608

Lawn-Boy 497680

Starter Assy.-Rewind Includes: 94128 Screw-Hex. Head 1, 92987 Nut-Hex. 1

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable
