10316 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12V802-0625-01 Parts Diagram

Silver Series Walk-Behind Mower

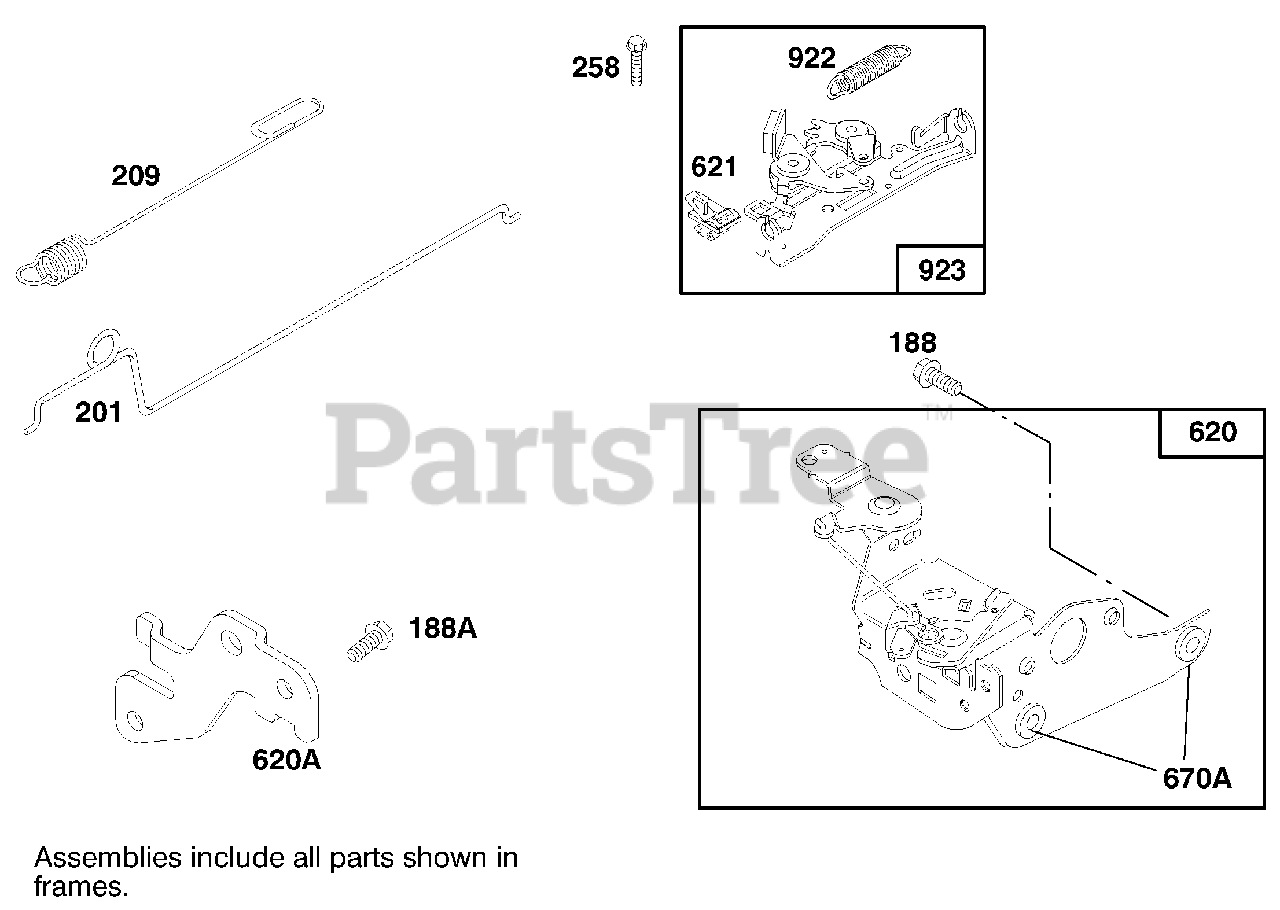

ENGINE BRIGGS & STRATTON MODEL 12V802-0625-01 Parts Diagram

  • Title
188

Lawn-Boy 94644

Screw-Hex. Head

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

188A

Lawn-Boy 94602

Screw-Hex. Head

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

201

Lawn-Boy 262579

Link-Governor

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

209

Lawn-Boy 263046

Spring-Governor

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

258

Lawn-Boy 94512

Screw-Hex. Head

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

620

Lawn-Boy 497203

Bracket-Carburetor

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

620A

Lawn-Boy 225152

Bracket-Control

Note: Obtain Parts From Briggs & Stratton

$

$

Not available

621

Lawn-Boy 396847

Switch-Stop

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

670A

Lawn-Boy 493823

Spacer-Bracket

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

922

Lawn-Boy 262640

Spring-Brake

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

923

Lawn-Boy 493442

Brake Assembly

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable
