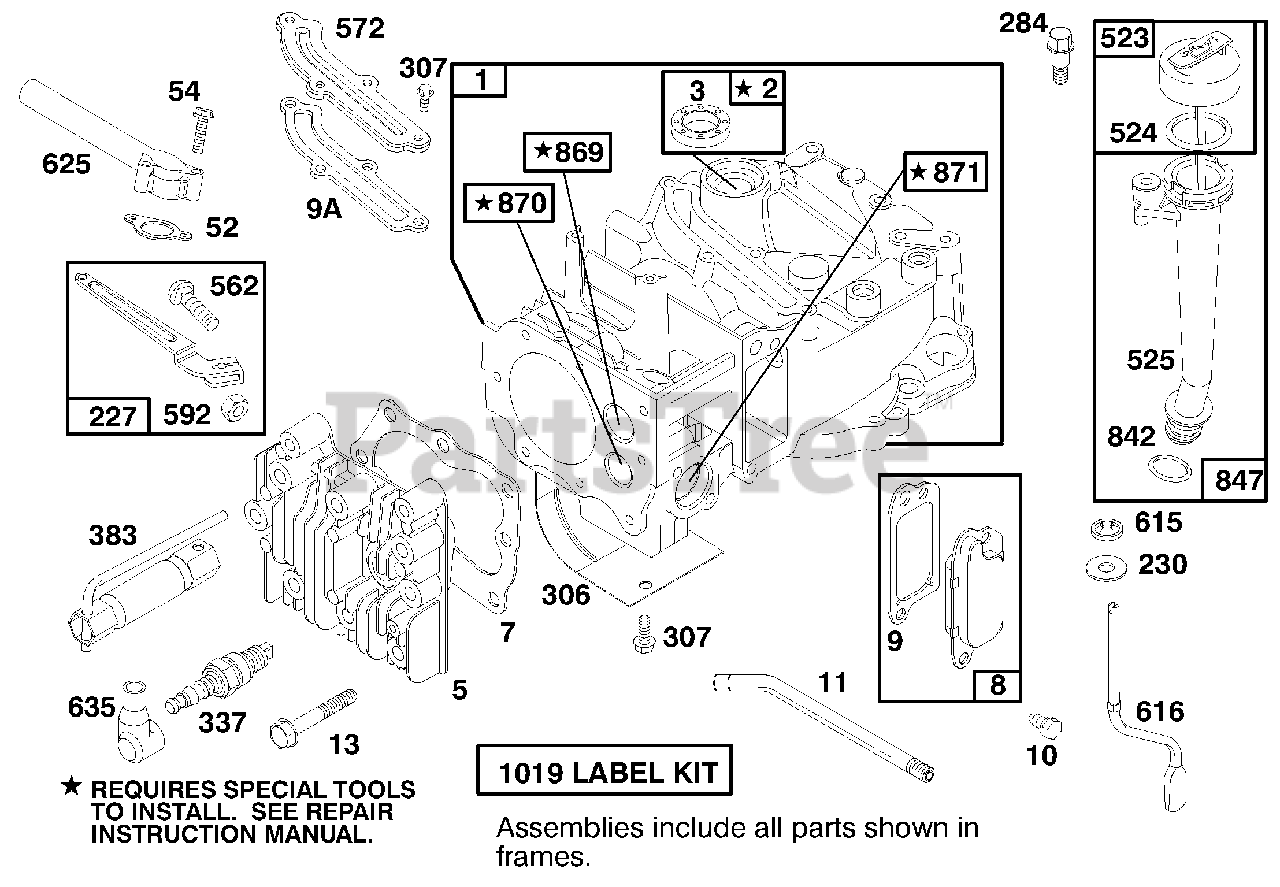

10316 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) ENGINE BRIGGS & STRATTON MODEL 12V802-0625-01 Parts Diagram

Silver Series Walk-Behind Mower

ENGINE BRIGGS & STRATTON MODEL 12V802-0625-01 Parts Diagram

  • Title

1

Lawn-Boy 493260

Cylinder Assembly

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

2

Lawn-Boy 293708

Bushing-Cylinder

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

3

Lawn-Boy 299819

Seal-Oil

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

5

Lawn-Boy 214368

Head-Cylinder

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

7

Lawn-Boy 272916

Gasket-Cylinder Head

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

8

Lawn-Boy 495786

Breather-Valve Chamber

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

9

Lawn-Boy 272481

Gasket-Breather

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

9A

Lawn-Boy 272238

Gasket-Baffle Plate

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

10

Lawn-Boy 94650

Screw-Breather Mtg.

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

11

Lawn-Boy 231933

Tube-Breather

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

13

Lawn-Boy 94547

Screw-Cylinder Head

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

52

Lawn-Boy 272199

Gasket-Intake Elbow

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

54

Lawn-Boy 94526

Screw-Intake Elbow Mtg.

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

227

Lawn-Boy 492349

Lever Assembly-Gov.

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

230

Lawn-Boy 67072

Washer-Gov. Crank

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

284

Lawn-Boy 94511

Screw-Hex. Head

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

306

Lawn-Boy 224324

Shield-Cylinder

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

307

Lawn-Boy 94515

Screw-Hex. Head

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

337

Lawn-Boy 802592

Plug-Spark

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

383

Lawn-Boy 89838

Wrench-Spark Plug

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

523

Lawn-Boy 495264

Cap With Dipstick-Oil Filler

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

524

Lawn-Boy 280393

Seal-Filler Tube

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

525

Lawn-Boy 495265

Tube-Oil Filler

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

562

Lawn-Boy 94852

Bolt-Carriage

Note: Obtain Parts From Briggs & Stratton

$

$

Not available

572

Lawn-Boy 224328

Baffle-Cylinder

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

592

Lawn-Boy 231082

Nut-Hex.

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

615

Lawn-Boy 94474

Fastener

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

616

Lawn-Boy 262578

Crank-Governor

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

625

Lawn-Boy 497465

Tube-Fuel Intake

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

635

Lawn-Boy 66538

Elbow-Spark Plug

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

842

Lawn-Boy 280966

Seal-O-Ring

Note: Obtain Parts From Briggs & Stratton Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

847

Lawn-Boy 495263

Oil Fill Tube Assy.

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

869

Lawn-Boy 213512

Seat-Intake Valve

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

870

Lawn-Boy 213513

Seat-Exhaust Valve

Note: Obtain Parts From Briggs & Stratton

$

$

Not available

871

Lawn-Boy 262001

Guide-Exhaust Valve Note: 63709 Guide-Intake Valve

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable

1019

Lawn-Boy 494256

Label Kit

Note: Obtain Parts From Briggs & Stratton

$

$

Currently unavailable
