10314 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) REAR CATCHER ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

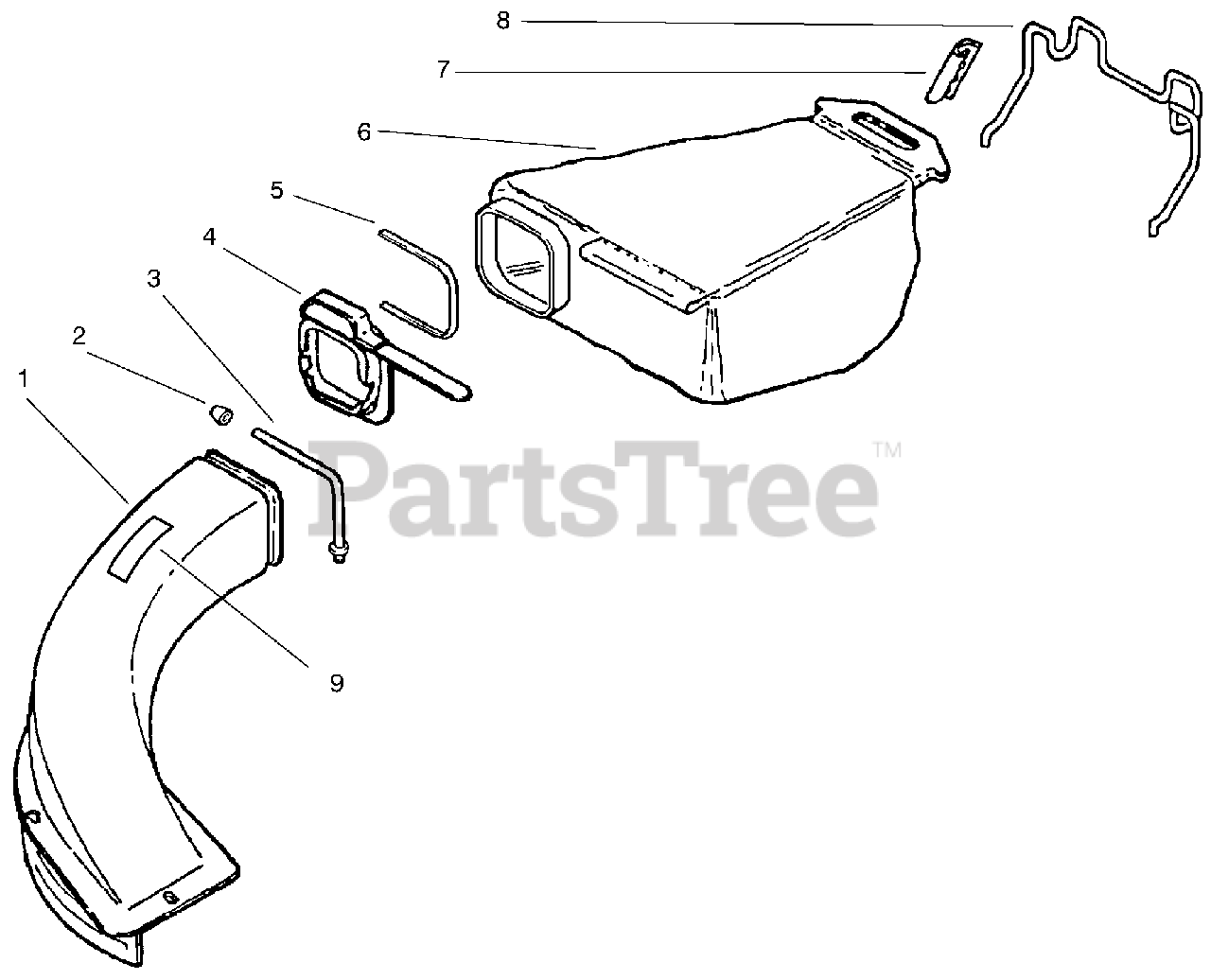

REAR CATCHER ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 684729

Chute & Support Assembly (Incl. Ref.#2, 3 & 9)

$

$

Not available

2

Lawn-Boy 614589

Nut-Cap

$

$

Not available

3

Lawn-Boy 614591

Chute Support

$

$

Not available

4

Lawn-Boy 684727

Adaptor Assembly
(Superseded to 684727-03)

$153.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 614700

Tie Strap

$7.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 89801

Bag Assembly

Note: Includes Ref.#5 and instruction sheet for installing bag to adapter assembly. Order via model #89801.

$

$

Currently unavailable

7

Lawn-Boy 613462

Hanger Clamp
(Superseded to 613462-03)

$

$

Not available

8

Lawn-Boy 613455

Wide Hanger

$73.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 92-2919

Decal-Danger

$

$

Not available
