10314 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) MULCH PLATE & WHEEL ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

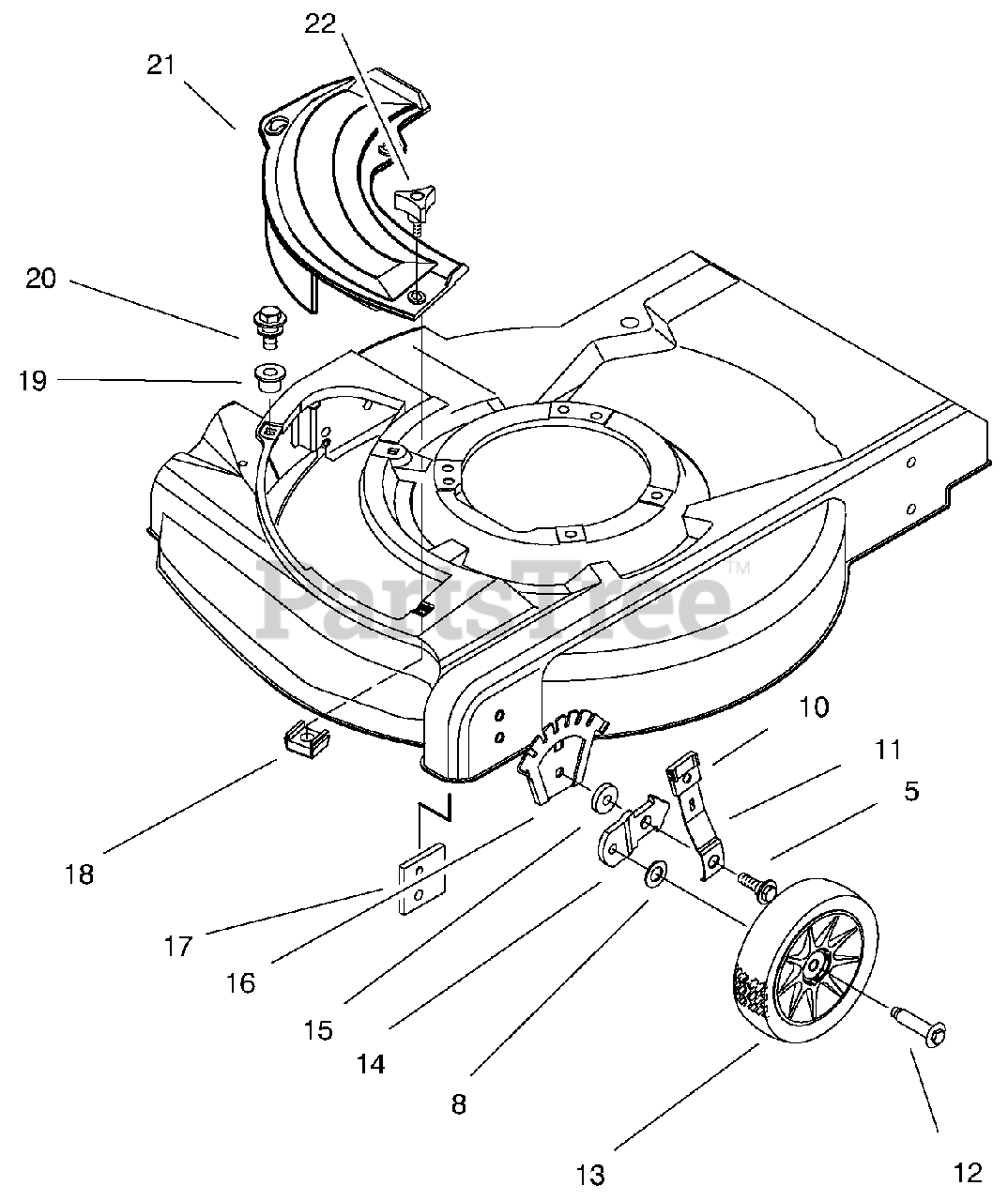

MULCH PLATE & WHEEL ASSEMBLY Parts Diagram

  • Title

5

Lawn-Boy 614672

Bolt-Shoulder Height Adj.

$2.99

$

In Stock, Qty 6

0

8

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 18

0

10

Lawn-Boy 92-1008

Knob-Height Adjust

$14.99

$

In Stock, only 2 left!

0

11

Lawn-Boy 614687

Arm-Spring

$21.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 92-1099

Bolt-Shoulder

$8.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 684776

Wheel & Tire Ass'y 6"

$37.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 614637

Bracket-Wheel Height Adj.
(Superseded to 95-7403-03)

$

$

Not available

15

Lawn-Boy 92-4890

Washer

$8.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 92-4881

Plate-Height Adj.
(Superseded to 92-4881-03)

$29.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 92-7731

Plate-Baffle

$10.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 613765

Nut-Cage

$9.99

$

In Stock, Qty 9

0

19

Lawn-Boy 94-1610

Grommet-Plastic

$1.49

$

In Stock, Qty 9

0

20

Lawn-Boy 614677

Screw-Sems Thr'd Form.

$4.49

$

In Stock, Qty 12

0

21

Lawn-Boy 92-8630

Plate-Mulch

$

$

Not available

22

Lawn-Boy 614682

Knob-Cover Plate
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 16

0
