10314 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) HANDLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

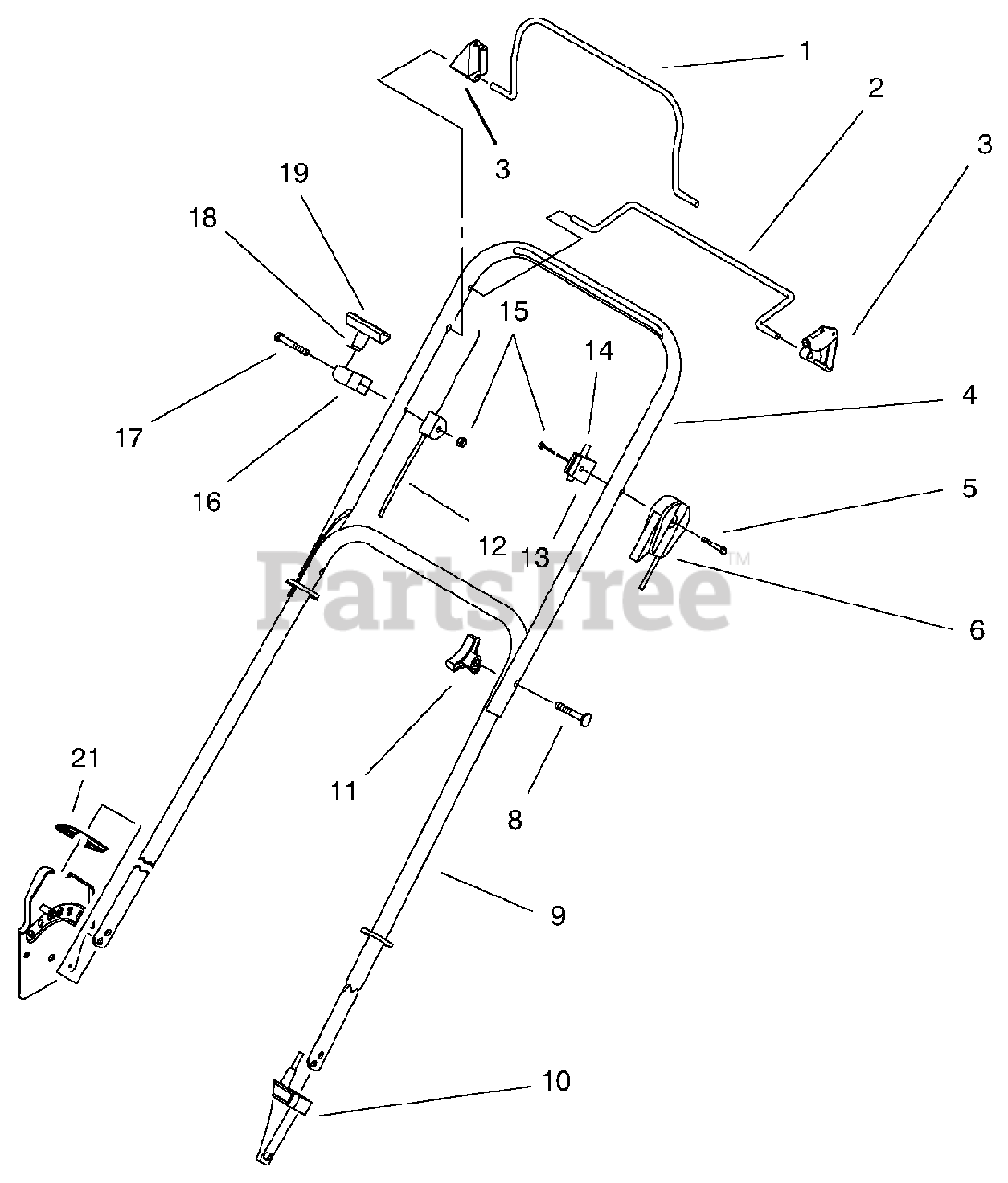

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-4184

Bail-Flywheel Brake
(Superseded to 93-4184-03)

$41.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 92-1001

Bail-SP Control
(Superseded to 92-1001-03)

$58.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 95-1713

Handle-Upper
(Superseded to 95-1713-05)

$

$

Not available

5

Lawn-Boy 321-49

Screw-Hex Hd. Cap

$1.99

$

In Stock, Qty 9

0

6

Lawn-Boy 92-7734

Cable-Throttle

$35.99

$

In Stock, only 3 left!

0

8

Lawn-Boy 614697

Screw-Handle

$2.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 614643

Handle-Lower
(Superseded to 614643-05)

$

$

Not available

10

Lawn-Boy 93-7380

Anchor-Cable SP Lower)

$14.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 614243

Knob
(Superseded to 98-7134)

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 92-7738

Cable-Flywheel Brake

$29.99

$

In Stock, Qty 6

0

13

Lawn-Boy 92-7729

Anchor-Cable SP Upper

$4.99

$

In Stock, Qty 12

0

14

Lawn-Boy 92-7726

Cable-Traction
(Superseded to 95-5590)

$30.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, Qty 5

0

16

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 321-50

Screw-Hex Hd. Cap

$1.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 612824

Clip-Rope Insert

$4.49

$

In Stock, Qty 9

0

21

Lawn-Boy 93-3653

Guard-Handle
(Superseded to 104-1013)

$

$

Not available
