10314 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

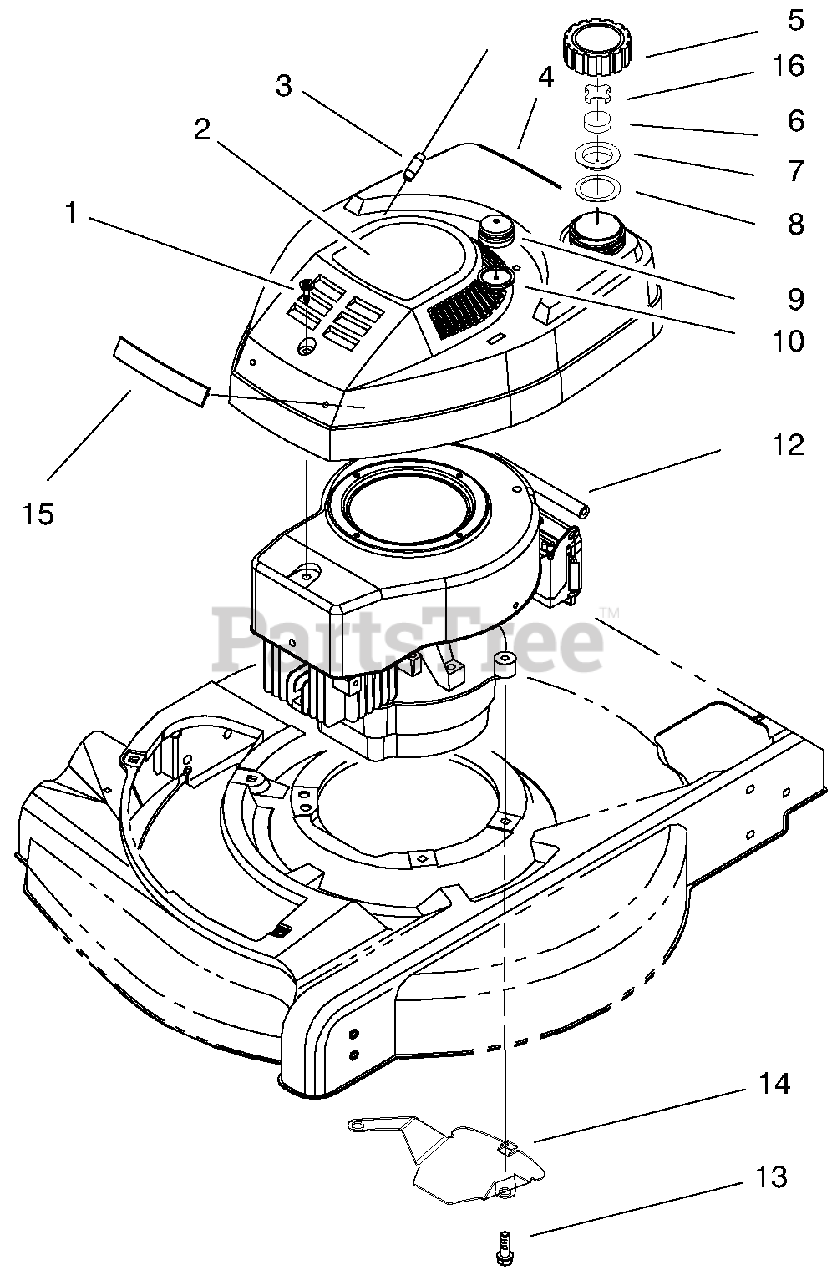

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 93-4302

Screw-Sems

$7.99

$

In Stock, Qty 12

0

2

Lawn-Boy 93-0294

Decal-Recoil

$7.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-1701

Stop-Rope
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-6380

Tank & Shroud

$130.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 93-3660

Gas Cap Assembly (Incl. Ref. #6-8, & 16)
(Superseded to 98-8344)

$24.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 609150

Baffle-Foam

$6.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 613311

Gasket

$

$

Not available

8

Lawn-Boy 93-1230

Cover

$

$

Not available

9

Lawn-Boy 66-7460

Bulb-Primer

$6.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 44-2750

Body-Primer

$8.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 612782

Line-Gas

$7.49

$

In Stock, Qty 9

0

13

Lawn-Boy 95-1726

Screw-Engine

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 93-4196

Shield-Grass
(Superseded to 93-4196-03)

$15.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 92-8615

Applique-Shroud

$31.99

$

In Stock, only 2 left!

0

16

Lawn-Boy 93-3175

Baffle-Gas Cap

$

$

Not available
