10311 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) REAR AXLE ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

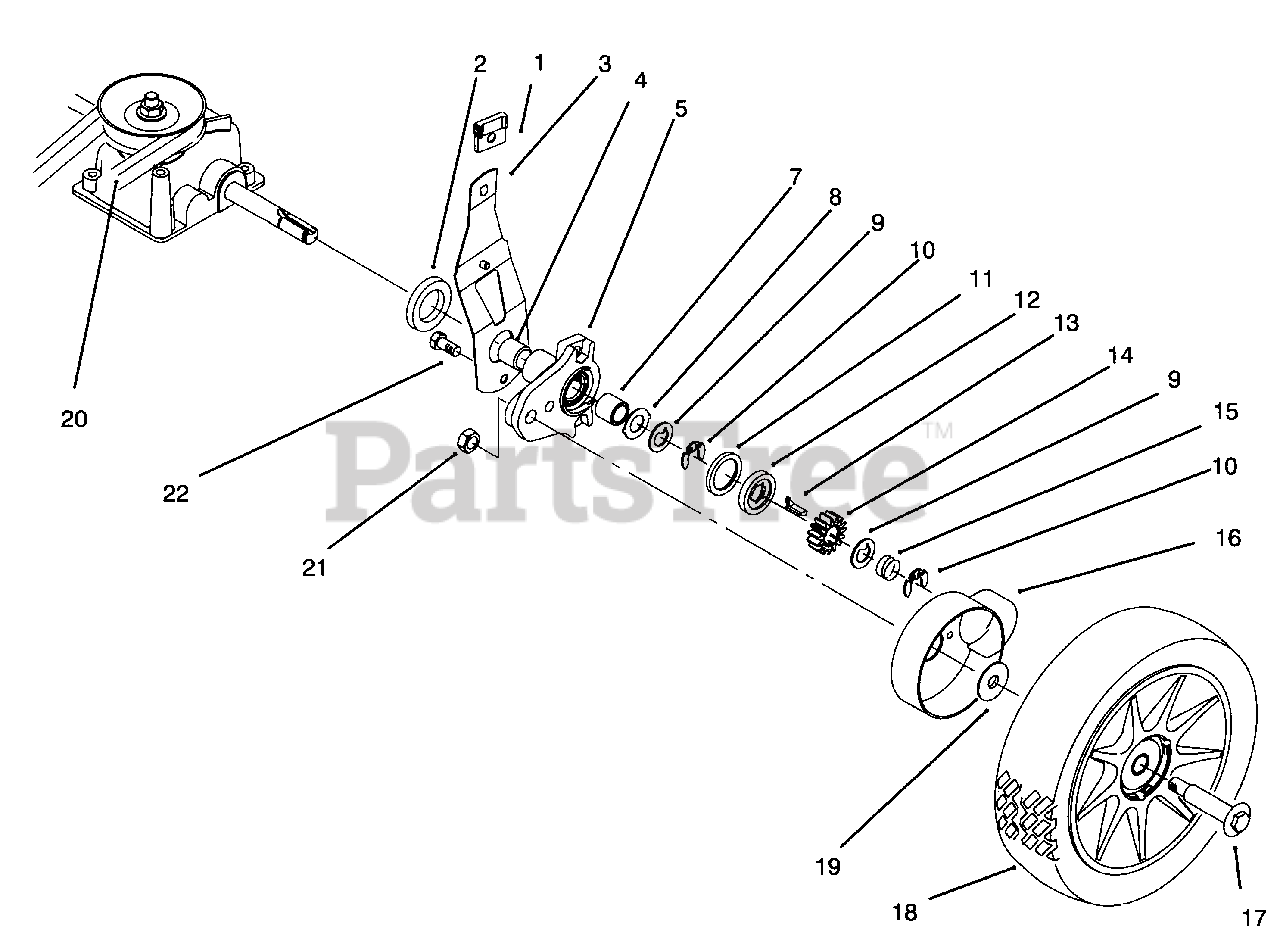

REAR AXLE ASSEMBLY Parts Diagram

  • Title

$14.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 614447

Spacer-Axle Shaft

$3.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 92-1004

Spring Arm Ass'y

$

$

Not available

4

$4.99

$

In Stock, Qty 6

0

5

Lawn-Boy 92-7746

Pivot Arm Ass'y-Rear (Incl. Ref.#4, 6, & 7)

$50.99

$

In Stock, only 2 left!

0

7

$6.49

$

In Stock, only 4 left!

0

8

Lawn-Boy 65-4730

Washer-Thrust Pivot Arm

$2.49

$

In Stock, only 3 left!

0

9

Lawn-Boy 65-4740

Washer-Thrust, Keyed

$2.49

$

In Stock, only 2 left!

0

10

Lawn-Boy 65-2720

Ring-Klip. Special

$1.49

$

In Stock, Qty 6

0

11

Lawn-Boy 65-4710

Ring-Friction

$3.49

$

In Stock, Qty 5

0

12

Lawn-Boy 65-4760

Washer-Clutch, Plastic

$1.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 66-6050

Key-Rocking, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 8

0

Lawn-Boy 66-6040

Key-Rocking, RH
(Superseded to 139-6643)

Note: Not Illustrated

$7.49

$

In Stock, Qty 12

0

14

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

In Stock, Qty 18

0

15

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 614427

Cover Wheel
(Superseded to 94-1609)

$10.99

$

In Stock, Qty 5

0

17

Lawn-Boy 92-1057

Bolt-Wheel

$3.99

$

In Stock, Qty 7

0

18

Lawn-Boy 92-1042

Wheel Ass'y-8"

$55.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 20+

0

20

$18.99

$

Usually ships in 3-6 days

0

$2.99

$

In Stock, only 2 left!

0

$1.99

$

In Stock, Qty 20+

0
