10310 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 006900001 - 006999999) (1996) REAR CATCHER ASSEMBLY (MODEL NO. 10310 ONLY) Parts Diagram
Silver Series Walk-Behind Mower

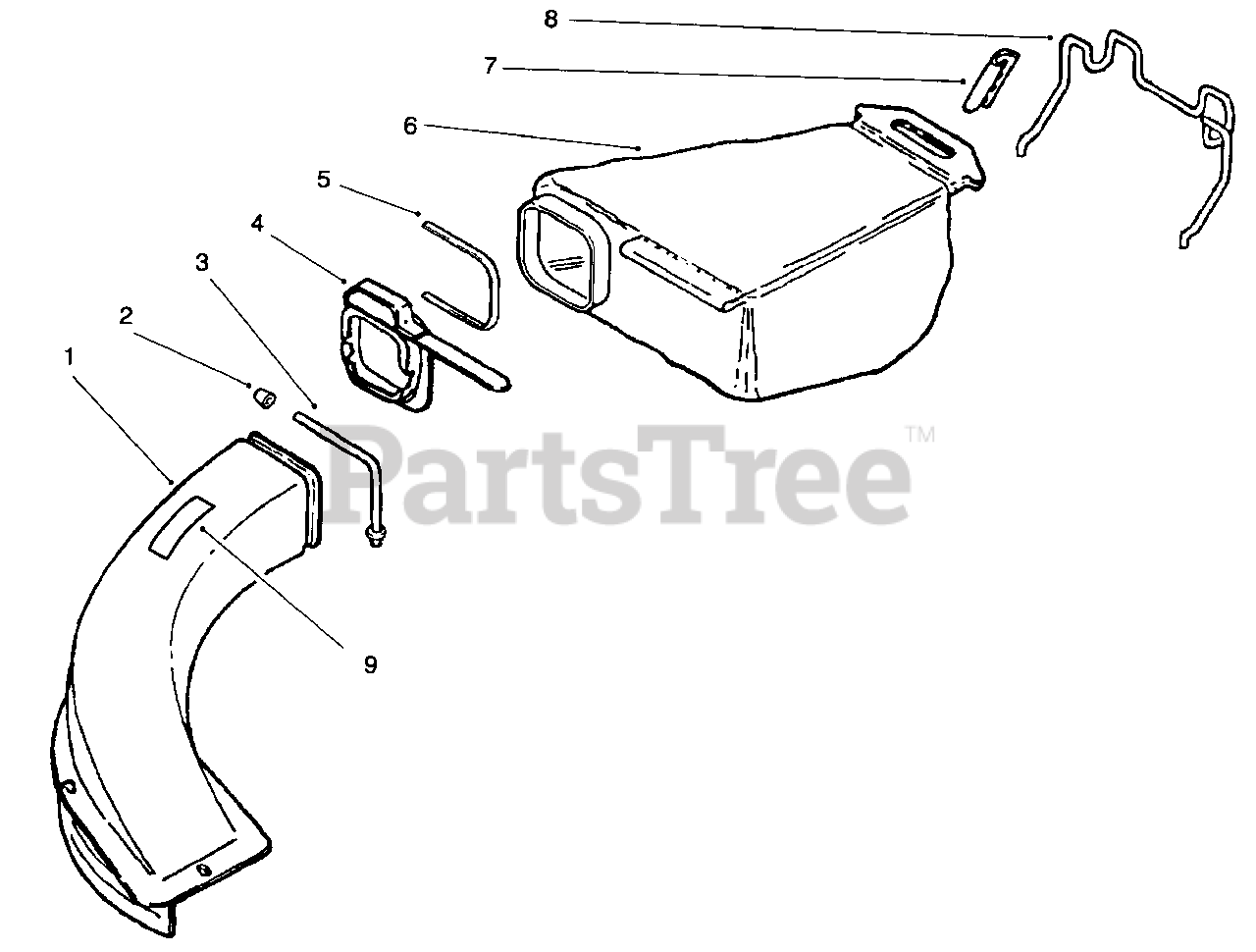

REAR CATCHER ASSEMBLY (MODEL NO. 10310 ONLY) Parts Diagram
Lawn-Boy 684729
Chute & Support Assembly (Incl. Ref. #2, 3 & 9)
$
$
Not available
Lawn-Boy 614589
Nut-Cap
$
$
Not available
Lawn-Boy 614591
Chute Support
$
$
Not available
$161.99
$
Usually ships in 3-6 days
Lawn-Boy 614700
Tie Strap
$7.99
$
Usually ships in 3-6 days
6
Bag Assembly
Note: Includes Ref. #5 and instruction sheet for installing bag to adapter assembly. Order via model #89801.
$
$
Not available
$
$
Not available
Lawn-Boy 613455
Wide Hanger
$77.99
$
In Stock, only 4 left!
Lawn-Boy 613463
Narrow Hanger
$72.99
$
Usually ships in 3-6 days
Lawn-Boy 92-2919
Decal-Danger
$
$
Not available
