10310 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 004900001 - 004999999) (1994) DECK & WHEEL ASSEMBLY (SELF PROPELLED) Parts Diagram

Silver Series Walk-Behind Mower

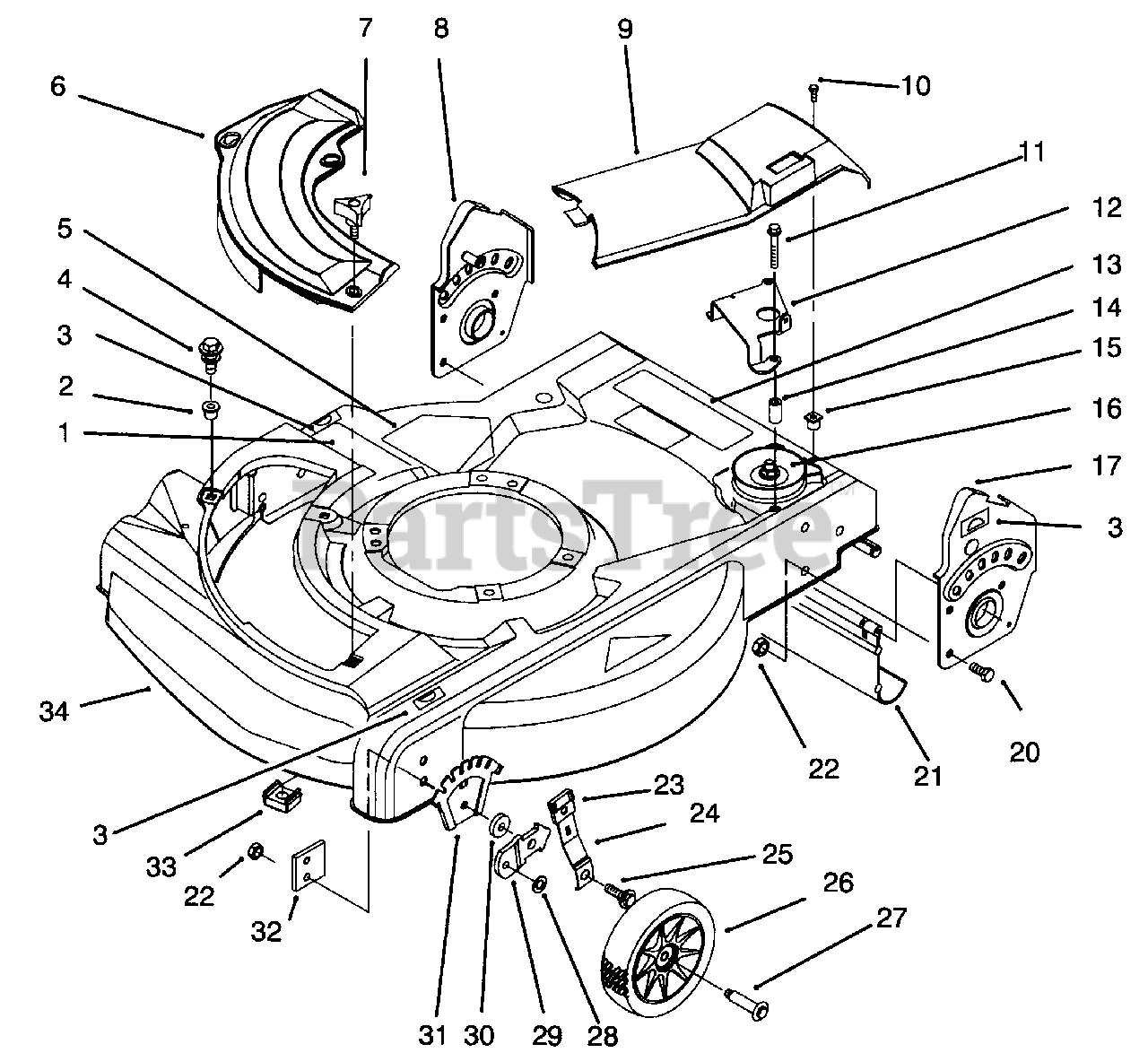

DECK & WHEEL ASSEMBLY (SELF PROPELLED) Parts Diagram

  • Title

1

Lawn-Boy 92-1097

Decal-Danger

$

$

Not available

2

Lawn-Boy 604604

Grommet-Plastic
(Superseded to 94-1610)

$1.49

$

In Stock, Qty 9

0

3

Lawn-Boy 92-2915

Decal-H.O.C. L.H.

$6.49

$

Usually ships in 3-6 days

0

Lawn-Boy 92-2914

Decal-H.O.C. R.H.

Note: Not Illustrated

$

$

Not available

4

Lawn-Boy 614677

Screw-Thread Forming

$4.49

$

In Stock, Qty 12

0

5

Lawn-Boy 39-5770

Decal-Danger

$8.99

$

In Stock, Qty 8

0

6

Lawn-Boy 92-8630

Plate-Cover, Mulch

$

$

Not available

Lawn-Boy 607560

Plate-Cover
(Superseded to 95-7052)

Note: Not Illustrated

$36.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 614682

Knob
(Superseded to 98-8332)

$5.49

$

In Stock, Qty 16

0

8

Lawn-Boy 92-7723

Handle Bracket Ass'y-R.H.
(Superseded to 105-8602)

$45.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 614671

Cover-Drive
(Superseded to 92-8649)

$

$

Not available

10

Lawn-Boy 32144-115

Screw
(Superseded to 92-9665)

$6.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 49-2040

Screw-Thread Forming

$2.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 92-7728

Guide-Transmission
(Superseded to 92-7728-03)

$7.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 92-4981

Decal-Warning

$

$

Not available

15

Lawn-Boy 605120

Grommet-Shroud Mtg.

$4.49

$

In Stock, Qty 9

0

16

Lawn-Boy 92-7735

Gear Case Ass'y
(Superseded to 104-7671)

$

$

Not available

17

Lawn-Boy 92-7724

Handle Bracket Ass'y-L.H.
(Superseded to 105-8604)

$

$

Not available

20

Lawn-Boy 322-3

Screw-Hex. Hd.

$0.99

$

In Stock, Qty 13

0

21

Lawn-Boy 92-8647

Shield-Trailing

$41.99

$

In Stock, only 1 left!

0

22

Lawn-Boy 3296-29

Nut

$2.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 92-1008

Knob-H.O.C.

$14.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 614687

Arm-Spring

$21.99

$

In Stock, only 3 left!

0

25

Lawn-Boy 614672

Bolt-Shoulder

$2.99

$

In Stock, Qty 6

0

26

Lawn-Boy 684776

Wheel Assembly-6"

$37.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 92-1099

Bolt-Wheel

$8.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 40-1940

Washer

$2.99

$

In Stock, Qty 18

0

29

Lawn-Boy 614637

Bracket-H.O.C.
(Superseded to 95-7403-03)

$

$

Not available

30

Lawn-Boy 92-4890

Washer

$8.99

$

In Stock, only 2 left!

0

31

Lawn-Boy 92-4881

Plate H.O.C.
(Superseded to 92-4881-03)

$29.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 92-7731

Plate-Baffle

$10.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 613765

Nut-Cage

$9.99

$

In Stock, Qty 9

0

34

Lawn-Boy 13-4369

Housing & Baffle Ass'y (Incl. Ref. # 1-5, & 13)
(Superseded to 98-4477)

$316.99

$

Usually ships in 3-6 days

0
