1031 - Grass Handler Garden Tractor (1986) (J.C. Penney) Parts Parts Diagram

Garden Tractor

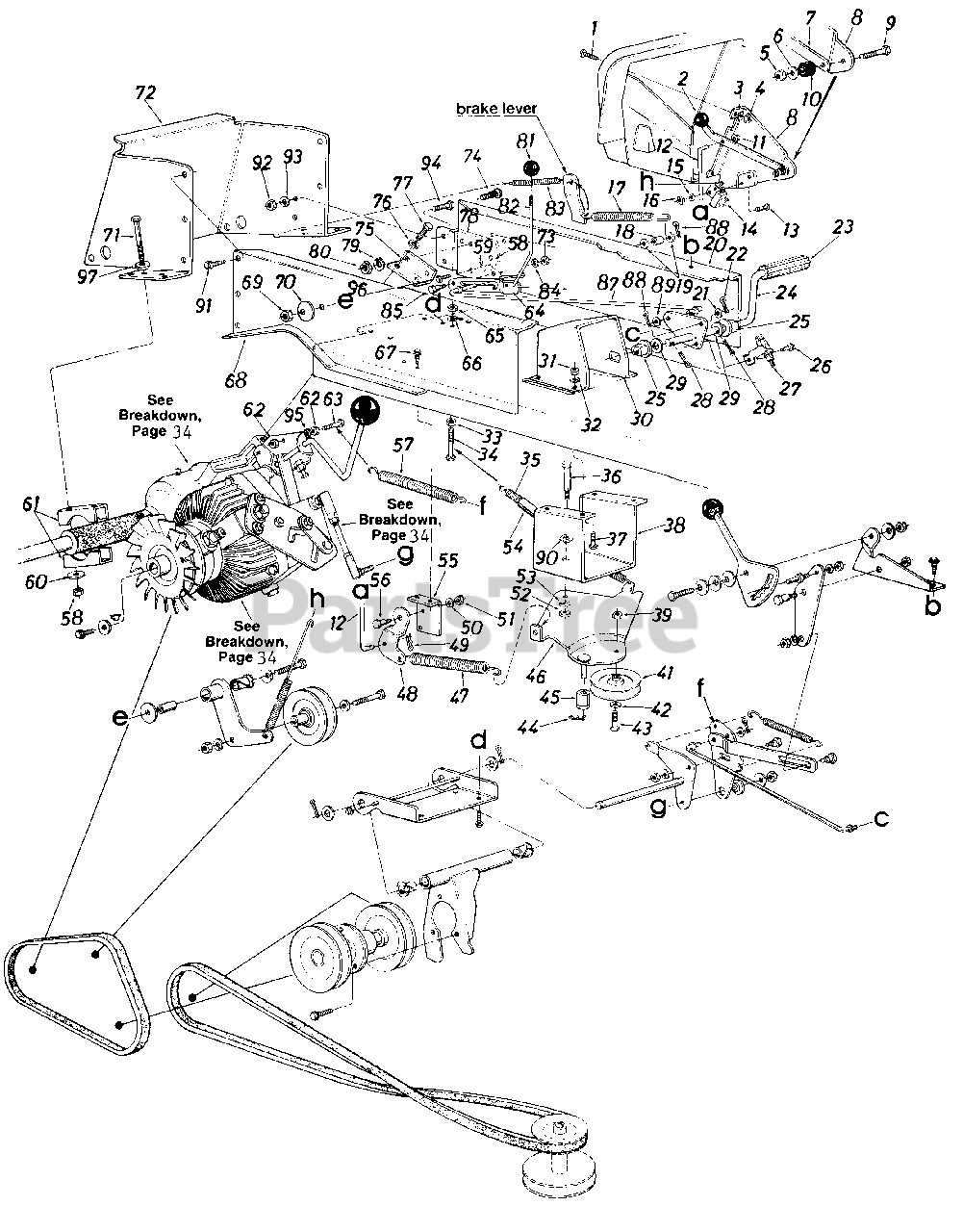

Parts Parts Diagram

  • Title

1

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

2

MTD 720-0165

Knob-Blade Clutch
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

3

UNKNOWN

$

$

Not available

4

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

6

MTD 736-0173

Fl-Wash. 1/4" I.D. x .75" O.D.

$4.49

$

In Stock, Qty 20+

0

7

MTD 747-0513

PTO Lever

$

$

Not available

8

MTD 13950

Deck Clutch Control Brkt.

$

$

Not available

9

MTD 710-0106

Hex Bolt 1/4-20 x .75" Lg.*

$3.99

$

In Stock, Qty 12

0

10

MTD 735-0126

Rubber Wash. .33" I.D. x .87" O.D.
(Superseded to 735-0126A)

$

$

Not available

11

MTD 726-0106

Push Cap /4/1 Rod

$3.99

$

Usually ships in 3-6 days

0

12

MTD 747-0307

Deck Control Rod

$47.99

$

In Stock, only 1 left!

0

13

MTD 710-0473

Truss Mach. Scr. #10-24 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

14

MTD 725-0465

Safety Switch
(Superseded to 925-0465A)

Note: (Deck)

$30.99

$

In Stock, only 1 left!

0

15

MTD 736-0147

Ext. L-Wash. #10 Scr.
(Superseded to 936-0147)

$3.49

$

Usually ships in 3-6 days

0

16

MTD 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

17

MTD 732-0475

Extension Spring .75" O.D. x 5.56" Lg.

$

$

Currently unavailable

18

MTD 750-0497

Spacer .375" I.D. x .625" O.D. x .445" Lg.

$10.99

$

Usually ships in 3-6 days

0

19

MTD 736-0267

Fl-Wash. .385" I.D. x .87"O.D.

$4.49

$

In Stock, Qty 20+

0

20

MTD 16443

Side Panel Upper Frame-LH.

$

$

Currently unavailable

21

MTD 736-0267

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

22

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

23

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

24

MTD 16164

Foot Pedal Brkt. Ass'y.

$

$

Currently unavailable

25

MTD 748-0209

Flange Brg. .630" I.D. x 1.25" O.D.
(Superseded to 948-0209)

$22.99

$

Usually ships in 3-6 days

0

26

MTD 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 725-0268

Safety Switch
(Superseded to 925-0268)

$39.99

$

Usually ships in 3-6 days

0

28

MTD 714-0115

Cotter Pin 118" Dia. x 1.00"

$3.99

$

In Stock, only 2 left!

0

29

MTD 736-0187

Fl-Wash. .640" I.D. x .24" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 12850

Steering Gear Support Ass'y.

$

$

Not available

31

MTD 712-0267

Fl-Wash. .385" I.D. x .87" O.D.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

34

MTD 710-0510

Hex Bolt 1/4-20 x 2.0" Lg.

$11.99

$

In Stock, only 1 left!

0

35

MTD 732-0308

Extension Spring .50" O.D. x 6.37" Lg.
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

36

MTD 738-0155

Shld. Bolt 7/16" Dia. x .16"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

37

MTD 710-0376

Hex Bolt 5/16-18 x 1.00"*

$3.99

$

In Stock, Qty 5

0

38

MTD 13826

Idler Mtg. Brkt.-Deck

$

$

Not available

39

MTD 712-0181

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

41

MTD 756-0293

"V"-Idler Pulley
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

42

MTD 736-0300

Fl-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

43

MTD 710-0342

Hex Bolt 3/8-16 x 1.75" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

44

MTD 714-0104

Cotter Pin 5/16" Rod

$4.49

$

In Stock, Qty 20+

0

45

MTD 748-0278

Spacer
(Superseded to 948-0278)

$11.99

$

In Stock, Qty 5

0

46

MTD 13893

Idler Brkt. Ass'y.

$

$

Currently unavailable

47

MTD 732-0478

Extension Spring-Deck Control
(Superseded to 932-0478)

$12.99

$

In Stock, Qty 12

0

48

MTD 13887

Deck Control Pivot Brkt.
(Superseded to 13887A)

$

$

Not available

49

MTD 714-0104

Cotter Pin 5/16" Rod

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

52

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

53

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

MTD 731-0483

Convoluted Conduit .50" I.D. x 4" Lg.
(Superseded to 731-0757-4)

$15.99

$

In Stock, only 2 left!

0

55

MTD 13833

Parking Brake Cam Mtg. Brkt.

$

$

Not available

56

MTD 738-0155

Shld. Bolt 7/16" Dia. x .16"
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

57

MTD 732-0384

Extension Spring
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

58

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

59

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

60

MTD 736-0331

Bell-Wash .39" I.D. x 1.13'

$3.99

$

In Stock, Qty 20+

0

61

MTD 13892

Rear Axle Brkt.

$

$

Not available

62

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

63

MTD 710-0624

Hex Scr. 5/16-24 x 1.5"

Note: (Special)

$5.99

$

Usually ships in 3-6 days

0

64

MTD 16170

Parking Brake Cam

$

$

Currently unavailable

65

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

66

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

67

MTD 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

68

MTD 16150

Side Panel Upper Frame-R.H.

$

$

Currently unavailable

69

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

70

MTD 736-0227

Fl-Wash. .39" I.D. x 1.5" O.D.

$6.49

$

In Stock, Qty 13

0

71

MTD 710-0316

Hex Bolt 3/8-16 x 3.50" Lg.

$

$

Not available

72

MTD 13813

Hitch Plate

$

$

Not available

73

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

74

MTD 710-0617

Rd. Hd. Ribbed Neck Bolt 3/8-24 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

75

MTD 16152

Mounting Brkt. Transaxle

$

$

Currently unavailable

76

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

77

MTD 710-0514

Hex Bolt 3/8-16 x 1.00" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

78

MTD 16169

Reinforcement Plate-Frame

$

$

Not available

79

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

80

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

81

MTD 720-0166

Gear Shift Knob

$

$

Not available

82

MTD 747-0672

Parking Brake Link

$

$

Not available

83

MTD 732-0409

Extension Spring .38" O.D. x 3.18" Lg.
(Superseded to 932-0409)

$

$

Not available

84

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

85

MTD 738-0147

Shld. Bolt .500" Dia. x .170

$

$

Not available

87

MTD 747-0505

Rod-Brake .38" Dia. x 1 9.3" Lg.

$

$

Not available

88

MTD 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

89

MTD 736-0267

Fl-Wash. .385" I.D. x .87"

$4.49

$

In Stock, Qty 20+

0

90

MTD 736-0141

Wave Wash.
(Superseded to 936-0141)

$6.99

$

Usually ships in 3-6 days

0

91

MTD 710-0726

Hex AB-Tap Scr. 5/16 x .75"

$4.49

$

In Stock, Qty 20+

0

92

MTD 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

93

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

94

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

95

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

96

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

97

MTD 736-0262

Fl-Wash. .385" I.D. x .870" O.D.

$3.99

$

In Stock, Qty 10

0
