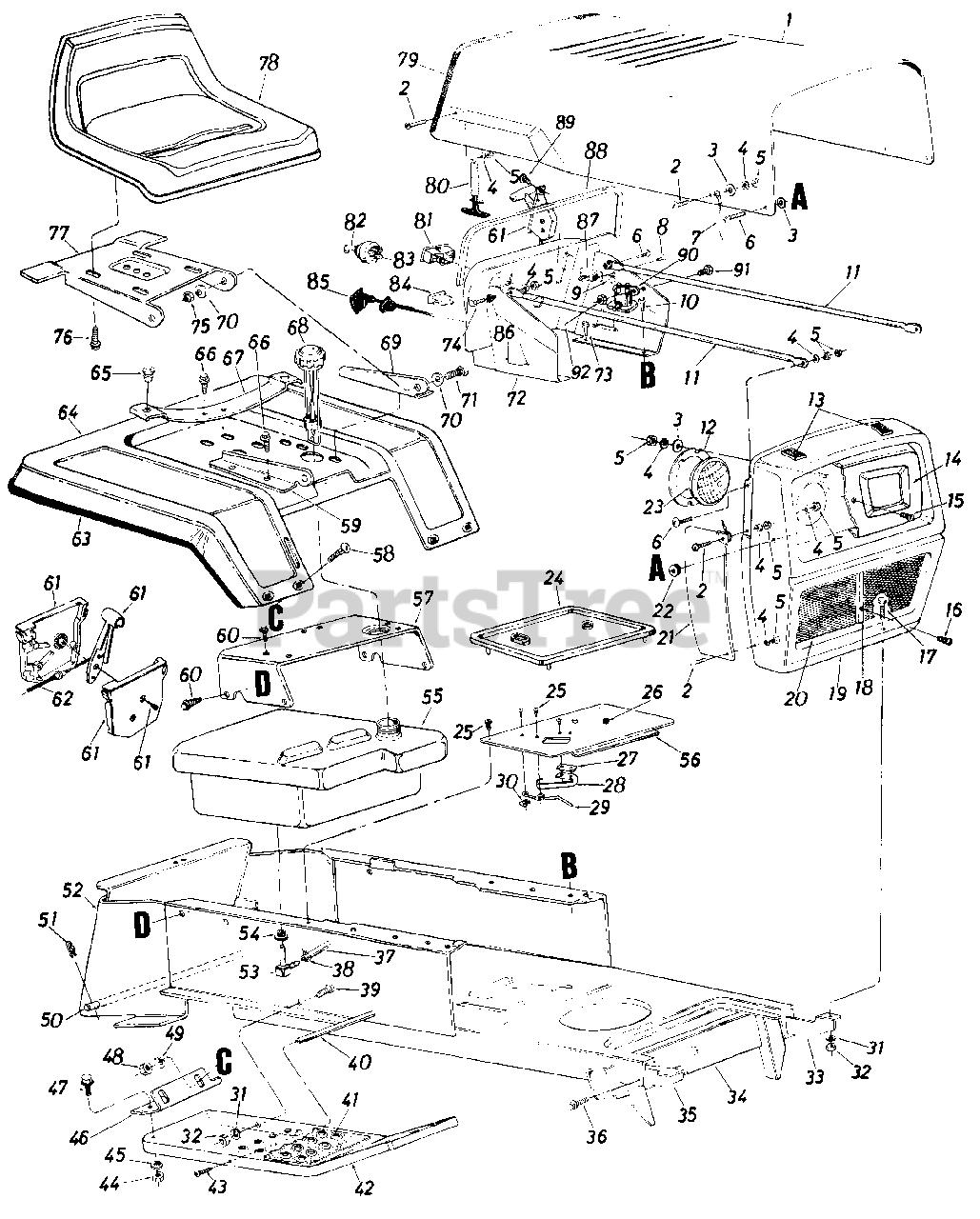

1031 - Grass Handler Garden Tractor (1986) (J.C. Penney) Parts Parts Diagram

Garden Tractor

Parts Parts Diagram

  • Title

1

MTD 13808

Hood

Variations

MTD 13808-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 13808-0638

No Longer Available HOOD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

3

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, only 4 left!

0

4

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

5

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

6

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

7

MTD 727-0199

Hood Stop

$

$

Not available

8

MTD 710-0351

Hex Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 2 left!

0

9

MTD 712-0344

Speed Nut #10Z

$

$

Not available

10

MTD 710-0599

Hex Thd. Rolling Scr. 1/4" x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

11

MTD 749-0651

Grille Positioning Rod

$

$

Not available

12

MTD 09960

Head Lamp Retainer

$

$

Not available

13

MTD 722-0135

PVC Foam Strip 1/2" x 1.00" x 2.00" Lg.

$

$

Not available

14

MTD 731-0465

Head Lamp Bezel

$

$

Not available

15

MTD 710-0148

Truss Mach. Scr. #10-24 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

16

MTD 710-0425

Truss Mach. Scr. #10-24 x .62" Lg.

$4.99

$

Usually ships in 3-6 days

0

17

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

18

MTD 723-0347

Center Moulding

$

$

Currently unavailable

19

MTD 13800

Grille-Chrome

$

$

Currently unavailable

20

MTD 13730

Grille Insert-Screen

$

$

Not available

21

MTD 14748

Grille Side Panel-R.H.

$

$

Currently unavailable

MTD 14749

Grille Side Panel-L .H.

Note: (Not Shown)

$

$

Currently unavailable

22

MTD 735-0144

Rubber Wash. .50" I.D. x 1.0" O.D. .25 Thk.

$

$

Not available

23

MTD 725-0222

Head Lamp
(Superseded to 925-0222)

$58.99

$

In Stock, Qty 5

0

24

MTD 731-0730

Trans. Cover-Bezel

$

$

Not available

25

MTD 710-0227

Hex AB-Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 15

0

26

MTD 731-0405

Snap Bushing

$

$

Not available

27

MTD 736-0222

Insulator Nut Plate

$5.99

$

In Stock, only 3 left!

0

28

MTD 725-0759

Switch Spring
(Superseded to 753-0579)

$

$

Not available

29

MTD 732-0476

Shift Lever Spring

$

$

Not available

30

MTD 712-0147

Speed Nut #10-24 U-Type

$6.99

$

Usually ships in 3-6 days

0

31

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 13863

Grille Mount Brkt.-L.H.

$

$

Not available

34

MTD 13820

Lower Frame Ass'y.

$

$

Not available

35

MTD 13862

Grille Mount Brkt.-R.H.

$

$

Not available

36

MTD 710-0726

Hex Thd. Rolling Scr. 5/16" x.75" Lg.

$4.49

$

In Stock, Qty 20+

0

37

MTD 751-0173

Gas Line 46" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

38

MTD 726-0207

Hose Clamp 3/8"

$

$

Not available

39

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

40

MTD 738-0435

Running Board Rod

$

$

Not available

41

MTD 723-0360

Foot Pad

$

$

Not available

42

MTD 13828

Running Board-R.H.

$

$

Not available

MTD 13827

Running Board-L.H.

Note: (Not Shown)

$

$

Not available

43

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

44

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0242

Bell-Wash. .34" I.D. x .87 O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 15846

Fender Brkt.-R.H.

Variations

MTD 15846-0637

Fender Brkt. R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15847

Fender Brkt.-L.H.

Note: (Not Shown)

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

47

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

48

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

49

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

50

MTD 738-0482

Hitch Rod

$

$

Not available

51

MTD 714-0147

Internal Cotter Pin

$4.99

$

In Stock, Qty 7

0

52

MTD 13813

Hitch Plate

$

$

Not available

53

MTD 751-3054

90ø Nipple

$

$

Currently unavailable

54

MTD 735-0149

Bushing
(Superseded to 935-0149)

Note: (Fuel Tank)

$2.99

$

In Stock, Qty 20+

0

55

MTD 751-0367

Fuel Tank

$

$

Not available

56

MTD 16172

Trans.-Cover

$

$

Currently unavailable

57

MTD 15849

Seat Mounting Channel

$

$

Not available

58

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.*
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

59

MTD 15802

Seat Bracket-R.H.

$

$

Not available

60

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

61

MTD 831-0823

Throttle Control Box Ass'y.
(Superseded to 831-0823A)

$32.99

$

In Stock, Qty 20+

0

62

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

63

MTD 731-0511

Trim Strip-81"

$3.99

$

Usually ships in 3-6 days

0

64

MTD 15886

Rear Fender

Variations

MTD 15886-0638

No Longer Available FENDER-RR - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

65

MTD 731-0555

Grommet

$

$

Not available

66

MTD 710-0607

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.

$6.99

$

In Stock, Qty 11

0

67

MTD 732-0431

Seat Spring

$

$

Currently unavailable

68

MTD 751-0370

Gas Cap w/Gauge

$

$

Not available

69

MTD 15803

Seat Bracket-L.H.

$

$

Not available

70

MTD 736-0242

Bell-Wash. .34" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

71

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

72

MTD 16425

Dash Panel Ass'y.

$

$

Currently unavailable

73

MTD 710-0726

Hex Thd. Rolling Scr. 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

74

MTD 710-0166

Truss Mach. Scr. 1/4-20 x 1.0" Lg.
(Superseded to 710-0166A)

$7.49

$

In Stock, only 1 left!

0

75

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

76

MTD 710-0623

Hex Wash. Hd. AB-Tap Scr. 3/8 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

77

MTD 15607

Seat Pivot Bracket
(Superseded to 783-0039A)

$71.99

$

Usually ships in 3-6 days

0

78

MTD 757-0308

Seat Ass'y.

$

$

Currently unavailable

MTD 757-0318

Seat with Safety Switch

$

$

Not available

79

MTD 731-0511

Vinyl Moulding Strip-30"

$3.99

$

Usually ships in 3-6 days

0

80

MTD 723-0296

Hood Latch Ass'y.

$

$

Not available

81

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

82

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

83

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

84

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, Qty 5

0

85

MTD 746-0613

Choke Control Comp.
(Superseded to 946-0613A)

$27.99

$

In Stock, Qty 6

0

86

MTD 736-0222

External Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

87

MTD 725-0459

Circuit Breaker 8 Amp.
(Superseded to 753-0685)

$

$

Not available

88

MTD 731-0511

Vinyl Moulding Strip-29"

$3.99

$

Usually ships in 3-6 days

0

89

MTD 710-0779

Truss Mach. AB-Tap Scr. #10 x .50" Lg.
(Superseded to 710-0779A)

$4.49

$

In Stock, Qty 12

0

90

MTD 725-0771

Solenoid
(Superseded to 925-0771)

$35.99

$

In Stock, only 1 left!

0

91

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

92

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 10

0
