10309 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) BAGGING ASSEMBLY Parts Diagram

Silver Series Walk-Behind Mower

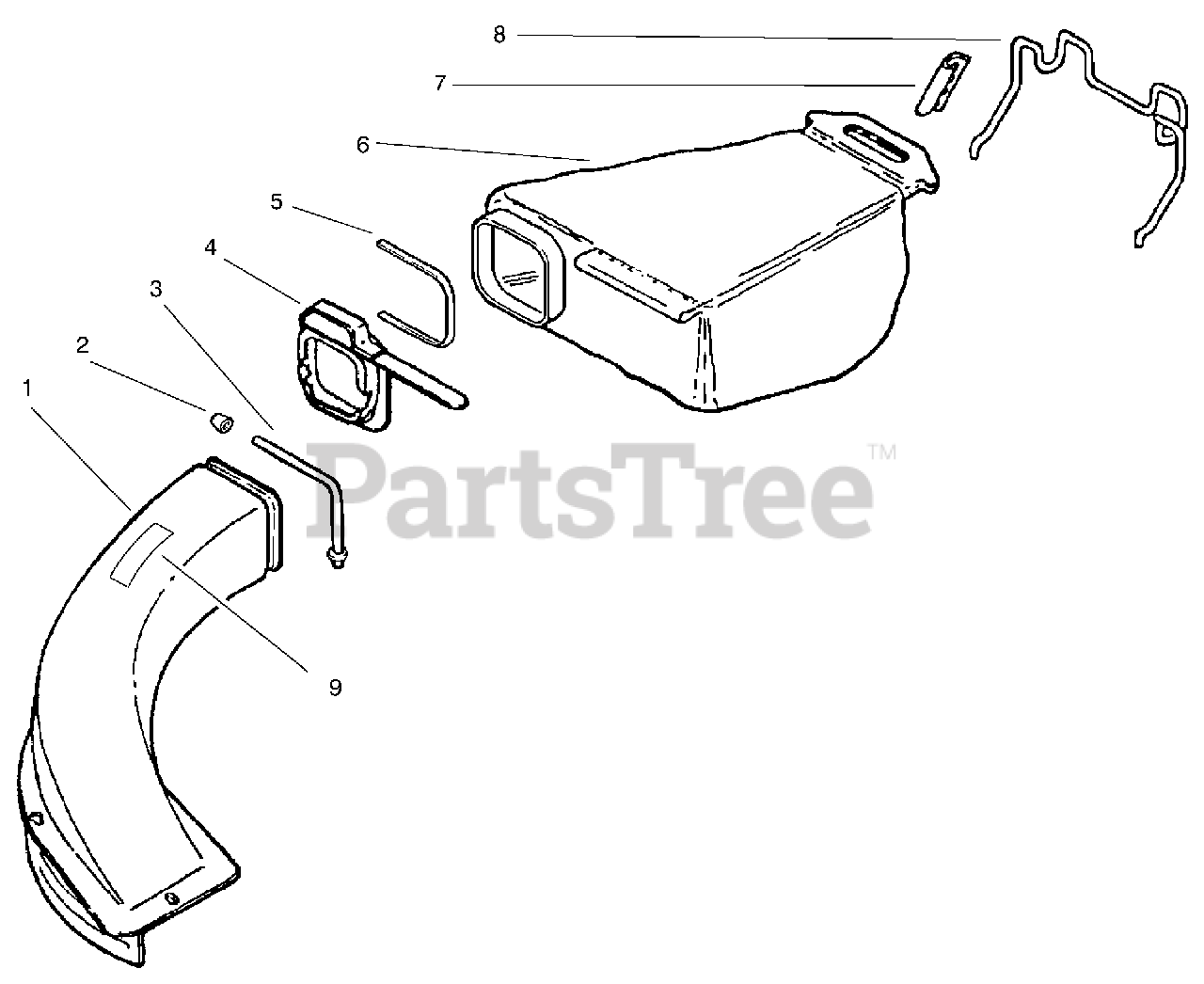

BAGGING ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 684729

ASM-Chute & Support

$

$

Not available

2

Lawn-Boy 614589

Nut-Cap

$

$

Not available

3

Lawn-Boy 614591

Chute Support

$

$

Not available

4

Lawn-Boy 684727

Adaptor Assembly
(Superseded to 684727-03)

$153.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 614700

Tie Strap

$7.49

$

Usually ships in 3-6 days

0

6

*

ASM-Bag & Adapter

$

$

Not available

7

Lawn-Boy 613462

Hanger-Clamp
(Superseded to 613462-03)

$

$

Not available

8

Lawn-Boy 613455

Hanger-Wire

$73.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 92-2919

Decal-Danger

$

$

Not available
