10307 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 007900001 - 007999999) (1997) RECOIL STARTER ASSEMBLY 590702 Parts Diagram

Silver Series Walk-Behind Mower

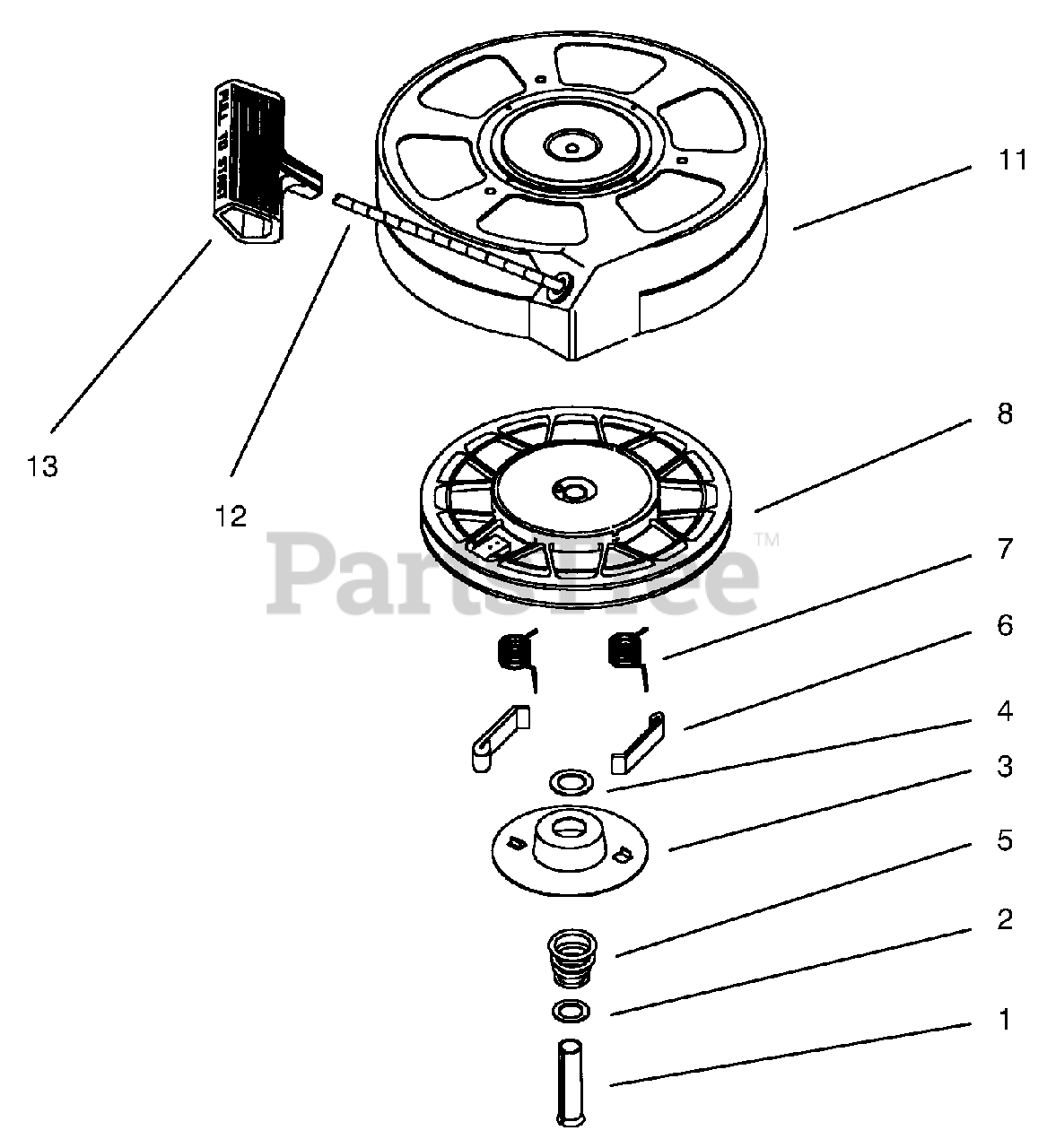

RECOIL STARTER ASSEMBLY 590702 Parts Diagram

  • Title

Lawn-Boy 590702

Recoil Starter

$

$

Currently unavailable

1

Lawn-Boy 590599A

Spring Pin (Incl. 4)

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Lawn-Boy 590696

Retainer

$

$

Currently unavailable

4

$

$

Currently unavailable

5

Lawn-Boy 590697

Brake Spring

$

$

Currently unavailable

6

Lawn-Boy 590698

Starter Dog

$

$

Currently unavailable

7

Lawn-Boy 590699

Dog Spring

$

$

Currently unavailable

8

Lawn-Boy 590700

Pulley & Rewind Spring Ass'y.

$

$

Currently unavailable

11

Lawn-Boy 590703

Starter Housing Ass'y (40 degree grommet)

$

$

Currently unavailable

12

Lawn-Boy 590535

Starter Rope ( 98" X 9/64" dia.)

$

$

Currently unavailable

13

Lawn-Boy 590701

Starter Handle

$

$

Currently unavailable
