10302 - Lawn-Boy Silver Series Walk-Behind Mower (SN: 005900001 - 005999999) (1995) REAR AXLE ASSEMBLY (MODEL NO. 10302 & 10310 ONLY) Parts Diagram

Silver Series Walk-Behind Mower

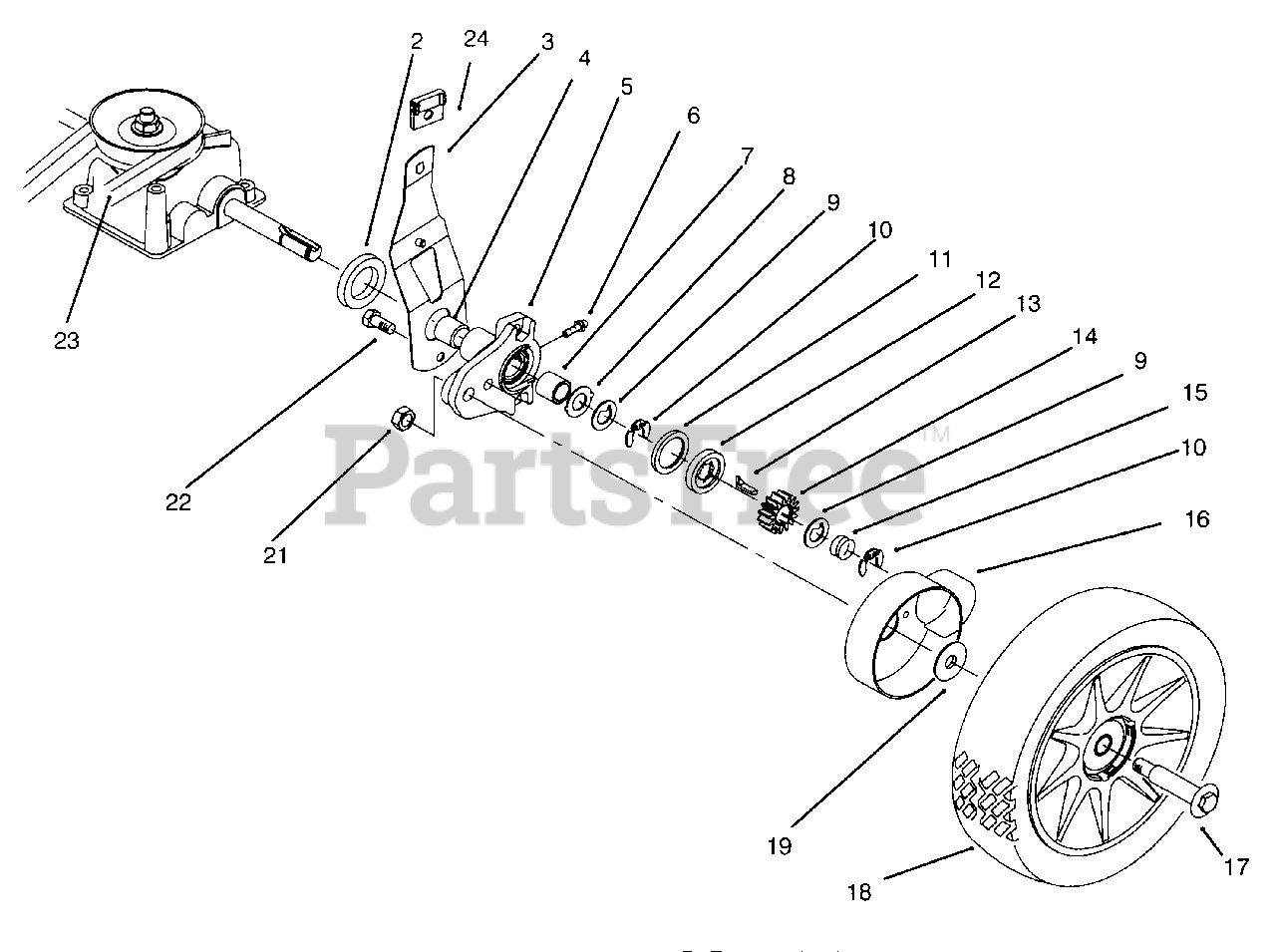

REAR AXLE ASSEMBLY (MODEL NO. 10302 & 10310 ONLY) Parts Diagram

  • Title

2

Lawn-Boy 614447

Spacer-Axle Shaft

$3.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 92-1004

Spring Arm Ass'y

$

$

Not available

4

Lawn-Boy 70-9760

Bushing

$4.99

$

In Stock, Qty 6

0

5

Lawn-Boy 92-7746

Pivot Arm Ass'y-Rear (Incl. Ref.#4, 6, & 8)

$43.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 614442

Fitting-Grease

$

$

Not available

7

Lawn-Boy 47-2900

Bushing

$6.49

$

In Stock, Qty 5

0

8

Lawn-Boy 65-4730

Washer-Thrust Pivot Arm

$2.49

$

In Stock, Qty 9

0

9

Lawn-Boy 65-4740

Washer-Thrust, Keyed

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 65-2720

Ring-Klip. Special

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 65-4710

Ring-Friction

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 65-4760

Washer-Clutch, Plastic

$1.49

$

In Stock, Qty 17

0

13

Lawn-Boy 66-6050

Key-Rocking, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 16

0

Lawn-Boy 66-6040

Key-Rocking, RH
(Superseded to 139-6643)

Note: Not Illustrated

$7.49

$

In Stock, Qty 8

0

14

Lawn-Boy 65-4750

Gear-Pinion

$11.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 65-4720

Spring-Compression

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 614427

Cover Wheel
(Superseded to 94-1609)

$8.99

$

In Stock, Qty 5

0

17

Lawn-Boy 92-1057

Bolt-Wheel

$3.99

$

In Stock, Qty 15

0

18

Lawn-Boy 92-1042

Wheel Ass'y-8"

$49.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 614426

Washer-Stepped

$3.49

$

In Stock, Qty 13

0

21

Lawn-Boy 610358

Nut

$2.49

$

In Stock, only 2 left!

0

22

Lawn-Boy 32144-85

Screw

$1.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 92-1043

V-Belt

$18.99

$

In Stock, only 2 left!

0

24

Lawn-Boy 92-1008

Knob

$12.99

$

In Stock, only 2 left!

0
