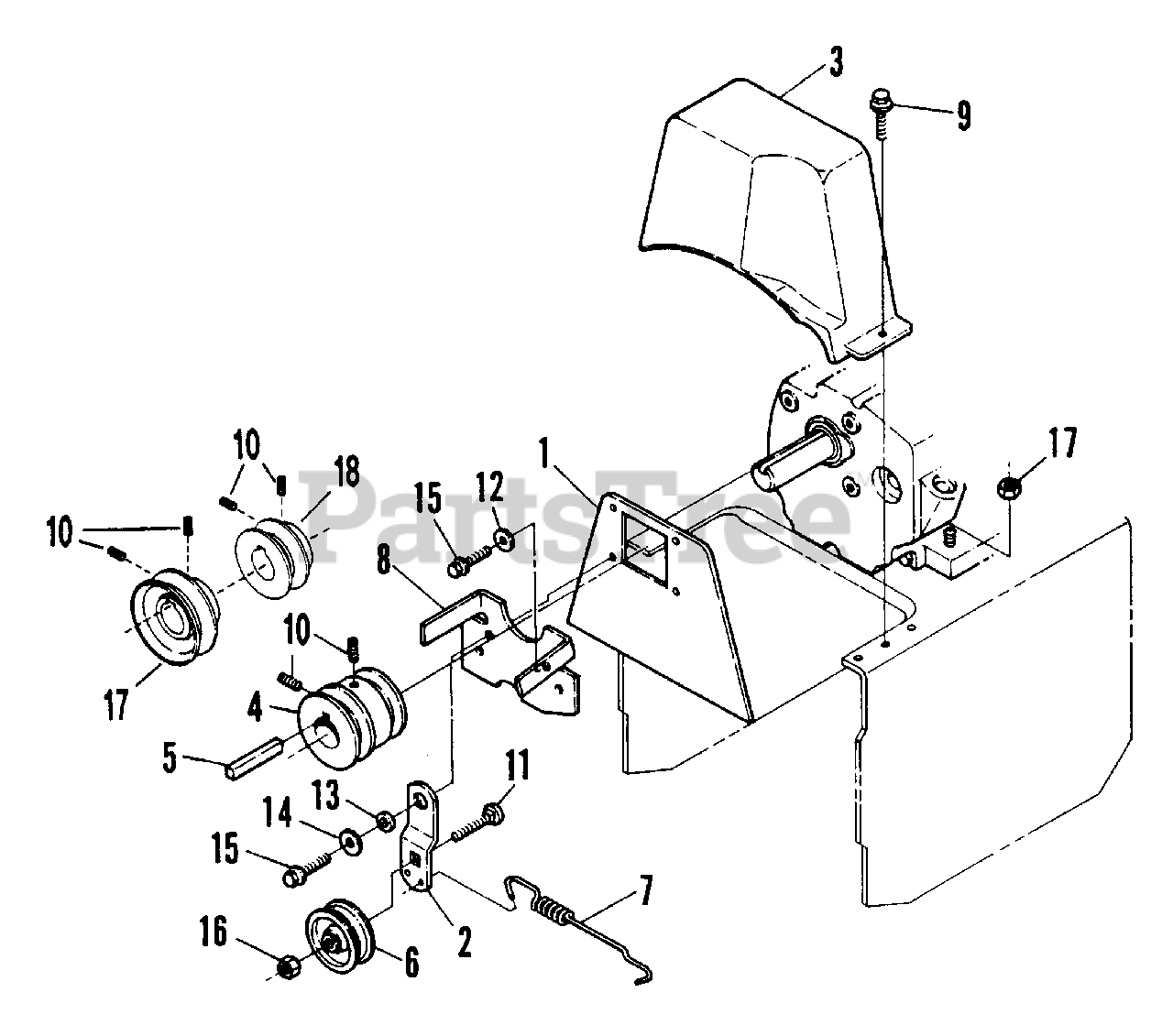

10301 (86569) - Snapper 30" Snow Thrower, 10hp Engines, Pulley, Idler Parts Diagram

30" Snow Thrower, 10hp

Engines, Pulley, Idler Parts Diagram

  • Title

1

Snapper 7037969

GUARD, Engine
(Superseded to 7038545YP)

Note: (Series 1 & 2)

$17.99

$

Usually ships in 2-12 days

0

Snapper 7038545

GUARD, Engine
(Superseded to 7038545YP)

Note: (Series 3 & 4)

$17.99

$

Usually ships in 2-12 days

0

2

Snapper 7032128

ARM, Idler
(Superseded to 7032128YP)

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 7019689

COVER, Belt
(Superseded to 7017734YP)

$53.99

$

In Stock, only 3 left!

0

4

Snapper 7014145

SHEAVE, Engine

Note: (5 & 10 HP Tec. & 8 HP Briggs) ('86 Models & Earlier)

$

$

Not available

Snapper 7014900

SHEAVE, Engine

Note: (5 HP Briggs) ('86 Models & Earlier)

$

$

Not available

5

Snapper 7010210

KEY, 1/4 x 2" Square
(Superseded to 703890)

$4.99

$

In Stock, Qty 6

0

6

Snapper 7013850

IDLER
(Superseded to 7013850YP)

$20.99

$

In Stock, only 4 left!

0

7

Snapper 7013918

SPRING, Idler
(Superseded to 7013918YP)

$13.99

$

In Stock, only 1 left!

0

8

Snapper 7032150

FINGER, Belt
(Superseded to 7032150YP)

$45.99

$

Usually ships in 2-12 days

0

9

Snapper 7091084

SCREW, 1/4-20 x 3/8" Self-Tapping
(Superseded to 703583)

Note: Was 90302 (Series 1 & 2)

$4.99

$

In Stock, Qty 20+

0

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$3.99

$

In Stock, only 1 left!

0

10

Snapper 7090201

SCREW, 5/16-18 x 5/16" Socket Head Set
(Superseded to 7090201SM)

$

$

Not available

11

Snapper 7090791

BOLT, 3/8-16 x 1-1/2" Carriage
(Superseded to 7091945YP)

$4.49

$

In Stock, only 2 left!

0

12

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

Note: (Series 1 & 2)

$4.49

$

In Stock, only 2 left!

0

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, only 2 left!

0

13

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

14

Snapper 7013866

WASHER, 3/8" Flat
(Superseded to 7013866YP)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper 7090227

SCREW, 5/16-24 x 5/8" Hex Head Cap

Note: (Series 1 & 2)

$

$

Not available

Snapper 7091021

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

Note: (Used on Series 3 & 4 Models; black zinc coated.)

$4.49

$

In Stock, Qty 5

0

16

Snapper 7090499

NUT, 3/8-16 Hex Top Lock
(Superseded to 7090499YP)

Note: (Series 1 & 2)

$3.49

$

Usually ships in 2-12 days

0

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070 (Used on Series 3 & 4 Models; black zinc coated.)

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7015376

PULLEY, Traction
(Superseded to 7015376YP)

Note: ('87 Models & Later)

$104.99

$

Usually ships in 2-12 days

0

18

Snapper 7015377

PULLEY, Traction
(Superseded to 7015377YP)

Note: ('87 Models & Later)

$47.99

$

Usually ships in 2-12 days

0
