10300S (86438) - Snapper 30" Snow Thrower, 10hp Handles, Controls Parts Diagram

30" Snow Thrower, 10hp

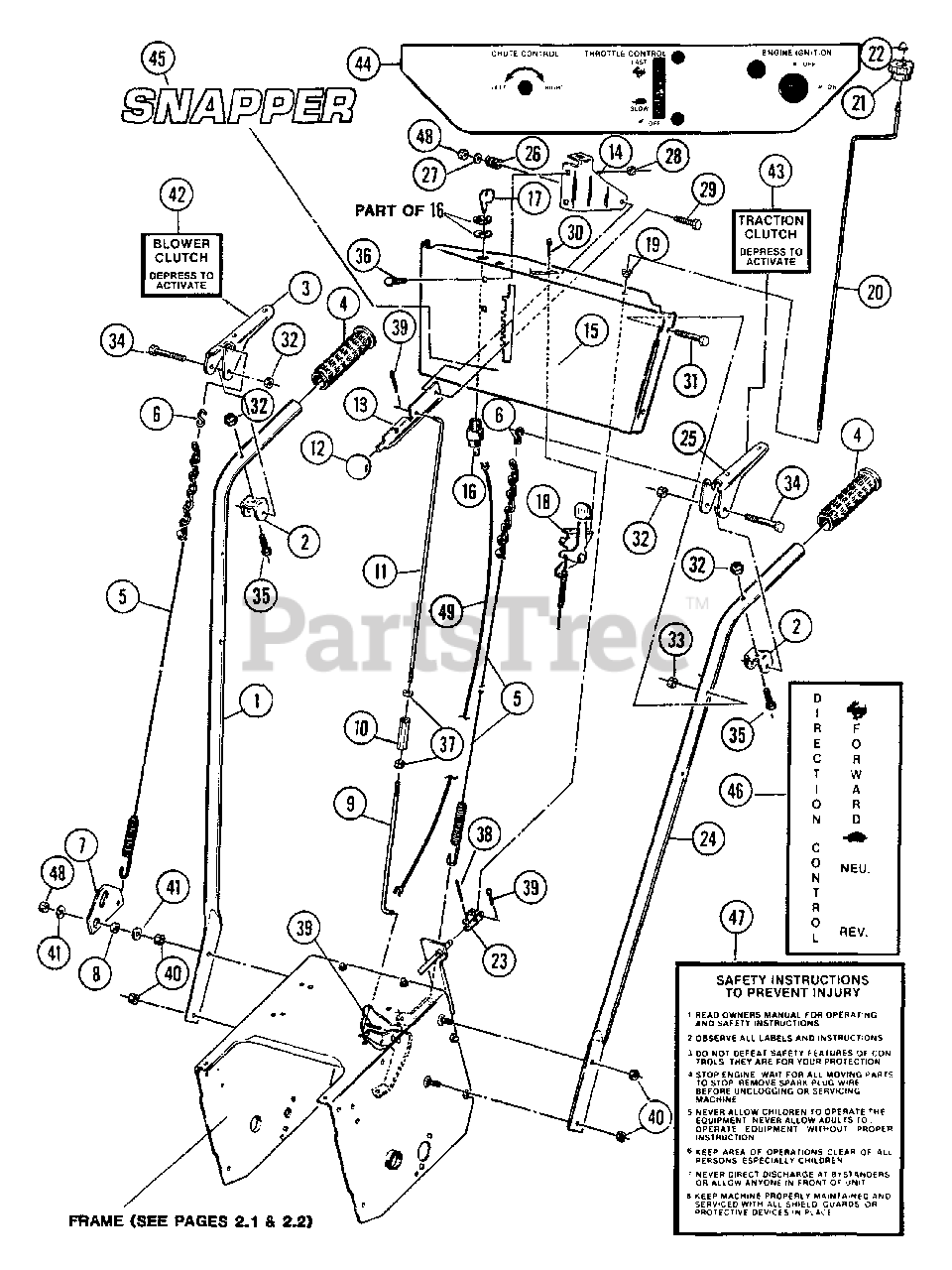

Handles, Controls Parts Diagram

  • Title

1

Snapper 7052028

ASSEMBLY, R.H. Handle Bar
(Superseded to 7052028YP)

Note: Was 39973 or 51271 (Includes items 1, 2, 32 & 35)

$222.99

$

In Stock, only 2 left!

0

2

Snapper 7032921

BRACKET, Handle
(Superseded to 7032921YP)

Note: Was 32119

$11.99

$

Usually ships in 2-12 days

0

3

Snapper 7032908

HANDLE, Right

Note: Was 39772

$

$

Not available

4

Snapper 7011870

GRIP, Handle
(Superseded to 1726317SM)

$8.49

$

In Stock, only 1 left!

0

5

Snapper 7018462

CABLE, Clutch
(Superseded to 7018462YP)

Note: (Includes Chain & Spring)

$

$

Not available

6

Snapper 7013917

S-HOOK
(Superseded to 7013917YP)

$3.99

$

In Stock, only 1 left!

0

7

Snapper 7032131

LEVER, Clutch
(Superseded to 7032131YP)

$31.99

$

Usually ships in 2-12 days

0

8

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper 7013887

ROD, Lower Shift

$

$

Not available

10

Snapper 7013889

CONNECTOR
(Superseded to 7016304YP)

$7.49

$

Usually ships in 2-12 days

0

11

Snapper 7014297

ROD, Upper Shift
(Superseded to 7014297YP)

Note: (Replaces 13888)

$23.99

$

In Stock, only 1 left!

0

12

Snapper 7012659

KNOB, Shift Handle
(Superseded to 7012659SM)

$

$

Not available

13

Snapper 7040660

HANDLE, Shift

Note: Was 32129

$

$

Not available

14

Snapper 7037962

BRACKET, Shift Lever
(Superseded to 7037962YP)

$20.99

$

Usually ships in 2-12 days

0

15

Snapper 7035059

PANEL, Control
(Superseded to 7035124YP)

$86.99

$

Usually ships in 2-12 days

0

16

Snapper 7011853

SWITCH, Ignition
(Superseded to 7011853YP)

Note: (See "12V Battery System" for electric start type)

$27.99

$

In Stock, only 3 left!

0

17

Snapper 7011138

KEY
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 7

0

18

Snapper 7018463

CONTROL, Throttle (Briggs Engines)

$

$

Not available

18

Snapper 7018464

CONTROL, Throttle (Tecumseh Engines)
(Superseded to 7018464YP)

$29.99

$

Usually ships in 2-12 days

0

19

Snapper 7012117

BUSHING
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 13

0

20

Snapper 7014298

CRANK, Chute

Note: Was 13886 (For 23" & 26" Units - used with item 23)

$10.99

$

Usually ships in 2-12 days

0

20

Snapper 7014298

CRANK, Chute

Note: (For 30" Units with U-joint item 34 "Collector Housing, Discharge Chute")

$10.99

$

Usually ships in 2-12 days

0

21

Snapper 7013901

KNOB, Chute Crank
(Superseded to 7013901YP)

$8.99

$

Usually ships in 2-12 days

0

22

Snapper 7013900

CAP, Push

$

$

Not available

23

Snapper 7032126

CONNECTOR, Chute Crank

Note: (Used with 13886 crank only)

$

$

Not available

24

Snapper 7052029

ASSEMBLY, L.H. Handle Bar
(Superseded to 7052029YP)

Note: Was 39972 or 51271 (Includes items 24, 2, 32 & 35)

$231.99

$

Usually ships in 2-12 days

0

25

Snapper 7032907

HANDLE, Left
(Superseded to 7032907YP)

Note: Was 39771

$29.99

$

Usually ships in 2-12 days

0

26

Snapper 7023933

SPRING, Shift Lever
(Superseded to 7023933YP)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7090188

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

28

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90771

$4.49

$

In Stock, Qty 10

0

29

Snapper 7090209

SCREW, 5/16-18 x 1" Hex Head Cap, Grade 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

30

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

31

Snapper 7091609

SCREW, 5/16-24 x 1-1/2" Hex Head Cap, Grade 2
(Superseded to 7091609SM)

Note: Was 90242

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 7090303

NUT, 1/4-28 Hex Top Lock
(Superseded to 703972)

$3.49

$

In Stock, Qty 8

0

33

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 20+

0

34

Snapper 7090112

SCREW, 1/4-24 x Hex Head Cap, Grade 5
(Superseded to 7090112YP)

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 7090552

SCREW, 1/4-28 x 1-3/8" Hex Head Cap, Grade 5
(Superseded to 703828)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7091604

BOLT, 1/4-20 x 1/2" Short Neck Carriage, Grade 5
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 7013877

PIN, 1/8" x 1" Roll
(Superseded to 7013877YP)

$3.49

$

In Stock, only 2 left!

0

39

Snapper 7091598

PIN, 1/8 x 1" Cotter
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

40

Snapper 7091601

NUT, 5/16-18 Hex Flange, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

41

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

42

Snapper 7013926

DECAL, Blower Clutch

$

$

Not available

43

Snapper 7013925

DECAL, Traction

$

$

Not available

44

Snapper 7018471

NLA - DECAL, Controls

$

$

Currently unavailable

45

Snapper 7019295

DECAL, Snapper
(Superseded to 7019295YP)

Note: Was 18593 or 18076

$13.99

$

In Stock, only 4 left!

0

46

Snapper 7013927

DECAL, Directional Control

$

$

Not available

47

Snapper 7013928

DECAL, Instruction
(Superseded to 7073461SM)

$4.99

$

Usually ships in 2-12 days

0

48

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

49

Snapper 7013916

NLA - WIRE, Ground 36"

$

$

Currently unavailable

Snapper 7014940

CABLE-TIE, 5.5" (Not shown)

$

$

Not available

Snapper 7015223

NLA-HANG-TAG, Initial Starting (Not shown)

$

$

Currently unavailable

Snapper 7060471

HARDWARE BAG (Not shown)

Note: (Contains items: 5(2), 6(2), 7,8,37,39,40(4) & 48(3) as well as 11938 (Spout Retainer) & 13865 (Shear Bolt))

$

$

Currently unavailable

Snapper 7060543

HARDWARE BAG (Not shown)

Note: (Contains items: 5(2), 6(2), 7,8,37,39,40(8), & 48(3) as well as 11938 (Spout Retainer, 13865 (Shear Bolt), 18687 (Wiring Harness) & 37982 (2 Skid Shoes))

$

$

Currently unavailable
