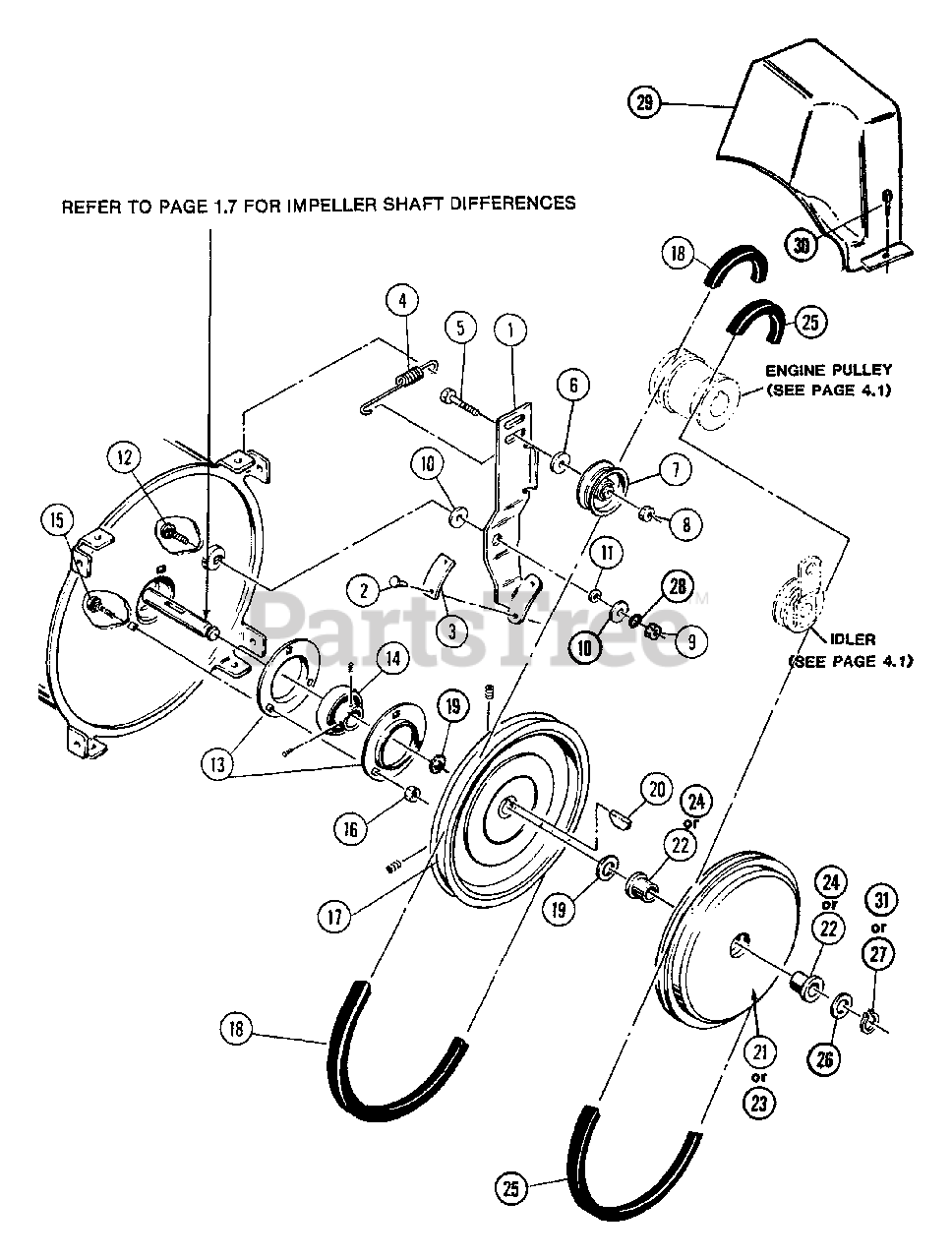

10300S (86438) - Snapper 30" Snow Thrower, 10hp Belts, Idler, Drive Plate, Sheave Parts Diagram

30" Snow Thrower, 10hp

Belts, Idler, Drive Plate, Sheave Parts Diagram

  • Title

1

Snapper 7051266

ASSEMBLY, Idler Arm

Note: (Includes items 2 & 3)

$

$

Currently unavailable

2

Snapper 7013860

RIVET, 3/16 x .344
(Superseded to 704032)

$4.49

$

In Stock, only 4 left!

0

3

Snapper 7013859

PAD, Brake
(Superseded to 7013859YP)

$6.99

$

In Stock, only 1 left!

0

4

Snapper 7013919

SPRING, Extension
(Superseded to 7013919YP)

$8.49

$

In Stock, only 2 left!

0

5

Snapper 7090791

BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, Grade 2
(Superseded to 7091945YP)

$4.49

$

In Stock, only 2 left!

0

6

Snapper 7090122

WASHER, 3/8 SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Snapper 7013850

PULLEY, Idler
(Superseded to 7013850YP)

$20.99

$

In Stock, only 4 left!

0

8

Snapper 7090499

NUT, 3/8-16 Hex Top Lock
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7091511

NUT, 5/16-18 Hex, Grade B or 5
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

11

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage, Grade 5
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 7

0

13

Snapper 7013931

HOUSING, Bearing

$

$

Not available

14

Snapper 7013924

BEARING
(Superseded to 7013924YP)

Note: (Includes set-screws)

$43.99

$

In Stock, only 1 left!

0

15

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 12

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

17

Snapper 7013867

SHEAVE, Blower
(Superseded to 7013867YP)

Note: (Includes set-screws)

$82.99

$

Usually ships in 2-12 days

0

18

Snapper 7013937

BELT, Blower
(Superseded to 7013937YP)

Note: (All units with Briggs Engines)

$28.99

$

In Stock, Qty 10

0

Snapper 7013939

BELT, Blower
(Superseded to 7013939YP)

Note: (All units with Tecumseh Engines)

$26.99

$

In Stock, Qty 20+

0

19

Snapper 7013852

WASHER, Thrust
(Superseded to 7013852YP)

Note: (Use with item 21 Drive Plate)

$8.99

$

Usually ships in 2-12 days

0

20

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.49

$

In Stock, Qty 5

0

21

Snapper 57274

DRIVE-PLATE (Serial Prefix 03 only)

Note: (Incl. 2 item 22) (Replaced by 5-1424); Requires #27607 Impeller shaft-refer to item 11, "Gear Box, Shafts"

$

$

Currently unavailable

22

Snapper 7012252

BUSHING
(Superseded to 7012252YP)

$

$

Not available

23

Snapper 7051358

DRIVE-PLATE (Serial Prefix)
(Superseded to 7051358YP)

Note: (Includes 2 item 24); Requires #27630 Impeller shaft-refer to item 11, "Gear Box, Shafts"

$

$

Not available

24

Snapper 7014295

BEARING, Ball
(Superseded to 7014295YP)

$16.99

$

Usually ships in 2-12 days

0

25

Snapper 7013936

BELT, Traction
(Superseded to 7013936YP)

Note: (All units with Briggs Engines)

$26.99

$

In Stock, only 1 left!

0

Snapper 7029101

BELT, Traction
(Superseded to 7029101YP)

Note: Was 13938 (All units with Tecumseh Engines)

$24.99

$

In Stock, Qty 6

0

26

Snapper 7010935

WASHER, 3/4" I.D. x 1-1/8" O.D. Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

Snapper 7014296

WASHER, 1/2 Shim
(Superseded to 7014296YP)

$4.49

$

In Stock, only 4 left!

0

27

Snapper 7010776

RING, Snap
(Superseded to 7010776YP)

Note: Was 13868 (Use with item 21 Drive Plate)

$3.99

$

In Stock, only 2 left!

0

28

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

29

Snapper 7019689

COVER, Belt Guard
(Superseded to 7017734YP)

$53.99

$

In Stock, only 3 left!

0

30

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex washer Self-Tap
(Superseded to 703583)

Note: Was 90302

$4.99

$

In Stock, Qty 20+

0

31

Snapper 7010776

RING, Snap
(Superseded to 7010776YP)

Note: (Use with item 23 Drive Plate)

$3.99

$

In Stock, only 2 left!

0
