1030 TE (31AE7B3F100) - Cub Cadet 30" Snow Thrower (1998) Frame Assembly, Drive Parts Diagram

30" Snow Thrower

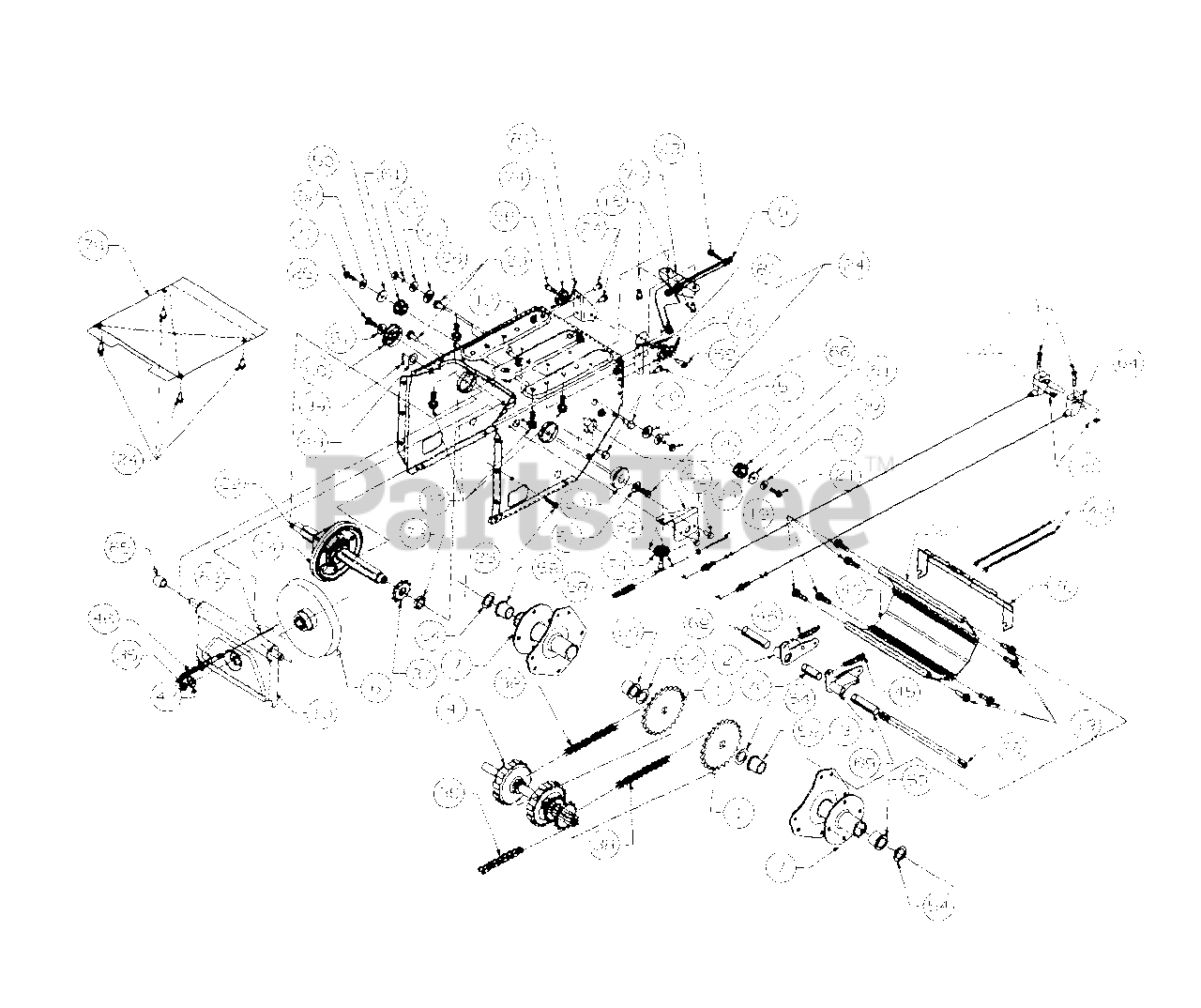

Frame Assembly, Drive Parts Diagram

  • Title

1

Cub Cadet 611-0053

Axle Assembly

$97.99

$

In Stock, only 2 left!

0

2

Cub Cadet 618-0043

Dog Assembly - R.H.

$23.99

$

In Stock, only 1 left!

0

3

Cub Cadet 618-0044

Dog Assembly - L.H

$24.99

$

In Stock, only 1 left!

0

4

Cub Cadet 618-0169

Shaft Assembly
(Superseded to 918-0169B)

$345.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 656-0012A

Disc Assembly
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 9

0

7

Cub Cadet 683-0024

Hub Assembly
(Superseded to 683-0024-0637)

Variations

Cub Cadet 683-0024-0637

Track Hub Assembly - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 684-0014A

Rod Shift Assembly
(Superseded to 684-0014B-0637)

Variations

Cub Cadet 684-0014A-0637

Shift Rod Assembly - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

10

Cub Cadet 684-0021

Bracket Assembly
(Superseded to 984-0021-0637)

Variations

Cub Cadet 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

12

Cub Cadet 684-0031

Frame Assembly
(Superseded to 984-0031)

Variations

Cub Cadet 684-0031-0483

USE 753-06327 KIT-REPLACEMENT - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 684-0031-0499

USE 753-06327 KIT-REPLACEMENT - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 684-0031-0637

USE 753-06327 KIT-REPLACEMENT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 684-0031-0650

USE 753-06327 KIT-REPLACEMENT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 684-0031-0662

USE 753-06327 KIT-REPLACEMENT - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 684-0031-0665

USE 753-06327 KIT-REPLACEMENT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 684-0031-0721

USE 753-06327 KIT-REPLACEMENT - SEARS RED (0721)

$

$

Not available

$122.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 684-0042A

Wheel Assembly Friction
(Superseded to 984-0042C)

$138.99

$

Usually ships in 3-6 days

0

Cub Cadet 735-0243

Rubber Only
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0118

Screw
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0602

Screw

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0604

Screw
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0654A

Screw

$4.49

$

In Stock, only 3 left!

0

23

Cub Cadet 710-0788

Screw

$7.49

$

In Stock, only 4 left!

0

24

Cub Cadet 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 710-1087

Screw
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

27

Cub Cadet 710-1233

Screw

$4.99

$

In Stock, Qty 11

0

28

Cub Cadet 711-0911

Shaft

$

$

Not available

29

Cub Cadet 711-1042

Shaft

$149.99

$

In Stock, only 2 left!

0

30

Cub Cadet 712-0127

Nut Flange

$3.49

$

In Stock, Qty 13

0

35

Cub Cadet 712-0711

Nut Jam

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 713-0413

Sprocket

$12.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 713-0437

Chain

$37.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 714-0474

Pin Cotter

$4.99

$

In Stock, Qty 14

0

40

Cub Cadet 719-0295A

Housing Track

$

$

Not available

42

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

45

Cub Cadet 732-0209

Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

46

Cub Cadet 732-0264

Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0105

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 736-0160

Washer-Flat

$4.49

$

In Stock, only 2 left!

0

50

Cub Cadet 736-0176

Washer-Flat

$4.99

$

In Stock, Qty 6

0

51

Cub Cadet 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0270

Washer-Bell

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 736-0287

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 737-0170

Lubricant

$

$

Currently unavailable

58

Cub Cadet 738-0924

Screw-Shoulder
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

59

Cub Cadet 741-0339

Bearing-Flange
(Superseded to 941-0339)

$12.99

$

In Stock, Qty 20+

0

60

Cub Cadet 741-0563

Bearing-Ball
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

61

Cub Cadet 741-0597

Bearing-Hex Flange
(Superseded to 941-0597)

$12.99

$

In Stock, Qty 12

0

62

Cub Cadet 746-0897

Cable-Auger Clutch
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

63

Cub Cadet 746-0898

Cable-Drive Clutch
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

64

Cub Cadet 746-0900

Cable with Trigger Lever
(Superseded to 753-0707)

$74.99

$

In Stock, Qty 5

0

65

Cub Cadet 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

66

Cub Cadet 748-0234

Spacer-Shoulder

$4.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 750-0903

Spacer-Split
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 750-0904

Spacer-Split

$

$

Not available

73

Cub Cadet 750-0997

Spacer
(Superseded to 950-0997)

$6.99

$

In Stock, only 4 left!

0

74

Cub Cadet 756-0625

Roller-Cable

$9.49

$

In Stock, Qty 16

0

75

Cub Cadet 784-5590

Bracket

Variations

Cub Cadet 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 784-5609

Bracket

Variations

Cub Cadet 784-5609-0483

BRACKET-STEERING - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5609-0498

BRACKET-STEERING - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5609-0499

BRACKET-STEERING - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 784-5609-0637

BRACKET-STEERING - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5609-0638

BRACKET-STEERING - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5609-0662

BRACKET-STEERING - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5609-0691

USE 784-5609-0637 BRACKET-STE - BLACK JACK (0691)

$

$

Not available

Cub Cadet 784-5609-0692

STEERING BRACKET - AGWAY BLUE (0692)

$

$

Not available

Cub Cadet 784-5609-0716

BRACKET-STEERING - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5609-0721

USE 784-5609-4044 BRACKET-STE - SEARS RED (0721)

$

$

Not available

Cub Cadet 784-5609-4021

BRACKET-STEERING - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 784-5609-4033

BRACKET-STEERING - FLINT MICA (4033)

$

$

Not available

Cub Cadet 784-5609-4044

BRACKET-STEERING - CRAFTSMAN RED (4044)

$

$

Not available

$

$

79

Cub Cadet 784-5648

Cover-Frame
(Superseded to 784-5648A-0637)

Variations

Cub Cadet 784-5648-0483

Track Frame Cover - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 784-5648-0638

Track Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 784-5648-0662

Track Frame Cover - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 784-5648-0687

USE 784-5648A-0687 COVER-FRAM - PINE GREEN (0687)

$

$

Not available

Cub Cadet 784-5648-0498

Track Frame Cover - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 784-5648-0637

Track Frame Cover - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5648-0650

Track Frame Cover - RED METALLIC (0650)

$

$

Not available

Cub Cadet 784-5648-0665

Track Frame Cover - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 784-5648-0689

Track Frame Cover - POLO GREEN (0689)

$

$

Not available

Cub Cadet 784-5648-0716

Track Frame Cover - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 784-5648-0721

Track Frame Cover - SEARS RED (0721)

$

$

Not available

$

$

80

Cub Cadet 784-5687

Bracket-Guide
(Superseded to 784-5687A-0637)

Variations

Cub Cadet 784-5687-0637

USE 784-5687A-0637 BRACKET-GU - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5687-0662

USE 784-5687A-0637 BRACKET-GU - OYSTER GRAY (0662)

$

$

Not available

$

$

81

Cub Cadet 784-5688

Bracket-Guide
(Superseded to 784-5688-0637)

Variations

Cub Cadet 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5688-0662

USE 784-5688-0637 BRACKET-GUI - OYSTER GRAY (0662)

$

$

Not available

$

$

82

Cub Cadet 784-5689

Bracket-Guide
(Superseded to 784-5689A-0637)

Variations

Cub Cadet 784-5689-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 784-5689-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$
