1030 Sprint (1691995) - AGCO Sprint Rear-Engine Riding Mower, 10.5hp Wheel & Tire Group Parts Diagram

Sprint Rear-Engine Riding Mower, 10.5hp

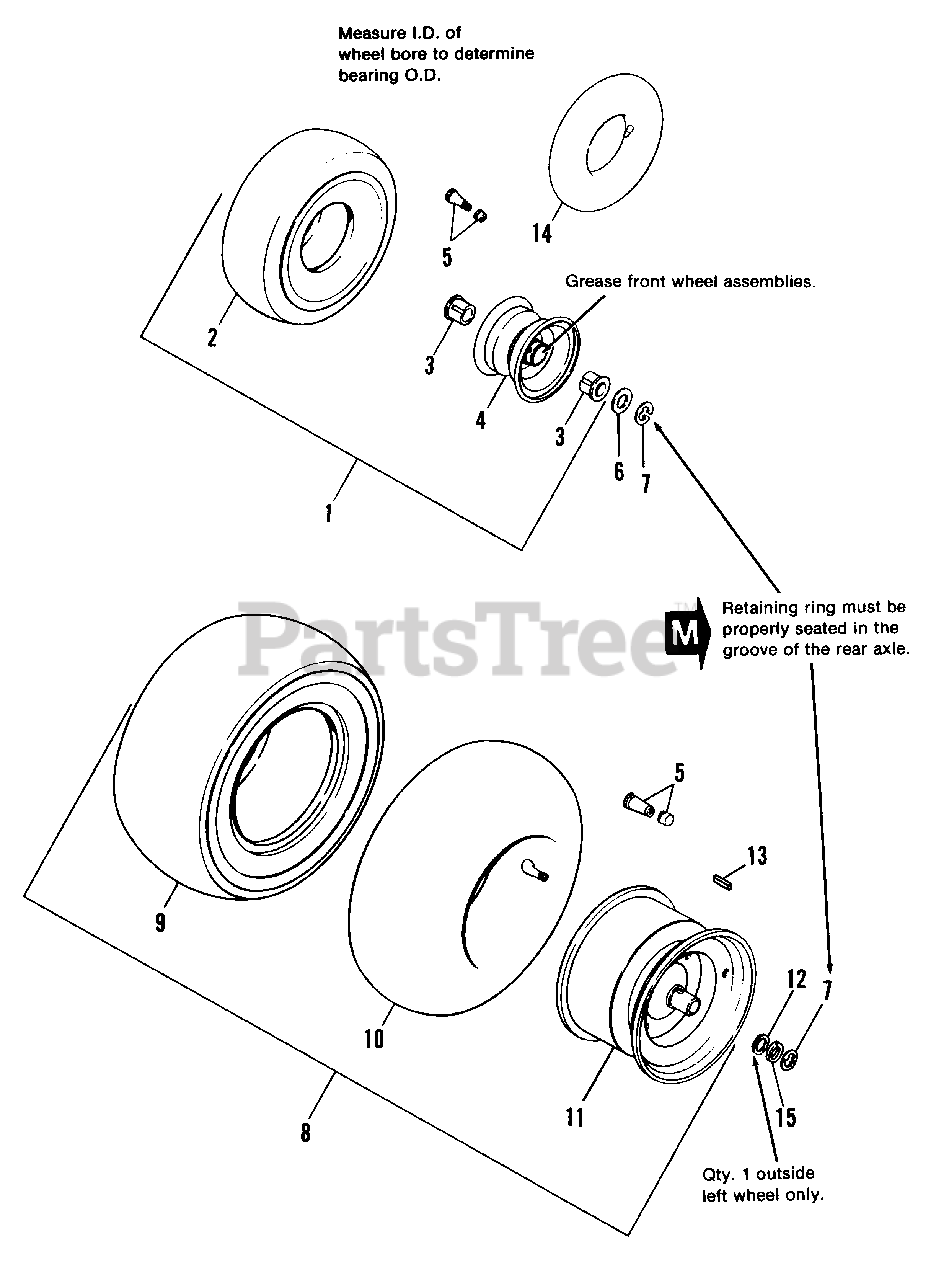

Wheel & Tire Group Parts Diagram

  • Title

1

Simplicity 1679698

FRONT WHEEL & TIRE ASSY.

$

$

Not available

2

Simplicity 1672269SM

TIRE, Turf, 4.10/3.50-4 (Carlisle)

$59.99

$

Usually ships in 2-12 days

0

3

Simplicity 2156316SM

BEARING, Flange Wheel (O.D. 1-1/8)

Note: To determine which bearing refer to Ref. No. 4 and measure I.D. of wheel to determine O.D. of bearings.

$11.99

$

In Stock, only 4 left!

0

3

Simplicity 1713167SM

BEARING, Flange Wheel (O.D. 1-3/8)
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

4

Simplicity 1679712SM

WHEEL ASSY. (Incl. Ref. No. 3)

$

$

Not available

5

Simplicity 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

6

Simplicity 2860202SM

WASHER

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 2827794SM

E-RING, Retaining, 3/4

$3.49

$

In Stock, Qty 17

0

8

Simplicity 1672016

REAR WHEEL & TIRE ASSY.

$

$

Not available

9

Simplicity 1709381SM

TlRE,Tubeless, 16 x 6.50-8 (Carlisle)

$

$

Not available

10

Simplicity 2164247SM

TUBE, (See note below) (Rear Wheels)

$40.99

$

Usually ships in 2-12 days

0

11

Simplicity 1672017SM

WHEEL ASSY.

$99.99

$

Usually ships in 2-12 days

0

12

Simplicity 1960114SM

WASHER, Plain
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 1729279SM

KEY, 3/16 x 3/16 x 1-1/2
(Superseded to 703889)

$4.49

$

In Stock, only 3 left!

0

14

Simplicity 2159141SM

TUBE, (See note below) (Front Wheels)

$24.99

$

In Stock, only 1 left!

0

15

Simplicity 1960160SM

WASHER, 3/4 x 1-39/64 x 1/2

$4.99

$

In Stock, Qty 11

0
