1030 E (317E663H100) - Cub Cadet 30" Snow Thrower Engine (1997) Carburetor Parts Diagram

30" Snow Thrower Engine

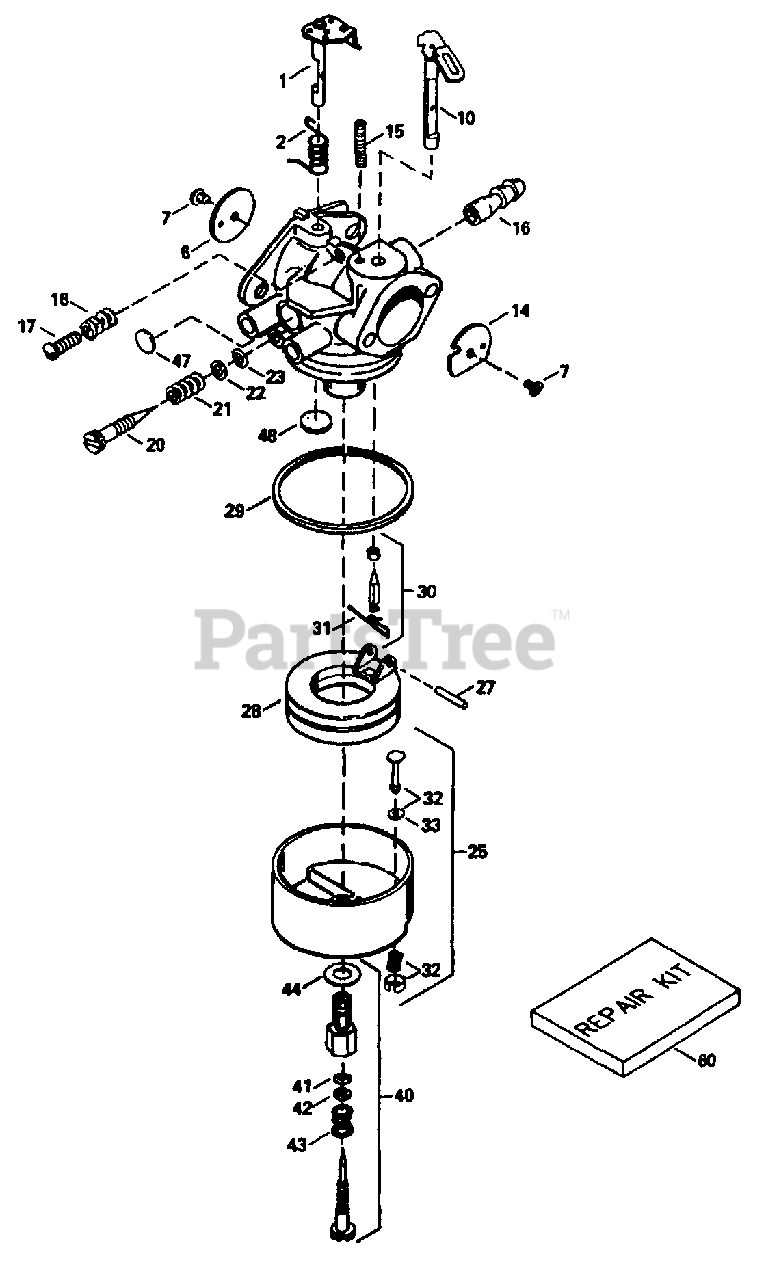

Carburetor Parts Diagram

  • Title

1

Cub Cadet TC-632776A

Throttle Shaft & Lever Assy

$

$

Currently unavailable

2

Cub Cadet TC-631970

Throttle Return Spring

$4.49

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-631778

Throttle Shutter

$1.99

$

In Stock, only 3 left!

0

7

Cub Cadet TC-650506

Shutter Screw

$1.49

$

In Stock, Qty 17

0

10

Cub Cadet TC-632112

Choke Shaft & Lever Assy

$7.49

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-632174

Choke Shutter

$4.49

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Cub Cadet TC-632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet TC-650417

Throttle Crack Screw/Idle Speed Screw
(Superseded to TC-651025)

$1.99

$

In Stock, Qty 5

0

18

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 2 left!

0

20

Cub Cadet TC-632281

Idle Mixture Screw

$3.99

$

In Stock, Qty 5

0

21

Cub Cadet TC-630766

Tension Spring

$1.99

$

In Stock, only 2 left!

0

22

Cub Cadet TC-630739

Idle Mixture Screw Washer

$1.99

$

In Stock, Qty 7

0

23

Cub Cadet TC-630740

Idle Mixture Screw "O" Ring

$2.49

$

Usually ships in 3-12 days

0

25

Cub Cadet TC-631951

Float Bowl Assy

$17.99

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-631024

Float Shaft

$1.99

$

In Stock, Qty 11

0

28

Cub Cadet TC-632019

Float
(Superseded to TC-632019A)

$7.49

$

In Stock, Qty 12

0

29

Cub Cadet TC-631028

Float Bowl "O" Ring
(Superseded to TC-631028A)

$2.49

$

In Stock, Qty 15

0

30

Cub Cadet TC-631021

Inlet Needle, Seat & Clip
(Superseded to TC-631021B)

$6.99

$

In Stock, Qty 6

0

31

Cub Cadet TC-631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

32

Cub Cadet TC-27136A

Bowl Drain Assy

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet TC-27554

Drain Plunger Gasket

$1.49

$

In Stock, Qty 16

0

40

Cub Cadet TC-632239

Main Adj. Screw Assy

$14.99

$

Usually ships in 3-12 days

0

41

Cub Cadet TC-630740

High Speed Mixture Screw "O" Ring

$2.49

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-630739

High Speed Mixture Screw Washer

$1.99

$

In Stock, Qty 7

0

43

Cub Cadet TC-630738

High Speed Mixture Tension Spring

$1.99

$

In Stock, Qty 9

0

44

Cub Cadet TC-27110

Bowl Nut Washer
(Superseded to TC-27110A)

$2.49

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-630748

Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 3 left!

0

48

Cub Cadet TC-631027

Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 2 left!

0

60

Cub Cadet TC-632347

Repair Kit

Note: Incl. Part #'s(1 of each): TC-27110, TC-630740, TC-630748, TC-631021, TC-631022, TC-631024, TC-631027, TC-631028, TC-632239, TC-632281
