1030 (315E66H100) - Cub Cadet 30" Snow Thrower (1995) Gear Assembly Parts Diagram

30" Snow Thrower

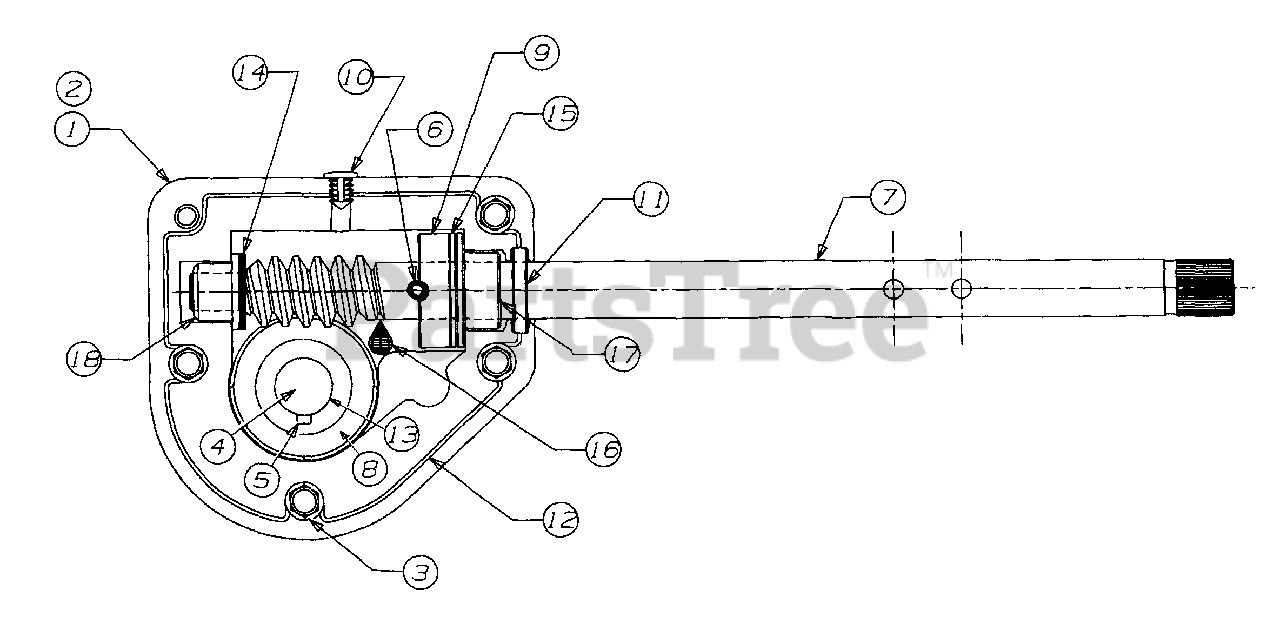

Gear Assembly Parts Diagram

  • Title

1

Cub Cadet 618-0123

Housing R.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 11

0

2

Cub Cadet 618-0124

Housing L.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 10

0

3

Cub Cadet 710-0642

Screw - Hex

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 711-0908

Axle 24" Housing
(Superseded to 711-0908A)

$

$

Not available

Cub Cadet 711-0909

Axle 26" Housing
(Superseded to 711-0909A)

$

$

Not available

Cub Cadet 711-1024

Axle 30" Housing
(Superseded to 711-1024A)

$136.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 714-0161

Key - Hi-Pro (24" & 26")
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 714-0388

Key - Hi-Pro (30")
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

6

Cub Cadet 715-0143

Pin - Spiral

$4.99

$

In Stock, Qty 9

0

7

Cub Cadet 717-0526

Work - Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, only 2 left!

0

8

Cub Cadet 717-0528

Gear - Worm 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

Cub Cadet 718-0186

Collar - Thrust

$8.49

$

In Stock, Qty 11

0

10

Cub Cadet 721-0325

Plug - Plastic

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 721-0327

Seal - Oil

$6.99

$

In Stock, Qty 20+

0

12

Locktite 5699 - Ultra Grey Sealant

$

$

Not available

13

Cub Cadet 736-0351

Washer - Flat

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0369

Washer - Flat

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0445

Washer - Flat

$4.49

$

In Stock, Qty 11

0

16

Cub Cadet 737-0168

Grease 1.5 oz.
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 13

0

17

Cub Cadet 741-0376

Bearing - Flange
(Superseded to 941-0376)

$8.99

$

In Stock, Qty 6

0

18

Cub Cadet 748-0108

Bearing - Flange
(Superseded to 948-0108)

$8.99

$

In Stock, Qty 20+

0
