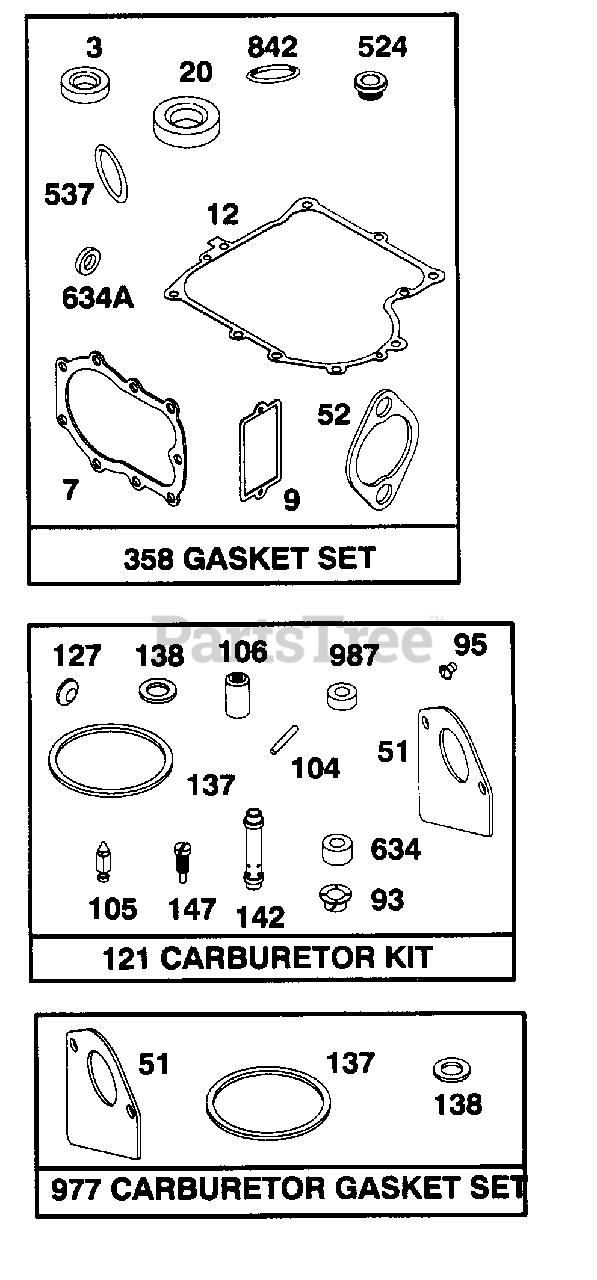

1030 (136B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1996) Gasket Sets, Carburetor Overhaul Kit Parts Diagram

Rear-Engine Riding Mower Engine

Gasket Sets, Carburetor Overhaul Kit Parts Diagram

  • Title

3

Cub Cadet BS-391086

Seal-Oil
(Superseded to BS-391086S)

Note: Included in Gasket Set - Part No. BS-494241.

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-271866

Gasket-Cylinder Head
(Superseded to BS-271866S)

Note: Included in Gasket Set - Part No. BS-494241.

$9.49

$

In Stock, only 1 left!

0

9

Cub Cadet BS-27803

Gasket-Valve Cover
(Superseded to BS-27803S)

Note: Included in Gasket Set - Part No. BS-494241.

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-271916

Gasket-Crankcase (1/64" Thick)
(Superseded to BS-692226)

Note: Included in Gasket Set - Part No. BS-494241.

$6.99

$

In Stock, Qty 5

0

Cub Cadet BS-271997

Gasket-Crankcase (.005" Thick)
(Superseded to BS-692406)

Note: Included in Gasket Set - Part No. BS-494241.

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-271996

Gasket-Crankcase (.009" Thick)
(Superseded to BS-692405)

Note: Included in Gasket Set - Part No. BS-494241.

$6.49

$

In Stock, only 1 left!

0

20

Cub Cadet BS-291675

Seal-Oil
(Superseded to BS-291675S)

Note: Included in Gasket Set - Part No. BS-494241.

$6.99

$

In Stock, Qty 20+

0

51

Cub Cadet BS-272465

Gasket-Carburetor
(Superseded to BS-692284)

Note: Included in Carburetor Gasket Set - Part No. BS-494385. Included in Carburetor Overhaul Kit - Part No. BS-496622.

$4.99

$

In Stock, only 3 left!

0

52

Cub Cadet BS-272554

Gasket-Carburetor
(Superseded to BS-272554S)

Note: Included in Gasket Set - Part No. BS-494241.

$5.49

$

In Stock, only 4 left!

0

93

Cub Cadet BS-281346

Bushing-Throttle

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Not available

95

Cub Cadet BS-94098

Screw-Throttle
(Superseded to BS-691636)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$3.99

$

In Stock, only 4 left!

0

104

Cub Cadet BS-231789

Pin-Float Hinge
(Superseded to BS-690525)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$4.99

$

In Stock, only 1 left!

0

105

Cub Cadet BS-231855

Valve-Inlet Needle
(Superseded to BS-231855S)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$6.99

$

Usually ships in 2-12 days

0

106

Cub Cadet BS-231854

Inlet Valve Seat
(Superseded to BS-690577)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$7.99

$

In Stock, Qty 6

0

121

Cub Cadet BS-496622

Carburetor Kit
(Superseded to BS-497481)

Note: Includes items 51, 93, 95, 104-106, 127, 137, 138, 142, 147, 634 & 987

$59.99

$

Usually ships in 2-12 days

0

127

Plug-Welch

Note: (Sold in Kit Only). Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Not available

137

Cub Cadet BS-281165

Gasket-Float Bowl
(Superseded to BS-281165S)

Note: Included in Carburetor Gasket Set - Part No. BS-494385. Included in Carburetor Overhaul Kit - Part No. BS-496622.

$4.99

$

Usually ships in 2-12 days

0

138

Cub Cadet BS-281164

Washer-Float Bowl
(Superseded to BS-692255)

Note: Included in Carburetor Gasket Set - Part No. BS-494385. Included in Carburetor Overhaul Kit - Part No. BS-496622.

$5.49

$

In Stock, Qty 20+

0

142

Cub Cadet BS-496519

Nozzle-Carburetor

Note: Note: BS-496623 Nozzle-Carb. (High Altitude). Includes: BS-281164 Washer-Float Bowl. Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Not available

147

Cub Cadet BS-231794

Pilot-Jet

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Not available

358

Cub Cadet BS-494241

Gasket Set

Note: Includes items 3, 7, 9, 12, 20, 52, , 524, 537, 634A & 842

$39.99

$

In Stock, Qty 8

0

524

Cub Cadet BS-68838

Seal-Filler Tube
(Superseded to BS-281370S)

Note: Included in Gasket Set - Part No. BS-494241.

$8.49

$

In Stock, Qty 20+

0

537

Cub Cadet BS-281106

O-Ring-Air Cleaner
(Superseded to BS-691917)

Note: Included in Gasket Set - Part No. BS-494241.

$4.49

$

In Stock, Qty 18

0

634

Cub Cadet BS-281168

Seal-Choke Shaft

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Currently unavailable

634A

Cub Cadet BS-491323

Seal-Governor
(Superseded to BS-692407)

Note: Included in Gasket Set - Part No. BS-494241.

$7.99

$

In Stock, Qty 7

0

842

Cub Cadet BS-270920

Seal-Oil Filler Cap
(Superseded to BS-691870)

Note: Included in Gasket Set - Part No. BS-494241.

$4.49

$

Usually ships in 2-12 days

0

977

Cub Cadet BS-494385

Carburetor Gasket Set
(Superseded to BS-697241)

Note: Includes items 51, 137 & 138

$43.99

$

In Stock, only 1 left!

0

987

Cub Cadet BS-281166

Seal-Throttle Shaft
(Superseded to BS-691326)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$5.49

$

Usually ships in 2-12 days

0
