1030 (136B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1996) Carburetor Parts Diagram

Rear-Engine Riding Mower Engine

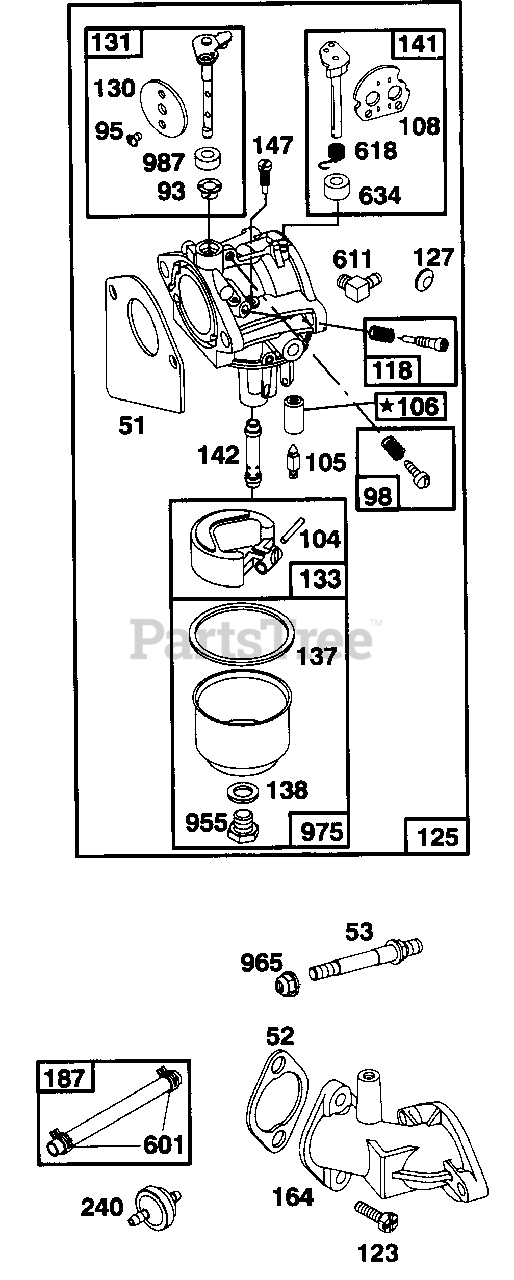

Carburetor Parts Diagram

  • Title

51

Cub Cadet BS-272465

Gasket-Carburetor
(Superseded to BS-692284)

Note: Included in Carburetor Gasket Set - Part No. BS-494385. Included in Carburetor Overhaul Kit - Part No. BS-496622.

$4.99

$

In Stock, only 3 left!

0

52

Cub Cadet BS-272554

Gasket-Carburetor
(Superseded to BS-272554S)

Note: Included in Gasket Set - Part No. BS-494241.

$5.49

$

In Stock, only 4 left!

0

53

Cub Cadet BS-94637

Stud-Carb. Mtg.
(Superseded to BS-690227)

$7.99

$

In Stock, Qty 6

0

93

Cub Cadet BS-281346

Bushing-Throttle Shaft

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Not available

95

Cub Cadet BS-94098

Screw-Throttle
(Superseded to BS-691636)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$3.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-495800

Screw-Idle Adjust

$10.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-231789

Pin-Float Hinge
(Superseded to BS-690525)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$4.99

$

In Stock, only 1 left!

0

105

Cub Cadet BS-231855

Valve-Inlet Needle
(Superseded to BS-231855S)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$6.99

$

Usually ships in 2-12 days

0

106

Cub Cadet BS-231854

Seat-Inlet
(Superseded to BS-690577)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$7.99

$

In Stock, Qty 6

0

108

Cub Cadet BS-224666

Valve-Choke

$

$

Not available

118

Cub Cadet BS-496589

Valve-Needle

$12.99

$

Usually ships in 2-12 days

0

123

Cub Cadet BS-94616

Screw-Elbow Mtg.
(Superseded to BS-690953)

$5.99

$

Usually ships in 2-12 days

0

125

Cub Cadet BS-496592

Carburetor
(Superseded to BS-799728)

$

$

Not available

127

Plug-Welch

Note: (Sold in Kit Only). Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Not available

130

Cub Cadet BS-224668

Valve-Throttle
(Superseded to BS-690468)

$9.49

$

In Stock, only 1 left!

0

131

Cub Cadet BS-494885

Shaft-Throttle

$

$

Not available

133

Cub Cadet BS-494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Cub Cadet BS-281165

Gasket-Float Bowl
(Superseded to BS-281165S)

Note: Included in Carburetor Gasket Set - Part No. BS-494385. Included in Carburetor Overhaul Kit - Part No. BS-496622.

$4.99

$

Usually ships in 2-12 days

0

138

Cub Cadet BS-281164

Washer-Float Bowl
(Superseded to BS-692255)

Note: Included in Carburetor Gasket Set - Part No. BS-494385. Included in Carburetor Overhaul Kit - Part No. BS-496622.

$5.49

$

In Stock, Qty 20+

0

141

Cub Cadet BS-495931

Shaft-Choke
(Superseded to BS-790902)

$33.99

$

In Stock, only 1 left!

0

142

Cub Cadet BS-496519

Nozzle-Carburetor

Note: Note: BS-496623 Nozzle-Carb. (High Altitude). Includes: BS-281164 Washer-Float Bowl. Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Not available

147

Cub Cadet BS-231794

Pilot-Jet

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622. Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Not available

164

Cub Cadet BS-213819

Carburetor-Elbow
(Superseded to BS-691711)

$

$

Not available

187

Cub Cadet BS-393815

Line-Fuel (11", Cut to Suit)

$11.99

$

Usually ships in 2-12 days

0

240

Cub Cadet BS-298090

Filter-Fuel
(Superseded to BS-298090S)

$

$

Not available

601

Cub Cadet BS-93053

Clamp-Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

611

Cub Cadet BS-493496

Elbow-Fuel Pipe
(Superseded to BS-692317)

$6.49

$

In Stock, Qty 20+

0

618

Cub Cadet BS-262803

Spring-Choke Return

$8.99

$

Usually ships in 2-12 days

0

634

Cub Cadet BS-281168

Seal-Choke Shaft

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$

$

Currently unavailable

955

Cub Cadet BS-94642

Screw-Fuel Bowl
(Superseded to BS-691657)

$7.99

$

In Stock, only 1 left!

0

965

Cub Cadet BS-94010

Nut-Hex.
(Superseded to BS-690958)

$3.49

$

In Stock, only 3 left!

0

975

Cub Cadet BS-494378

Bowl-Float
(Superseded to BS-495933)

$

$

Not available

987

Cub Cadet BS-281166

Seal-Throttle Shaft
(Superseded to BS-691326)

Note: Included in Carburetor Overhaul Kit - Part No. BS-496622.

$5.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-496623

Nozzle-Carb. (High Altitude)

$

$

Currently unavailable

Cub Cadet BS-281164

Washer-Float Bowl
(Superseded to BS-692255)

$5.49

$

In Stock, Qty 20+

0

Cub Cadet BS-494241

Gasket Set

Note: Includes item 52

$39.99

$

In Stock, Qty 8

0

Cub Cadet BS-494385

Carburetor Gasket Set
(Superseded to BS-697241)

Note: Includes items 51, 137 & 138

$43.99

$

In Stock, only 1 left!

0

Cub Cadet BS-496622

Carburetor Overhaul Kit
(Superseded to BS-497481)

Note: Includes items 51, 93, 95, 104-106, 127, 137, 138, 142, 147, 634 & 987

$59.99

$

Usually ships in 2-12 days

0
