1030 (136B582B100) - Cub Cadet Rear-Engine Riding Mower (1996) Transaxle And Drive Belts Parts Diagram

Rear-Engine Riding Mower

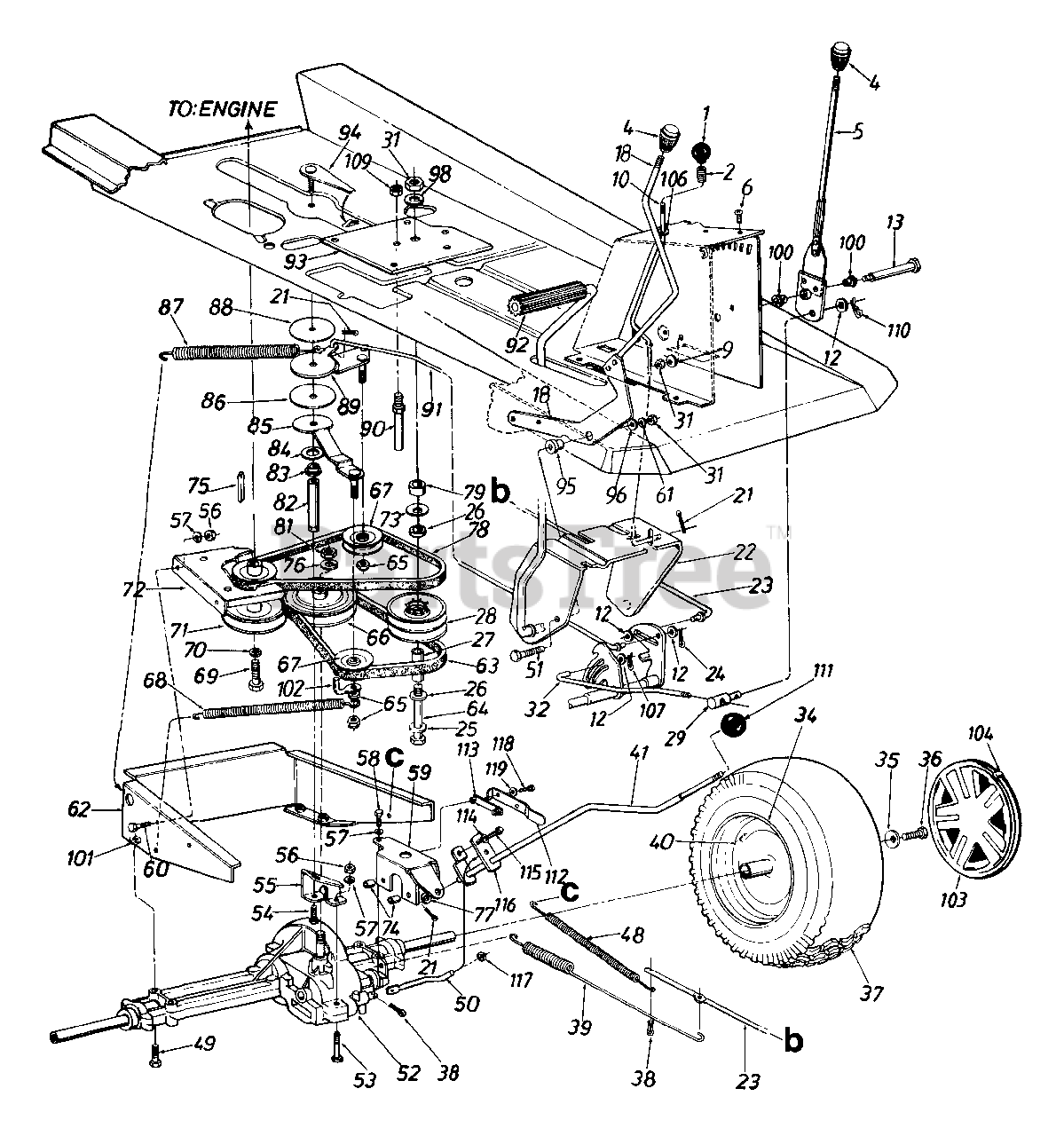

Transaxle And Drive Belts Parts Diagram

  • Title

1

Cub Cadet 720-0187

Ball Knob 1/4-20 Thd.

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 732-0437

Compression Spring

$10.99

$

In Stock, only 1 left!

0

?3

Cub Cadet 703-1903

Cam Follower Ass'y.

$

$

Not available

4

Cub Cadet 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

5

Cub Cadet 603-0108

Shifter Ass'y. w/Handle

$

$

Not available

6

Cub Cadet 710-0748

Pan Hd. Tap Scr. #12 x .5" Lg.

$

$

Not available

9

Cub Cadet 736-0219

Bell-Wash..4" I.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 747-3143

Parking Brake Rod

$

$

Not available

12

Cub Cadet 736-0275

FI-Wash..34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 738-0114

Shld. Bolt .498" Dia. x 4.75" Lg.

$

$

Not available

18

Cub Cadet 703-1914

Deck Engagement Brkt. w/Handle

Variations

Cub Cadet 703-1914-0637

BRACKET,-DECK ENGAGEMPOWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet 603-0072

Clutch Pedal Brkt. Ass'y.

Variations

Cub Cadet 603-0072-0637

PEDAL ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 747-0431

Brake Rod

$

$

Not available

24

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.0"

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0247

FI-Wash..406" I.D. x 1.125"

$9.49

$

In Stock, Qty 16

0

26

Cub Cadet 741-0405

Thrust Brg..56" I.D.
(Superseded to 941-0405)

$

$

Not available

27

Cub Cadet 750-0705

Spacer Sleeve 2.71" Lg.

$

$

Not available

28

Cub Cadet 717-0884

Variable Speed Pulley Ass'y.

$219.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

31

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 747-0394A

Speed Control Link

$

$

Not available

34

Cub Cadet 734-0594

Rim Only
(Superseded to 634-0138)

Variations

Cub Cadet 734-0594-0499

Rim Assembly, 8.0 X 5.38 with Valve - CUB BEIGE (0499)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0594-0629

USE 634-0138-0662 RIM ASSEMBL - SILVER FLAKE (0629)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0594-0662

USE 634-0138-0662 RIM ASSEMBL - OYSTER GRAY (0662)

$67.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0594-0674

RIM ASSEMBLY - YARDMAN YELLOW (0674)

$

$

Not available

$141.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 736-0242

Bell-Wash..345" I.D. x.88"

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 710-0627

Hex L-Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 734-0591

Wheel Ass'y. Comp.
(Superseded to 634-0139)

Variations

Cub Cadet 734-0591-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$319.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0591-0912

Wheel Assembly, Gray - Dico Gray (0912)

$319.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0591-0932

Wheel Assembly, Gray - Dico Beige (0932)

$319.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0591-0931

USE 634-0139-0931 WHEEL ASM-C - Carlisle Beige (0931)

$319.99

$

Usually ships in 3-6 days

0

$259.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0275

Tire Only

Variations

Cub Cadet 734-0275-0901

TIRE-16X6.5 - Carlisle (0901)

$

$

Not available

Cub Cadet 734-0275-0905

USE 734-0275-0901 TIRE-16X6.5 - Duro (0905)

$

$

Not available

Cub Cadet 734-0275-0902

TIRE-16X6.5 - Dico (0902)

$

$

Not available

$114.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 714-0149B

Cotter Pin 1/8" Dia. x 1.25"

$4.49

$

In Stock, Qty 18

0

39

Cub Cadet 732-0389

Extension Spring 17" Lg.

$

$

Not available

40

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 603-0073

Shift Lever Ass'y.

$

$

Not available

48

Cub Cadet 732-0487

Extension Spring 8.25" Lg.

$

$

Not available

49

Cub Cadet 710-0378

Hex Bolt 5/16-18 x 2.5" Lg.

$4.99

$

In Stock, only 4 left!

0

50

Cub Cadet 747-0668

Shift Rod

$

$

Not available

51

Cub Cadet 710-0342

Hex Bolt 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 12

0

52

Transaxle

Note: (See Breakdown "Transaxle" illustration and parts list.

$

$

Not available

53

Cub Cadet 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, only 2 left!

0

54

Cub Cadet 710-0180

Hex Bolt 3/8-24 x .75" Lg.

$6.99

$

In Stock, only 3 left!

0

55

Cub Cadet 15564A

Torque Rod Bracket

Variations

Cub Cadet 15564A-0637

TORQUE BRACKET ROD(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

56

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

58

Cub Cadet 710-0965

Self-Tap Mach. Scr. 1/4-20 x 1.37" Lg.

$

$

Not available

59

Cub Cadet 17515A

Shift Lever Support Brkt.

$

$

Not available

60

Cub Cadet 710-0597

Hex Bolt 1/4-20 x 1.0" Lg.

$3.99

$

In Stock, Qty 14

0

61

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

62

Cub Cadet 15552

Transaxle Support Ass'y.

Variations

Cub Cadet 15552-0637

SUPPORT ASSEMBLY-TRANSPOWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

63

Cub Cadet 754-0240

"V"-Belt
(Superseded to 954-0240)

$37.99

$

In Stock, only 1 left!

0

64

Cub Cadet 710-0693

Hex Bolt 3/8-16 x 4.5" Lg.

$14.99

$

In Stock, only 2 left!

0

65

Cub Cadet 712-0116

Hex L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

66

Cub Cadet 656-0002

"V"-Pulley

$75.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 756-0116

"V"-Belt Idler
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

68

Cub Cadet 732-0308

Ext. Spring 6.37" Lg
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

69

Cub Cadet 710-0314

Hex Bolt 7/16-20 x 1.0" Lg.

$4.49

$

In Stock, only 3 left!

0

70

Cub Cadet 736-0171

L-Wash 7/16" I D.

$4.49

$

In Stock, Qty 5

0

71

Cub Cadet 756-0391

Engine Pulley

$157.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 15623

Upper Belt Guard

$

$

Not available

73

Cub Cadet 736-0219

Bell-Wash 40" I. D, x 1.12" O.O.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

74

Cub Cadet 750-0686

Spacer 256" I.D. x .5" O.D.

$

$

Not available

75

Cub Cadet 714-0114

Sq. Key 1/4" x 2.0" Lg.
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

76

Cub Cadet 736-0427

Bell-Wash .567" I.D. x 1 125"
(Superseded to 936-0427)

$

$

Not available

77

Cub Cadet 736-0226

Fl-Wash. 469" I.D. x .88" 0 D.
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

78

Cub Cadet 754-0241A

"V"-Belt
(Superseded to 954-05040)

$45.99

$

In Stock, Qty 15

0

79

Cub Cadet 750-0706

Spacer 38" l D. x 1.0" O.D.
(Superseded to 950-0706)

$

$

Not available

81

Cub Cadet 712-3035

Hex Jam Nut 9/16-18 Thd

$6.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 711-0676

Torque Rod

$

$

Not available

83

Cub Cadet 748-0294

Flange Bearing .378" I.D.

$

$

Not available

84

Cub Cadet 736-0187

FI-Wash..64" I.D. x 1.24" 0 D.

$4.49

$

In Stock, Qty 20+

0

85

Cub Cadet 15569B

Idler Bracket Ass'y.

$

$

Not available

86

Cub Cadet 736-0283

Thrust Washer.635" I.D.

$

$

Not available

87

Cub Cadet 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 736-0284

Thrust Wash. 385" I.D.

$

$

Not available

89

Cub Cadet 15585

Idler Bracket Ass'y. For Clutch

$

$

Not available

90

Cub Cadet 711-0640

Belt Guard Pin 3/8-16 x 2.75" Lg.

$7.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 747-0560

Clutch Rod

$

$

Not available

92

Cub Cadet 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

93

Cub Cadet 783-0005

Variable Speed Mtg. Plate

Variations

Cub Cadet 783-0005-0637

PLATE-V/S MTG (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

94

Cub Cadet 15642

Weld Bolt Brkt. Ass'y.

Variations

Cub Cadet 15642-0637

BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

95

Cub Cadet 738-0541

Shld. Spacer .622" Dia. x .218"

$

$

Not available

96

Cub Cadet 736-0133

FI-Wash..406" I.D. x 1.25" O.D.

$5.49

$

In Stock, Qty 7

0

98

Cub Cadet 736-0217

L-Wash. 3/8" I.D. (Heavy Duty)

$4.49

$

In Stock, Qty 9

0

100

Cub Cadet 741-0491

Flanged Nyliner Brg.

$5.49

$

In Stock, only 4 left!

0

101

Cub Cadet 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 747-0758

Belt Guard

$

$

Not available

103

Cub Cadet 734-1614

Hub Cap

$

$

Not available

104

Cub Cadet 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

106

Cub Cadet 736-0142

Fl-Wash. 281" I.D. x .5" O.D.

$4.99

$

In Stock, only 4 left!

0

107

Cub Cadet 714-0104

Intern. Cotter Pin 1-1/8" Lg.

$4.49

$

In Stock, Qty 20+

0

109

Cub Cadet 712-0181

Hex Top L-Jam Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

110

Cub Cadet 714-0145

Internal Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

111

Cub Cadet 720-0165

Ball Knob
(Superseded to 920-0232)

$10.99

$

In Stock, only 1 left!

0

112

Cub Cadet 732-0615

Spring Switch

$

$

Not available

113

Cub Cadet 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 9

0

114

Cub Cadet 736-0270

Bell-Wash..265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

115

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

116

Cub Cadet 16476

Shift Lever Adjusting Link

$

$

Not available

117

Cub Cadet 726-0231

Retaining Ring
(Superseded to 926-0106)

$

$

Not available

118

Cub Cadet 710-0227

Hex Wash. Hd Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 15

0

119

Cub Cadet 736-0426

Plastic Washer

$

$

Not available
