1030 (136B582B100) - Cub Cadet Rear-Engine Riding Mower (1996) Frame And Cover Parts Diagram

Rear-Engine Riding Mower

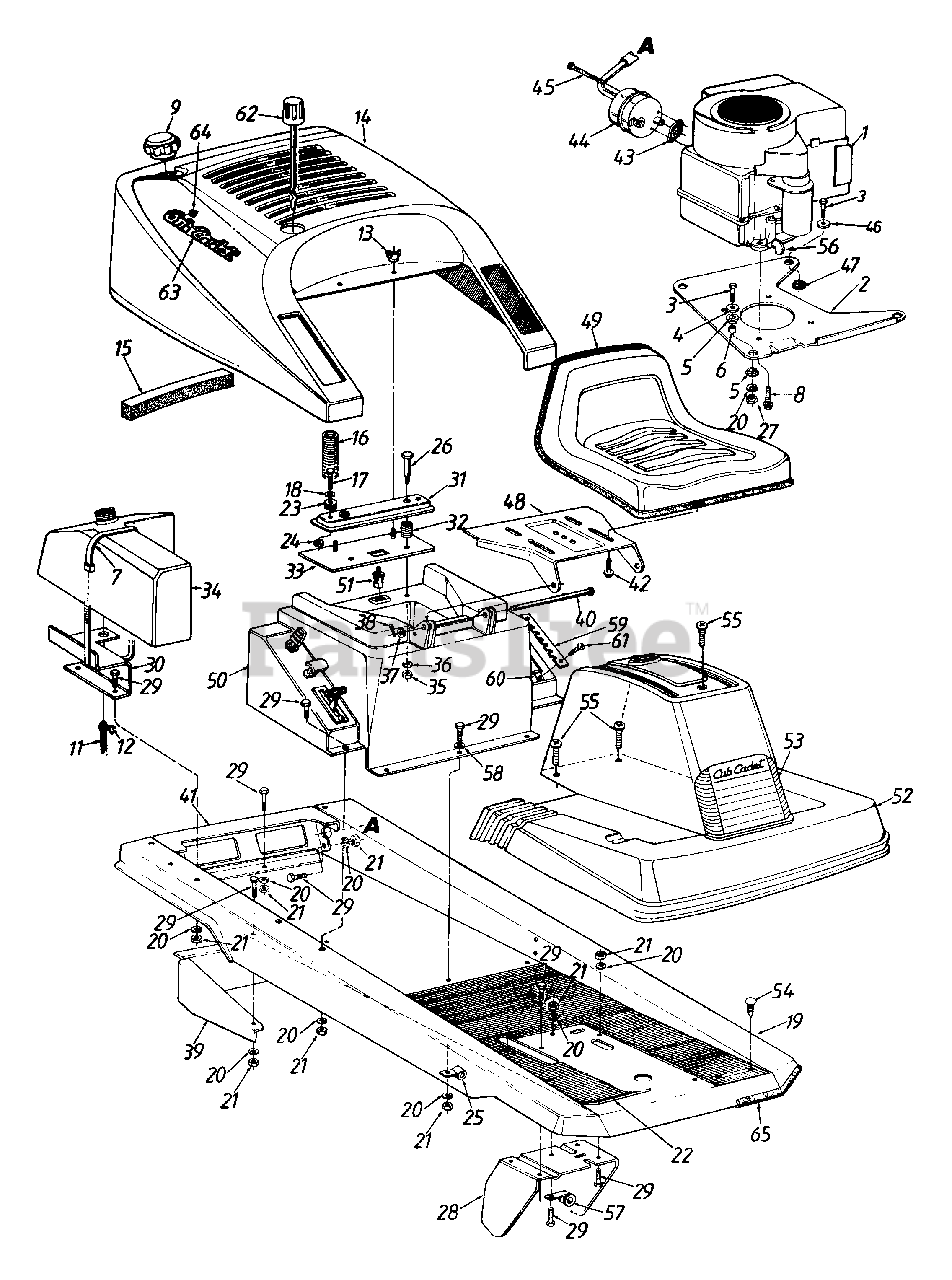

Frame And Cover Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Cub Cadet 15572A

Engine Mounting Plate
(Superseded to 15572A-0637)

Variations

Cub Cadet 15572A-0637

PLATE-ENGINE MTG - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 710-0158

Hex Bolt 5/16-24 x 1.25" Lg.
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 19

0

4

Cub Cadet 736-0231

FI-Wash..33" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 11

0

5

Cub Cadet 722-0153

Engine Mounting Grommet

$3.49

$

In Stock, Qty 20+

0

6

Cub Cadet 750-0539

Spacer.315" I.D. x.5" O.D.
(Superseded to 950-0539)

$

$

Not available

7

Cub Cadet 726-0209

Cable Tie 30.6" Lg.
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0502A

Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg.

$6.99

$

In Stock, only 2 left!

0

9

Cub Cadet 751-3100

Gas Cap

$

$

Not available

11

Cub Cadet 751-0535-15

Gas Line - 15" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

12

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

13

Cub Cadet 712-0397

Wing Nut 1/4-20 Thd.
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 603-0015

Rear Engine Cover

$

$

Not available

15

Cub Cadet 722-3013

Foam Strip - 2 Req'd.

$

$

Not available

16

Cub Cadet 732-3075

Compression Spring

$

$

Not available

17

Cub Cadet 710-3038

Hex Bolt 5/16-18 x 7/8" Lg. (Gr. 5)

$4.99

$

In Stock, only 3 left!

0

18

Cub Cadet 736-0159

FI-Wash..344" I.D. x .875"

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 17671A

Main Frame

Variations

Cub Cadet 17671A-0498

FRAME - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 17671A-0637

FRAME - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 17671A-0662

FRAME - OYSTER GRAY (0662)

$

$

Not available

$

$

20

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 735-3032

Foot Pad

$

$

Not available

23

Cub Cadet 722-0160

Elastemer Bushing

$

$

Not available

24

Cub Cadet 712-3009

Hex Cent. L-Nut 5/16-18 Thd. (Gr. 5)

$6.99

$

In Stock, Qty 20+

0

25

Cub Cadet 726-0175

Clamp

$

$

Not available

26

Cub Cadet 738-0145

Shld. Bolt .5" Dia. x .84

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

Cub Cadet 603-0072

Clutch Pedal Brkt. Ass'y.

Variations

Cub Cadet 603-0072-0637

PEDAL ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 703-1861

Fuel Tank Support

Variations

Cub Cadet 703-1861-0637

SUPPORT-TANK POWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

31

Cub Cadet 703-1813

Seat Spring Channel
(Superseded to 703-1813-0498)

Variations

Cub Cadet 703-1813-0498

CHANNEL-SEAT SPRG - OLD CUB YELLOW (0498)

$

$

Not available

$

$

32

UNKNOWN

$

$

Not available

33

Cub Cadet 703-1863

Hold Down Brkt. Ass'y.

Variations

Cub Cadet 703-1863-0637

BRACKET-HOLD DOWN POWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 751-3084

Fuel Tank

$

$

Not available

35

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

36

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0226

Fl-Wash. 469" I.D. x 88" O.D.
(Superseded to 936-0226)

$3.99

$

In Stock, only 1 left!

0

38

Cub Cadet 714-0111

Cotter Pin 3/32" Dia x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

39

Cub Cadet 15552

Transaxle Support Assembly

Variations

Cub Cadet 15552-0637

SUPPORT ASSEMBLY-TRANSPOWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 747-3152

Seat Pivot Rod

$

$

Not available

41

Cub Cadet 15571

Rear Frame Panel

Variations

Cub Cadet 15571-0498

PANEL-FRAM - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 15571-0629

PANEL-FRAM - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 15571-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15571-0638

PANEL-FRAM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

42

Cub Cadet 710-0870

Hex Wash. Hd. Tap Scr. 3/8-16 x .62" Lg

$6.49

$

In Stock, only 1 left!

0

43

Cub Cadet 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

44

Cub Cadet 751-0413

Muffler

$

$

Not available

Cub Cadet 751-0426

Spark Arrester for Muffler
(Superseded to 951-0544)

Note: (Optional)

$

$

Not available

45

Cub Cadet 738-0636

Shld. Bolt 7/16" Dia x 3-5/8"
(Superseded to 938-0636)

$

$

Not available

46

Cub Cadet 736-0343

Fl-Wash. 33" I D. x 1.125" O.D.

$4.49

$

In Stock, Qty 7

0

47

Cub Cadet 736-0392

Flange Washer .32" I D x .5"

$

$

Not available

48

Cub Cadet 703-2030

Seat Pivot Bracket

Variations

Cub Cadet 703-2030-0498

SEAT-PIVOT BRACKET(CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

$

$

49

Cub Cadet 757-0345

Seat Ass'y
(Superseded to 957-0378)

$

$

Not available

50

Cub Cadet 731-3135

Seat Support

Variations

Cub Cadet 731-3135-0637

SUPPORT-SEAT - POWDER BLACK (0637)

$

$

Not available

$

$

51

Cub Cadet 725-1441

Safety Switch (Seat)

$

$

Not available

52

Cub Cadet 731-3134

Front Console

$

$

Not available

53

Cub Cadet 731-3128

Headlight Lens
(Superseded to 731-3128A)

$

$

Not available

54

Cub Cadet 726-3046

Ratchet Fastener .25" Dia. x .75" Lg

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 710-0748

Pan Hd. Tap Scr #12 x .5" Lg.

$

$

Not available

56

Cub Cadet 737-0125

90 deg. Elbow Male to Female

$

$

Not available

57

Cub Cadet 726-3008

Cable Clip

$4.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 736-0275

Fl-Wash. 34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 703-2026

Lift Reinforcement

$

$

Not available

60

Cub Cadet 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 710-0943

Fl-Counter Sunk Scr #10-24 x 1.5" Lg

$

$

Not available

62

Cub Cadet 731-3113

Oil Fill Extension

$

$

Not available

63

Cub Cadet 779-3536

Logo
(Superseded to 979-3536)

$15.99

$

In Stock, Qty 7

0

64

Cub Cadet 726-3047

Push Nut
(Superseded to 926-3047)

$4.49

$

In Stock, only 4 left!

0

65

Cub Cadet 731-0511-57

Trim Strip (39" Req'd.)

$73.99

$

Usually ships in 3-6 days

0

Cub Cadet 777-8986

Engine Cover Label Set
(Superseded to 977-8986)

$

$

Not available

Cub Cadet 759-3687

Decal Kit - Seat Support

$

$

Not available

Cub Cadet 759-3686

Decal Kit - Front Console

$

$

Not available

Cub Cadet 779-3600

Steering Cap Label

$

$

Not available
