1030 (135B582B100) - Cub Cadet Rear-Engine Riding Mower Engine (1995) Flywheel And Starter Assemblies Parts Diagram

Rear-Engine Riding Mower Engine

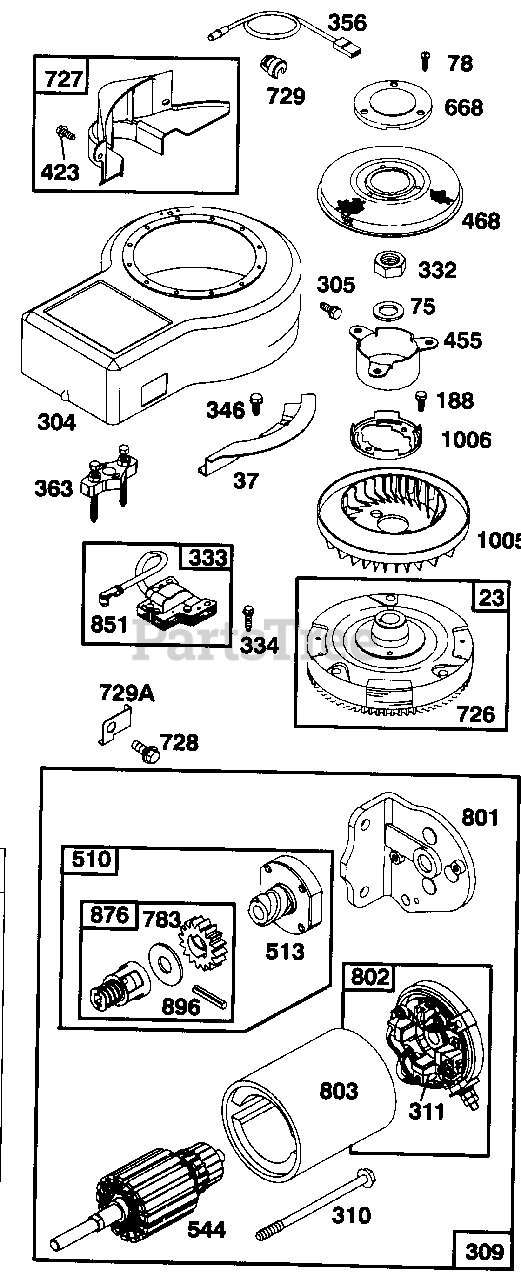

Flywheel And Starter Assemblies Parts Diagram

  • Title
23

Cub Cadet BS-492326

Flywheel
(Superseded to BS-693557)

$

$

Not available

37

Cub Cadet BS-224502

Guard-Flywheel

$

$

Not available

75

Cub Cadet BS-224061

Washer-Spring

$

$

Not available

78

Cub Cadet BS-94626

Screw-Sem
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

188

Cub Cadet BS-94627

Screw-Sem

$

$

Not available

304

Cub Cadet BS-496319

Housing-Blower

$

$

Not available

305

Cub Cadet BS-94786

Screw-Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

332

$4.99

$

In Stock, Qty 13

0

333

Cub Cadet BS-492341

Armature-Magneto
(Superseded to BS-591459)

$53.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-94731

Screw-Sem

$

$

Not available

346

Cub Cadet BS-93705

Screw-Hex. Head
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

356

Cub Cadet BS-494328

Wire-Ground

$

$

Not available

363

Cub Cadet BS-19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

423

Cub Cadet BS-94073

Screw-Sem
(Superseded to BS-691002)

$8.49

$

In Stock, only 2 left!

0

455

Cub Cadet BS-222561

Cup-Screen Mounting

$

$

Not available

468

Cub Cadet BS-224517

Screen-Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

668

$

$

Not available

726

Cub Cadet BS-392134

Gear-Ring
(Superseded to BS-696537)

$50.99

$

Usually ships in 2-12 days

0

727

Cub Cadet BS-490324

Cover-Starter

$26.99

$

In Stock, only 1 left!

0

729

Cub Cadet BS-281159

Clip-Lead Wire

$

$

Not available

851

Cub Cadet BS-493880

Terminal-Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

1005

Cub Cadet BS-280687

Fan-Flywheel

$

$

Not available

1006

Cub Cadet BS-224413

Retainer-Fan
(Superseded to BS-690452)

$10.99

$

Usually ships in 2-12 days

0

309

Cub Cadet BS-394805

Motor-Starter
(Superseded to BS-497595)

$110.99

$

In Stock, Qty 20+

0

310

Cub Cadet BS-94003

Bolt-Thru

$

$

Currently unavailable

311

$24.99

$

Usually ships in 2-12 days

0

510

Cub Cadet BS-495878

Drive-Starter
(Superseded to BS-696540)

$29.99

$

In Stock, Qty 19

0

513

Cub Cadet BS-398003

Clutch Assembly
(Superseded to BS-692024)

$21.99

$

In Stock, only 2 left!

0

544

Cub Cadet BS-390837

Armature-Starter

$159.99

$

In Stock, only 1 left!

0

728

Cub Cadet BS-94627

Screw-Hex. Head

$

$

Not available

729A

Cub Cadet BS-224723

Retainer-Wire

$5.99

$

In Stock, only 1 left!

0

783

Cub Cadet BS-280104

Gear
(Superseded to BS-695708)

$6.99

$

In Stock, only 2 left!

0

801

$56.99

$

Usually ships in 2-12 days

0

802

$54.99

$

Usually ships in 2-12 days

0

803

Cub Cadet BS-398159

Housing-Starter

$80.99

$

Usually ships in 2-12 days

0

876

Cub Cadet BS-495877

Kit-Spring
(Superseded to BS-696540)

$29.99

$

In Stock, Qty 19

0

896

Cub Cadet BS-94288

Roll Pin
(Superseded to BS-691641)

$4.99

$

Usually ships in 2-12 days

0
