1030 (135B582B100) - Cub Cadet Rear-Engine Riding Mower (1995) Steering And Axle Assembly Parts Diagram

Rear-Engine Riding Mower

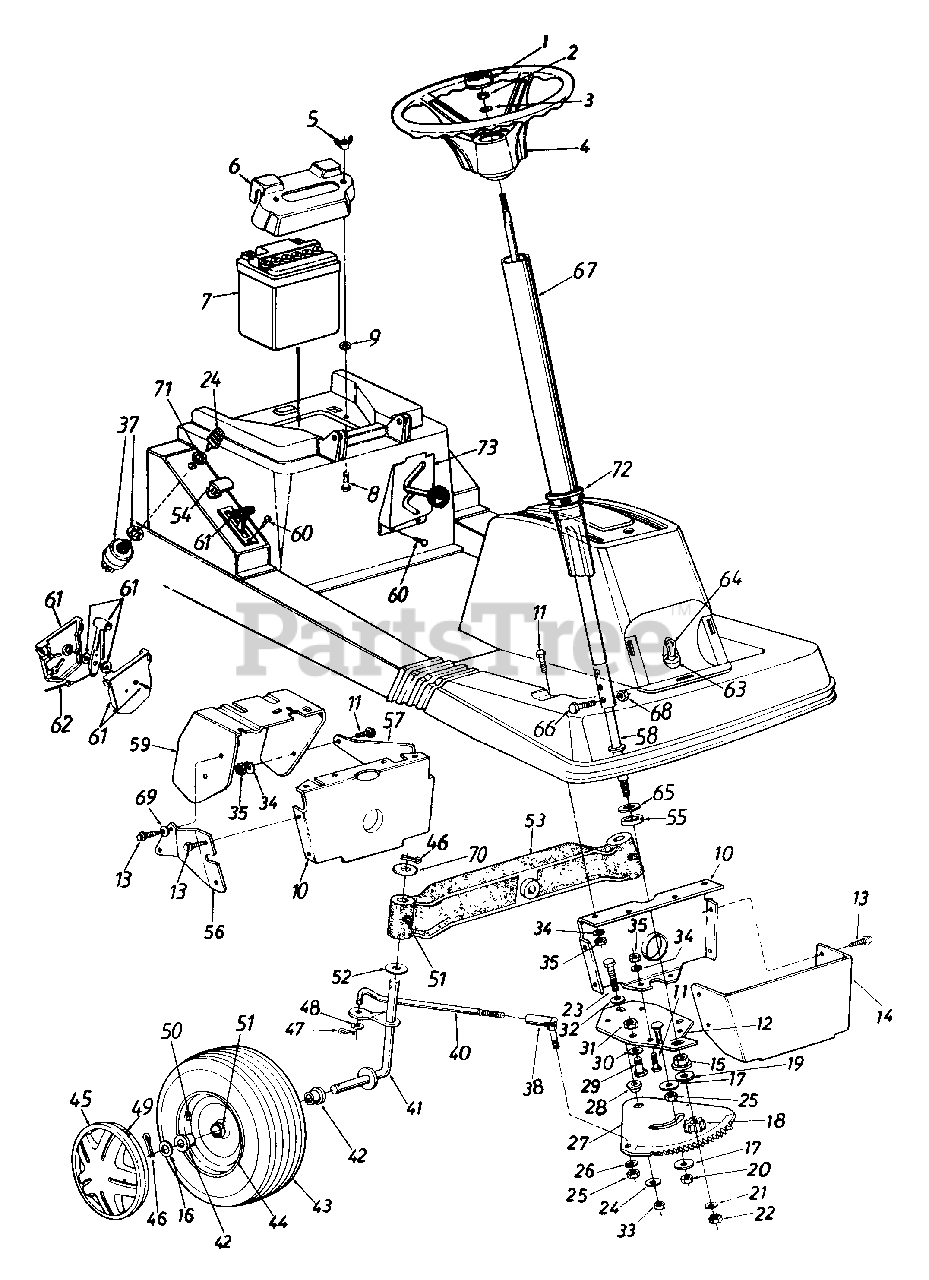

Steering And Axle Assembly Parts Diagram

  • Title

1

Cub Cadet 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

Cub Cadet 712-0237

Hex L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 731-0806A

Steering Wheel Ass'y.
(Superseded to 931-0806A)

$

$

Not available

5

Cub Cadet 712-0113

Wing Nut 1/4-20 Thd. (Nylon)
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 731-0708

Battery Hold Down Cover

$

$

Not available

7

Cub Cadet 725-1633

12V Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 726-0231

Push On Retaining Ring
(Superseded to 926-0106)

$

$

Not available

10

Cub Cadet 15613A

Pivot Bar Bracket

Variations

Cub Cadet 15613A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 683-0033

Steering Gear Support Brkt. Ass'y.

$

$

Not available

13

Cub Cadet 710-0776A

Hex Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 15608

Steering Gear Cover

Variations

Cub Cadet 15608-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 15608-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 15608-0637

COVER-STEE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 15608-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 15608-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

Cub Cadet 15608-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

15

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0285

FI-Wash. .635" I.D. x 1.585"

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0320

FI-Wash. .385" x 1.37" O.D.

$6.99

$

In Stock, Qty 7

0

18

Cub Cadet 748-0290

Steering Pinion Gear
(Superseded to 948-0290)

$

$

Not available

19

Cub Cadet 736-0272

FI-Wash. .510" I.D. x 1.0" O.D.

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0116

Hex L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

21

Cub Cadet 736-0275

FI-Wash. .34" I.D. x .68" O.D.

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

23

Cub Cadet 710-0459

Hex Bolt 3/8-24 x 1.5" Lg. (Gr. 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

24

Cub Cadet 759-3476A

Ignition Key Set
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

26

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 717-0472A

Steering Gear Segment
(Superseded to 917-0472A)

$

$

Not available

28

Cub Cadet 738-0541

Shld. Spacer

$

$

Not available

29

Cub Cadet 710-0689

Hex Bolt (Nylon) 1/2-13 x .75" Lg.

$6.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0160

FI-Wash. .53" I.D. x .93" O.D.

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0105

Bell-Wash. .385" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

UNKNOWN

$

$

Not available

34

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

?36

Cub Cadet 736-0271

Spr. Wash. .32" I.D. x .62" O.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

37

Cub Cadet 725-3163

Ignition Switch
(Superseded to 925-3163)

$48.99

$

In Stock, Qty 20+

0

38

Cub Cadet 723-0156

Ball Joint Ass'y.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

40

Cub Cadet 747-0417

Steering Tie Rod

$

$

Not available

41

Cub Cadet 703-2028

Front Axle Ass'y - R.H.

$

$

Not available

Cub Cadet 703-2027

Front Axle Ass'y. - L.H.

Note: (Not Shown)

$

$

Not available

42

Cub Cadet 741-0353

Wheel Bearing

$11.99

$

In Stock, Qty 20+

0

43

Cub Cadet 734-3089A

Wheel Ass'y. Comp.
(Superseded to 634-0147)

Variations

Cub Cadet 734-3089A-0499

Wheel Assembly, Complete - CUB BEIGE (0499)

$

$

Not available

$

$

Cub Cadet 734-1382

Tire Only
(Superseded to 734-1382-0901)

Variations

Cub Cadet 734-1382-0901

Tire, 11 X 4 X 4 - Carlisle (0901)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1382-0902

Tire, 11 X 4 X 4 - Dico (0902)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 734-1455A

Rim Only

Variations

Cub Cadet 734-1455A-0499

RIM ASSEMBLY: BEIGE - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 734-1455A-0629

RIM - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 734-1455A-0662

RIM - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 734-1455A-0674

RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

45

Cub Cadet 734-1610

Hub Cap
(Superseded to 931-1850)

$

$

Not available

46

Cub Cadet 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.0" Lg.

$3.99

$

In Stock, only 2 left!

0

48

Cub Cadet 736-0300

FI-Wash. .385" I.D. x 87" O.D.

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

50

Cub Cadet 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 737-0211

Grease Fitting
(Superseded to 737-0211A)

$10.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 736-0188

Fl-Wash .76" I.D. x 1.49" O.D.

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 719-3081

Front Pivot Axle

Variations

Cub Cadet 719-3081-0637

AXLE ASSEMBLY-PIVOT (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

54

Cub Cadet 746-3021

Choke Control

$26.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 750-0532

Spacer .985" I.D. x 1.25"
(Superseded to 950-0532)

$

$

Not available

56

Cub Cadet 15694A

Reinforcement Brkt - R.H.

Variations

Cub Cadet 15694A-0637

BRACKET-REINF (RH) - POWDER BLACK (0637)

$

$

Not available

$

$

57

Cub Cadet 15699A

Reinforcement Brkt - L.H.

Variations

Cub Cadet 15699A-0637

BRACKET-REINF (LH) POWDER BLAC - POWDER BLACK (0637)

$

$

Not available

$

$

58

Cub Cadet 738-3089A

Steering End Adapter

$

$

Not available

59

Cub Cadet 603-0072

Clutch Pedal Brkt. Ass'y

Variations

Cub Cadet 603-0072-0637

PEDAL ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

60

Cub Cadet 710-0779A

Truss Mach AB-Tap Scr #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

61

Cub Cadet 831-0823A

Throttle Control Box Ass'y

$32.99

$

In Stock, Qty 20+

0

62

Cub Cadet 746-0775

Throttle Control Wire 22" Lg

$16.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 725-1058A

Headlight Socket
(Superseded to 925-1058A)

$

$

Not available

64

Cub Cadet 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

65

Cub Cadet 736-0187

Fl-Wash. 64" I.D. x 1.24"

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 710-0958

Hex Bolt 1/4-20 x 1.25" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

67

Cub Cadet 703-1911

Steering Shaft Ass'y.

$

$

Not available

68

Cub Cadet 712-0324

Hex L-Nut 1/4-20 Thd

$3.99

$

In Stock, Qty 16

0

69

Cub Cadet 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0315

Fl-Wash. .75" I.D. x 1.5" O.D.

$6.99

$

In Stock, Qty 6

0

71

Cub Cadet 712-3013

Ignition Switch Nut

$

$

Not available

72

Cub Cadet 741-3034

Steering Cover Brg.

$

$

Not available

73

Cub Cadet 703-2266

FNR Index Brkt

$

$

Not available
