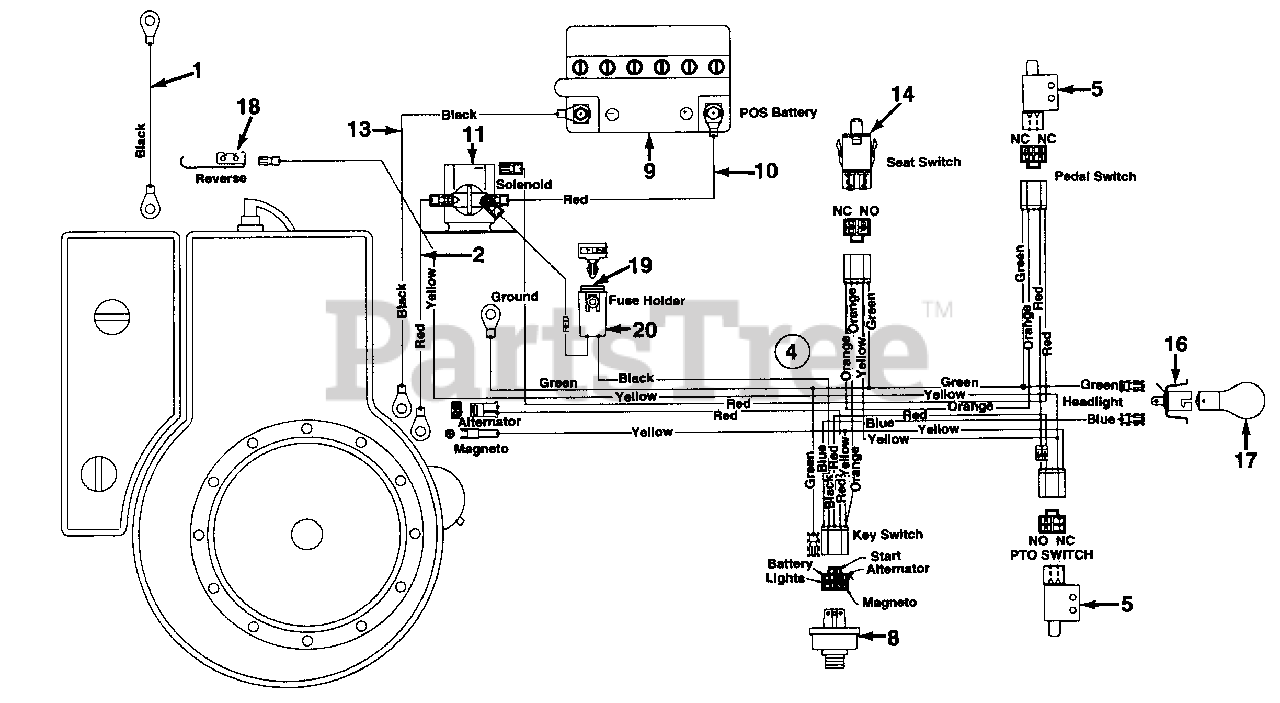

1030 (134B582B100) - Cub Cadet Rear-Engine Riding Mower (1994) Electrical System Parts Diagram

Rear-Engine Riding Mower

Electrical System Parts Diagram

  • Title

1

Cub Cadet 725-0977

Elec. Wire 8 Ga. x 11.5" Lg. (Black)

$

$

Not available

2

Cub Cadet 725-0424

Elec. Wire 8 Ga. x 15.5" Lg. (Red)

$

$

Not available

4

Cub Cadet 725-3227

Wire Harness

$

$

Not available

5

Cub Cadet 725-3169A

Safety Switch
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

8

Cub Cadet 725-3163

Ignition Switch
(Superseded to 925-3163)

$48.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-1633

Battery 12V
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 725-0929

Elec. Wire 8 Ga. x 22" Lg. (Red w/Boot)

$

$

Not available

11

Cub Cadet 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

13

Cub Cadet 725-0979

Elec. Wire 8 Ga. x 17" Lg. (Black)

$

$

Not available

14

Cub Cadet 725-1441

Seat Switch

$

$

Not available

16

Cub Cadet 725-1058A

Headlight Socket
(Superseded to 925-1058A)

$

$

Not available

17

Cub Cadet 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet 732-0615

Safety Switch

$

$

Not available

19

Cub Cadet 725-1625

Fuse, Automotive Type 7-1/2 Amp.

$8.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 729-0207

Fuse Holder

$

$

Not available

Cub Cadet 729-0209

Fuse Holder Mtg. Clip

Note: Not Shown

$

$

Not available
